48 AUX TRIGGER 6 (OUT)
49 AUX TRIGGER 7 (OUT)
50 AUX TRIGGER 8 (OUT)
51 BROWN (18) LOCKOUT SIGNAL +12V (IN)
52 W HITE
(18)
WATER HEATER GROUND
53 BROWN (18) WATER HEATER ON (GAS)
54 ORANGE (18) WATER HEATER ON (ELECTRIC)
55 PINK (18) WATER HEATER FAULT
56 BLUE (14) WATER PUMP +12V (OUT)
57 WHITE (14) WATER PUMP -12V (IN/OUT)
58 BLUE (14) WATER PUMP +12V (OUT)
59 WHITE (14) AWNING 2 -12V (OUT)
60 YELLOW (14) AWNING 2 +12V (OUT)
61 WHITE (14) AWNING 1 -12V (OUT)
62 YELLOW (14) AWNING 1 +12V (OUT)
63 (10) REAR JACKS (OUT)
64 (10) REAR JACKS (OUT)

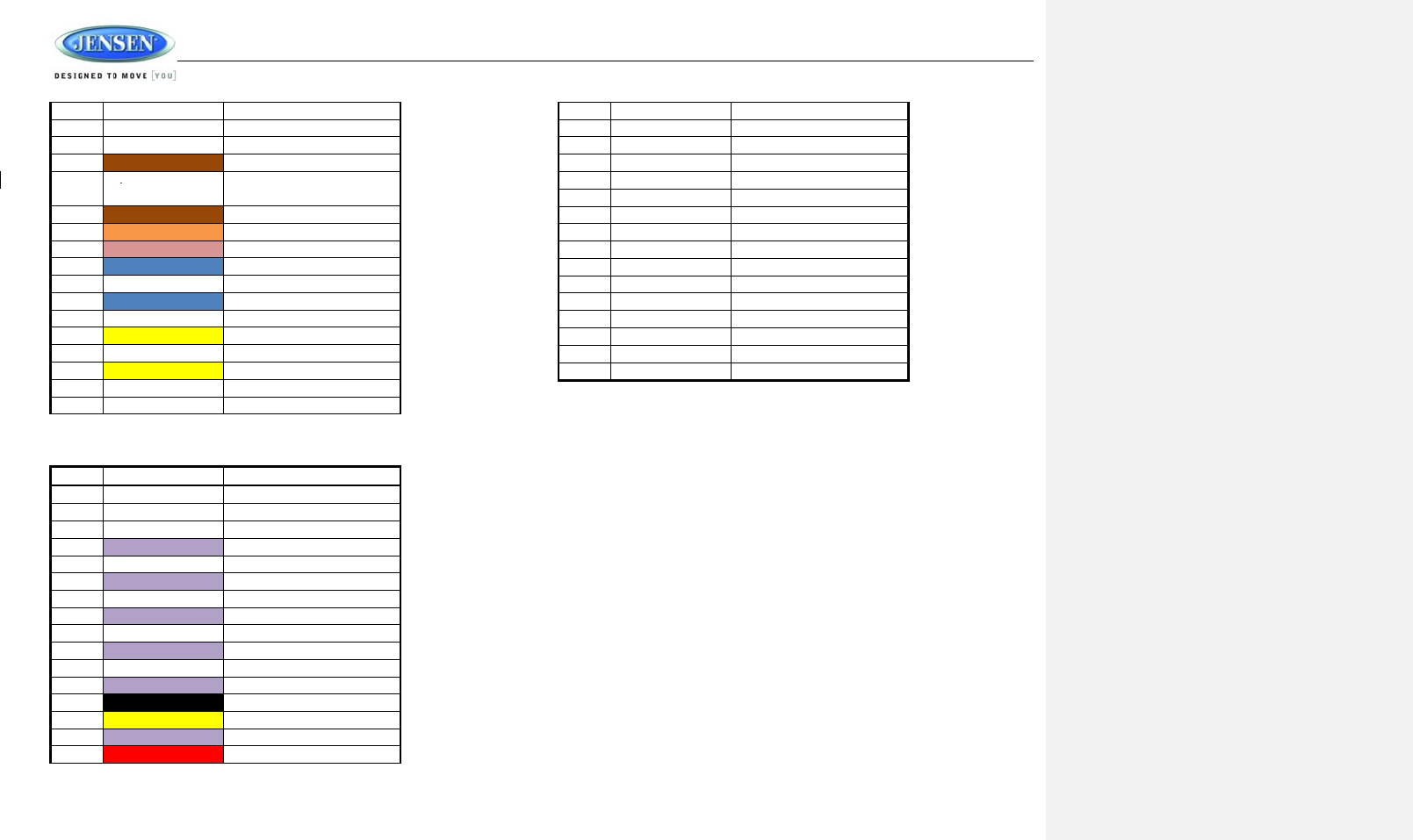

BODY CONTROL MODULE (BCM) CONNECTIONS
PIN NO. WIRE COLOR/SIZE DESCRIPTION
65 (10) FRONT JACKS (OUT)
66 (10) FRONT JACKS (OUT)
67 WHITE (10) ELECTRIC SLIDE 5 -12V (OUT)
68 PURPLE (10) ELECTRIC SLIDE 5 +12V (OUT)
69 WHITE (10) ELECTRIC SLIDE 4 -12V (OUT)
70 PURPLE (10) ELECTRIC SLIDE 4 +12V (OUT)
71 WHITE (10) ELECTRIC SLIDE 3 -12V (OUT)
72 PURPLE (10) ELECTRIC SLIDE 3 +12V (OUT)
73 WHITE (10) ELECTRIC SLIDE 2 -12V (OUT)
74 PURPLE (10) ELECTRIC SLIDE 2 +12V (OUT)
75 WHITE (10) ELECTRIC SLIDE 1 -12V (OUT)
76 PURPLE (10) ELECTRIC SLIDE 1 +12V (OUT)
77 BLACK (10) CHASSIE GROUND (IN)
78 YELLOW (14) AWNING +12V (IN)
79 PURPLE (10) ELECTRIC SLIDE +12V (IN)
80 RED (10) BCM +12V (IN)
