WIRING
The wiring diagram depicts all the wiring connections required for proper operation of the unit.
DETAIL A

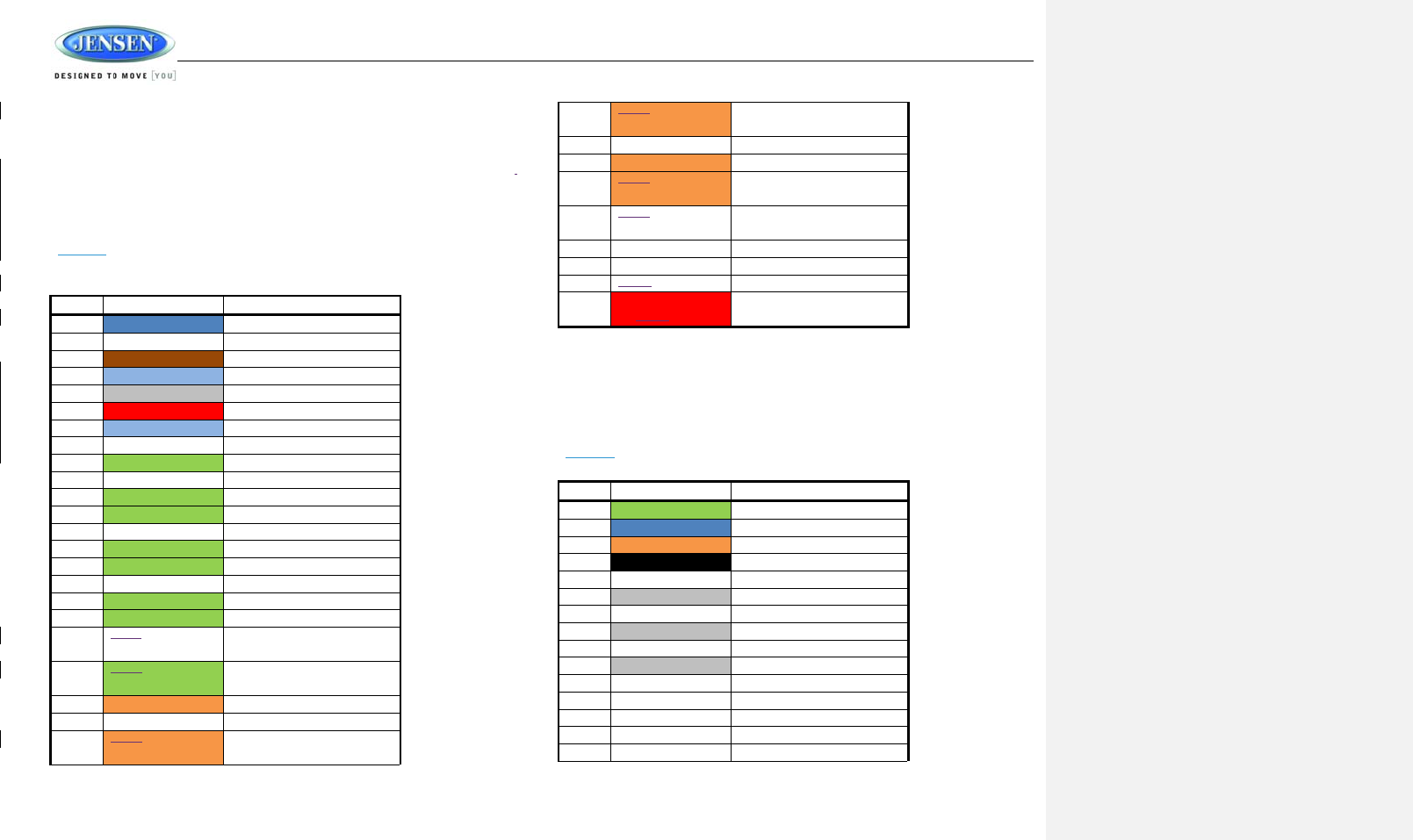

BODY CONTROL MODULE (BCM) CONNECTIONS
PIN NO. WIRE COLOR/SIZE DESCRIPTION
1 BLUE (18) FRESH TANK 1 (IN)
2 FRESH TANK 2 (IN)
3 BROWN (18) BLACK TANK 1 (IN)
4 LIGHT BLUE (18) BLACK TANK 2 (IN)
5 GRAY (18) GRAY TANK 1 (IN)
6 RED (18) GRAY TANK 2 (IN)
7 LIGHT BLUE (18) GRAY TANK 3 (IN)
8 WHITE (18) TANK SENSOR GROUND (IN)
9 GREEN (14) LIGHT GROUP 1 + (IN)
10 WHITE (14) LIGHT GROUP 1 - (IN/OUT)
11 GREEN (14) LIGHT GROUP 1 + (OUT)
12 GREEN (14) LIGHT GROUP 2 + (IN)
13 WHITE (14) LIGHT GROUP 2 - (IN/OUT)
14 GREEN (14) LIGHT GROUP 2 + (OUT)
15 GREEN (14) LIGHT GROUP 3 + (IN)
16 WHITE (14) LIGHT GROUP 3 – (IN/OUT)
17 GREEN (14) LIGHT GROUP 3 + (OUT)
18 GREEN (14) LIGHT GROUP 4 + (IN)
19 LIGHT WHITE
(14)
LIGHT GROUP 4 - (IN/OUT)
20 LIGHT GREEN
(14)
LIGHT GROUP 4 + (OUT)
21 ORANGE (14) EXTERIOR LIGHTS + (IN)
22 WHITE (14) EXTERIOR LIGHTS - (IN/OUT)
23 LIGHT ORANGE
(14)
EXTERIOR LIGHTS + (OUT)
24 LIGHT ORANGE
(14)
SECURITY LIGHTS + (IN)
25 WHITE (14) SECURITY LIGHTS - (IN/OUT)
26 ORANGE (14) SECURITY LIGHTS + (OUT)
27 LIGHT ORANGE
(14)
AWNING LIGHTS + (OUT)
28 LIGHT WHITE
(14)
AWNING LIGHTS - (OUT)
29 AUX FUEL TANK + (IN)
30 AUX FUEL TANK - (OUT)
31 LIGHT AUX TRIGGER 1 (OUT)
32 RED
(18)LIGHT
GEN START +12V (OUT)
DETAIL A
BODY CONTROL MODULE (BCM) CONNECTIONS
PIN NO. WIRE COLOR/SIZE DESCRIPTION
33 GREEN (18) GEN PRIME/STOP +12V (OUT)
34 BLUE (18) GEN SERVICE +12V (IN)
35 ORANGE (18) GEN HOUR METER +12V (IN)
36 BLACK (14) GEN FUEL TANK LEVEL (IN)
37 RED(14)/BROWN (18) GEN GROUND
38 GRAY (16) LANDING GEAR +12V (OUT)
39 WHITE (16) LANDING GEAR GROUND (OUT)
40 GRAY (16) HYDRAULIC VALVE EXTEND
41 WHITE (16) HYDRAULIC VALVE RETRACT
42 GRAY (16) HYDRAULIC VALVE +12V
43 WHITE (16) HYDRAULIC VALVE GROUND
44 AUX TRIGGER 2 (OUT)
45 AUX TRIGGER 3 (OUT)
46 AUX TRIGGER 4 (OUT)
47 AUX TRIGGER 5 (OUT)
