Installation Guide

ManualsBrandsSymmons ManualsPlumbingDia 1-Handle Wall-Mounted Shower Trim Kit in Brushed Bronze (Valve Not Included)

2-7/8

½"

(72 mm

13 mm)

7-3/4" dia

(197 mm)

nished wall

Floor

hot / cold

supply

showerhead

supply

5/8" (16 mm)

2-1/2" dia

(64 mm)

tub spout

supply plug

1/2"-14 NPT

mounting plate

p/n T-177

Note (1)

Temptrol

control valve

Notes:

(1) Walls for using T-177 mounting plate (MP)

■ Wall is 1/16" (2 mm) min • 1/2" (13 mm) max

■ Fiber or acrylic walls (MP required)

■ Plaster or other type walls 1/2" or less (MP optional)

■ Protective shield usage (optional)

(2) Dry wall, plaster or other type walls 1/2" or greater

■ Protective shield is required; snaps on end of valve spindle...

(3) Dimensions subject to change without notice

Wall cutout hole size

3-1/2" (89 mm) min

4" (101 mm) min

approx

27"

(686 mm)

approx

48"

(1219 mm)

Finished wall to rear of valve

3-1/2"

1/2" (89 mm

13 mm

Finished wall to pipe centerline

2-3/8"

1/2" (60 mm

13 mm)

*See note (2)

Protective

Shield

p/n T-176

6-5/8" ±1/2"

(167 mm ±13 mm)

5-1/4"

(133 mm)

(76 mm)

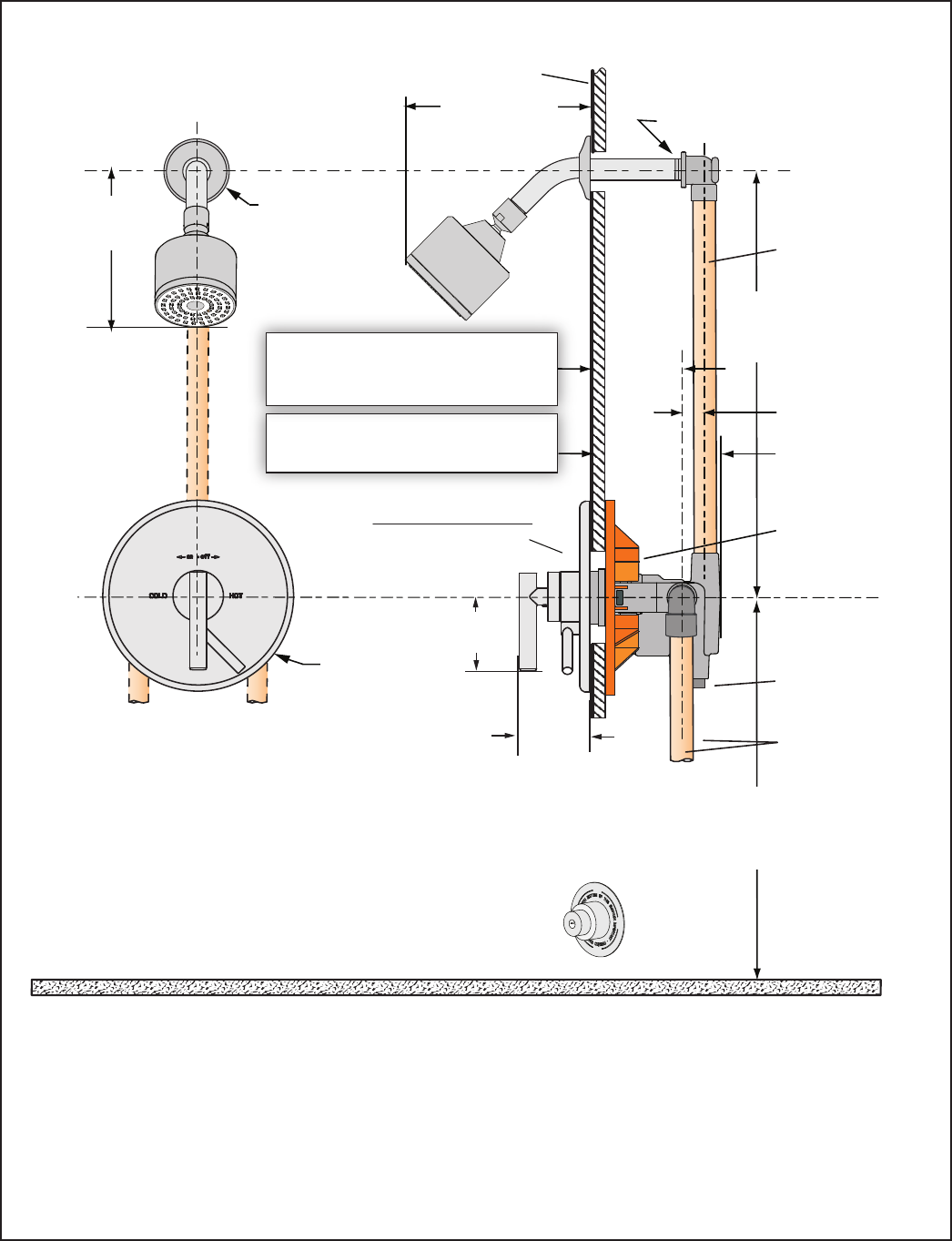

Dimensions Dia Shower System, S-3501-CYL-B
