AP-51xx Access Point Product Reference Guide
B-14

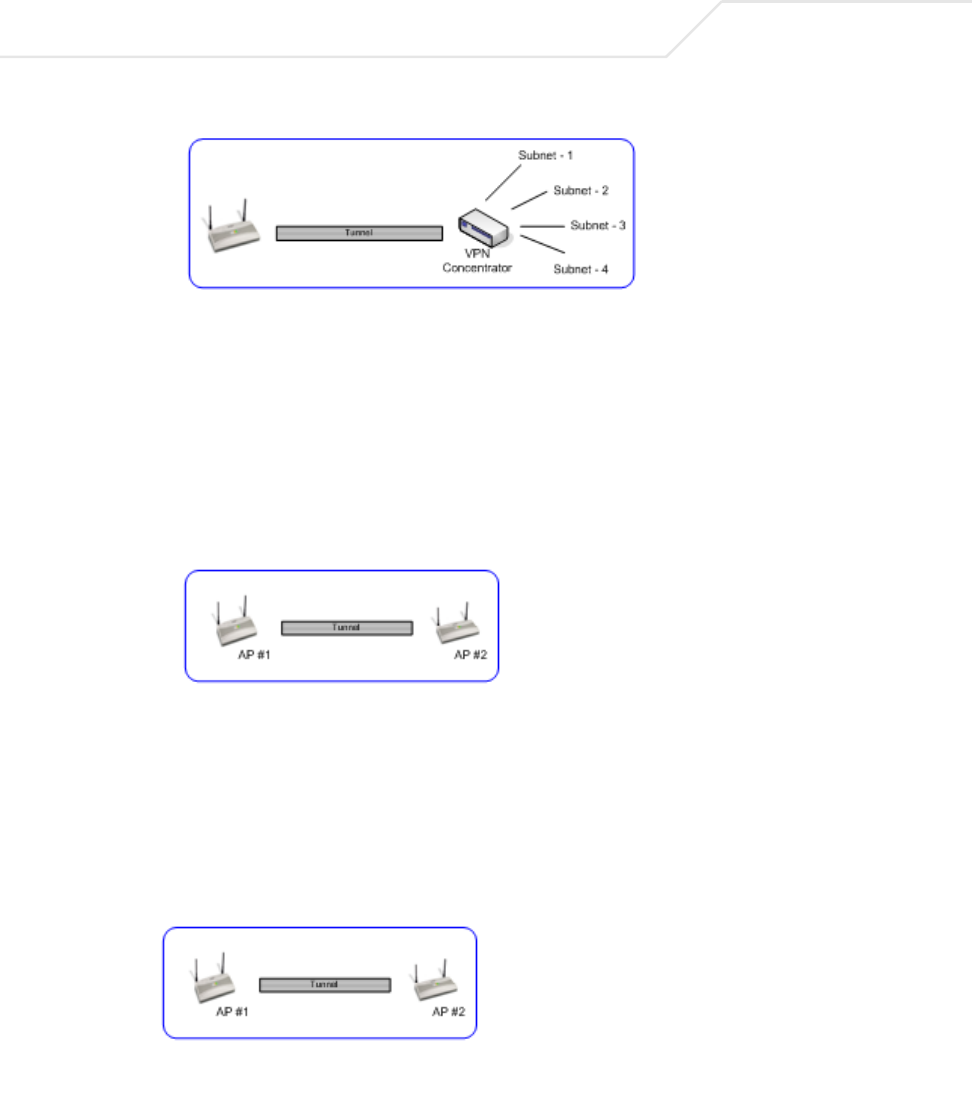

• Question 2: Even if a wildcard entry of "0.0.0.0" is entered in the Remote Subnet
field in the VPN configuration page, can the AP access multiple subnets on the
other end of a VPN concentrator for the APs LAN/WAN side?
No. Using a "0.0.0.0" wildcard is an unsupported configuration. In order to access multiple
subnets, the steps in Question #1 must be followed.
• Question 3: Can the AP be accessed via its LAN interface of AP#1 from the local
subnet of AP#2 and vice versa?
Yes.
• Question 4: Will the default "Manual Key Exchange" settings work without making
any changes?
No. Changes need to be made. Enter Inbound and Outbound ESP Encryption keys on both
APs. Each one should be of 16 Hex characters (depending on the encryption or
authentication scheme used). The VPN tunnel can be established only when these
corresponding keys match. Ensure the Inbound/Outbound SPI and ESP Authentication Keys
have been properly specified.
• Question 5: Can a tunnel between an access point and a WS2000 be established?
