Usage Scenarios
B-9
For this usage scenario, the following components are required:
• 2 AP-5131 or AP-5181 model access points
• 1 PC on each side of the access point’s LAN.
To configure a VPN tunnel between two access points:
1. Ensure the WAN ports are connected via the internet.

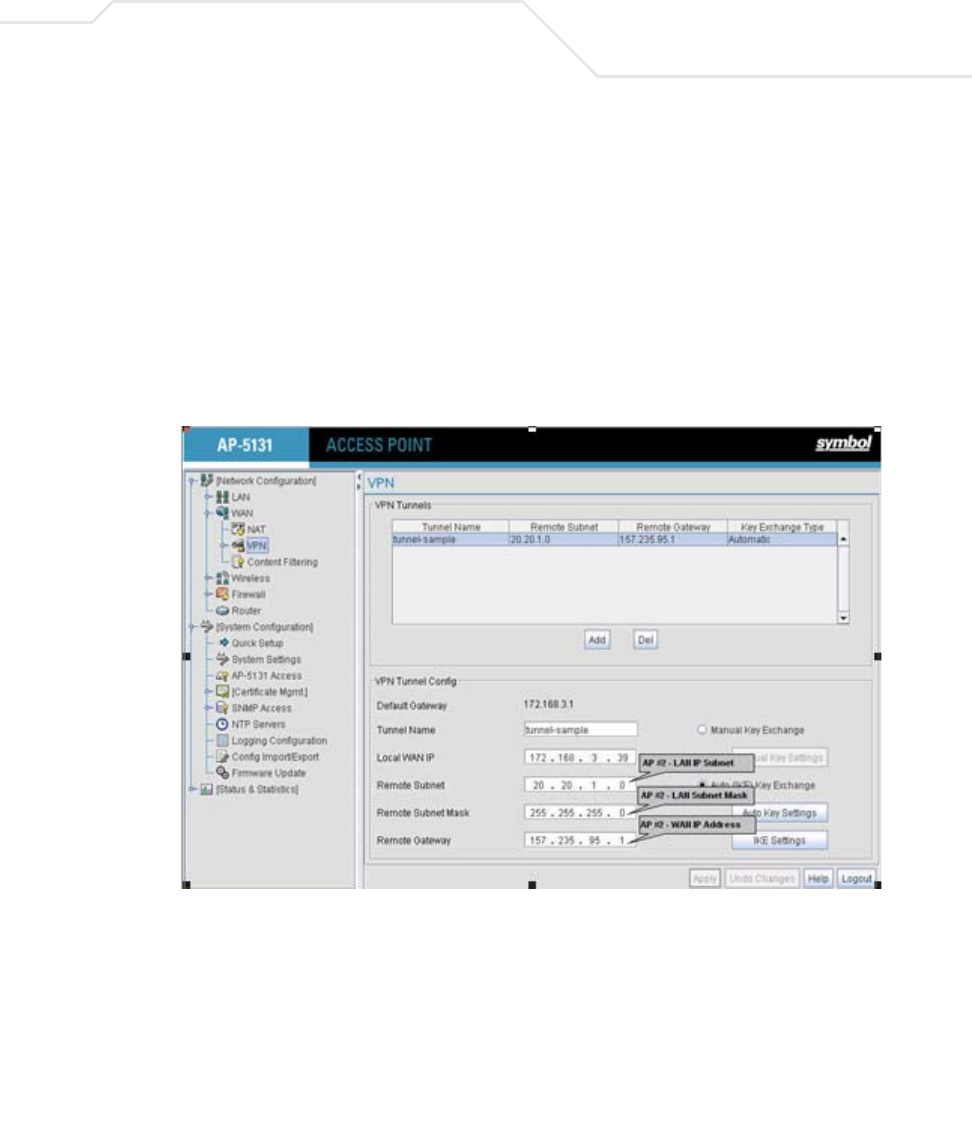

2. On access point #1, select WAN -> VPN from the main menu tree.
3. Click Add to add the tunnel to the list.
4. Enter a tunnel name (tunnel names do not need to match).
5. Enter the WAN port IP address of AP #1 for the Local WAN IP.
6. Within the Remote Subnet and Remote Subnet Mask fields, enter the LAN IP subnet and
mask of AP #2 /Device #2.
7. Enter the WAN port IP address of AP #2/ Device #2 for a Remote Gateway.
8. Click Apply to save the changes.
