AP-51xx Access Point Product Reference Guide
B-8
B.1.2.2 BootP Priorities

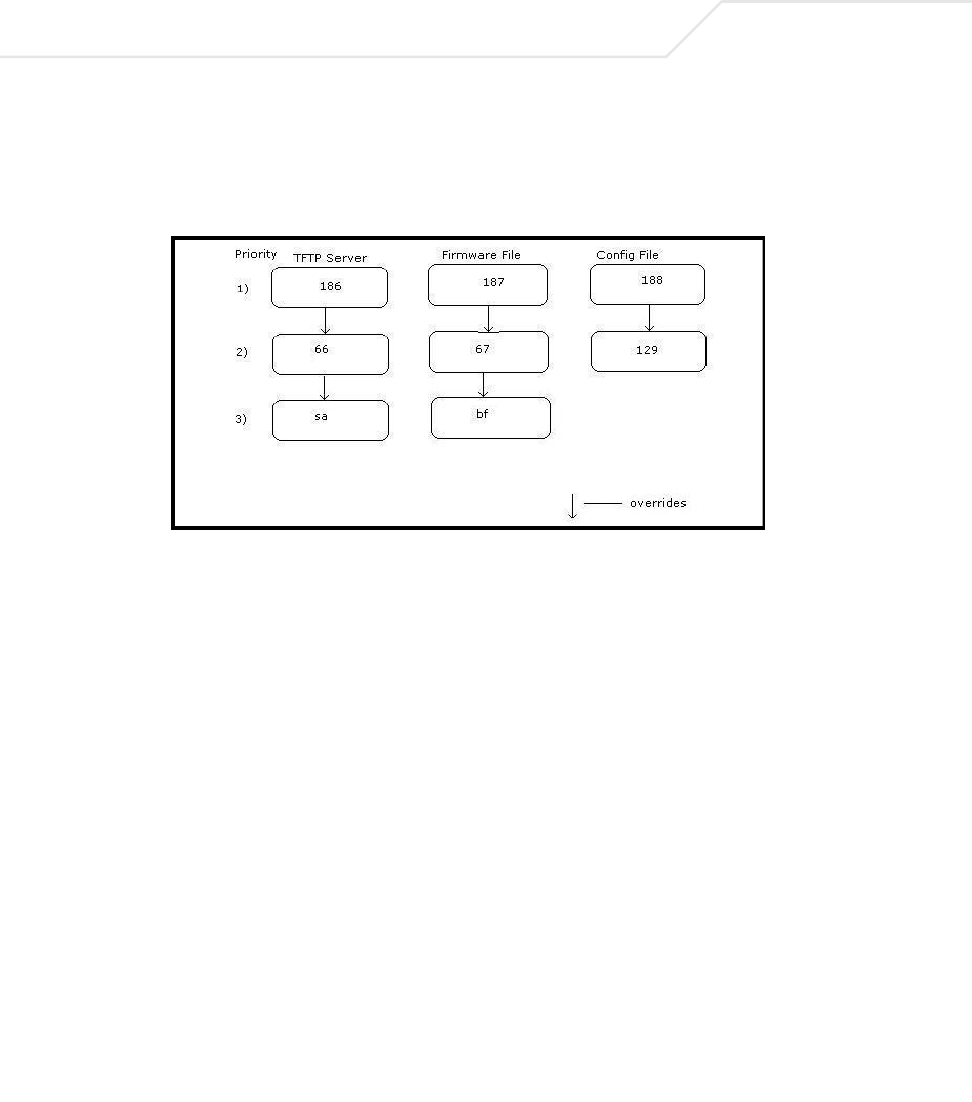

The following flowchart displays the priorities used by the access point when the BootP server is
configured for multiple options:
If the BootP Server is configured for options 186 and 66 (to assign TFTP server IP addresses) the
access point uses the IP address configured for option 186. Similarly, if the BootP Server is configured
for options 188 and 129 (for the configuration file) the access point uses the file name configured for
option 188.
B.2 Configuring an IPSEC Tunnel and VPN FAQs
The access point has the capability to create a tunnel between an access point and a VPN endpoint.
The access point can also create a tunnel from one access point to another access point.
The following instruction assumes the reader is familiar with basic IPSEC and VPN terminology and
technology.
• Configuring a VPN Tunnel Between Two Access Points
• Configuring a Cisco VPN Device
• Frequently Asked VPN Questions
B.2.1 Configuring a VPN Tunnel Between Two Access Points
The access point can connect to a non-AP device supporting IPSec, such as a Cisco VPN device -
labeled as "Device #2".
