Configuring Mesh Networking
9-31

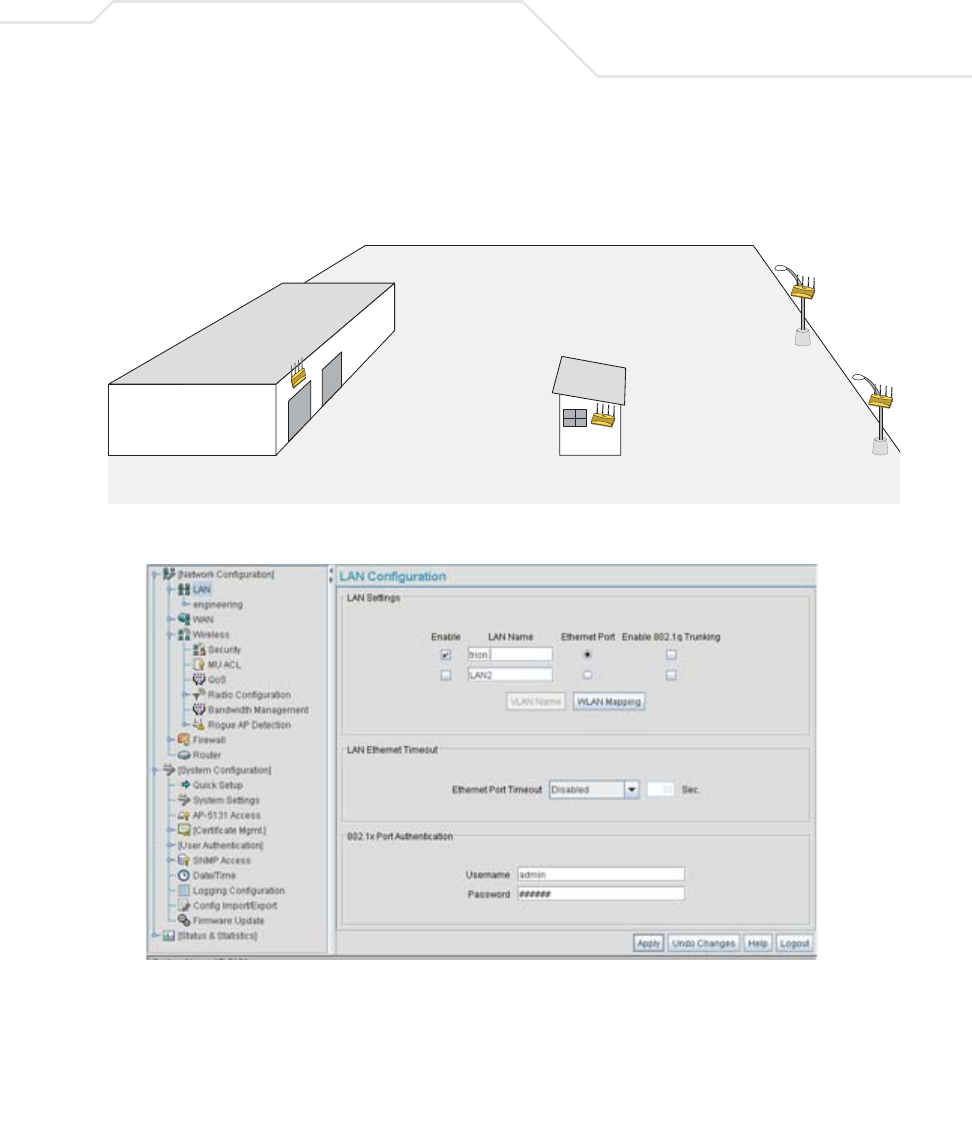

broadcast range (see the illustration below). The Trion IT department follows the
instructions in Wall Mounted Installations on page 2-14 to install AP3 and AP4.
3. The Trion IT department selects Network Configuration -> LAN from the AP-5131 menu
tree.
4. The Trion IT department verifies the LAN used to support the mesh network is enabled for
both AP3 and AP4, (by selecting the Enable checkbox).
5. The Trion IT department then selects Network Configuration -> LAN -> trion from the
AP-5131 menu tree.
6. The IT team selects the Mesh STP Configuration button on the bottom of the screen.
AP1
AP2
AP3
AP4
