Configuring Mesh Networking
9-23

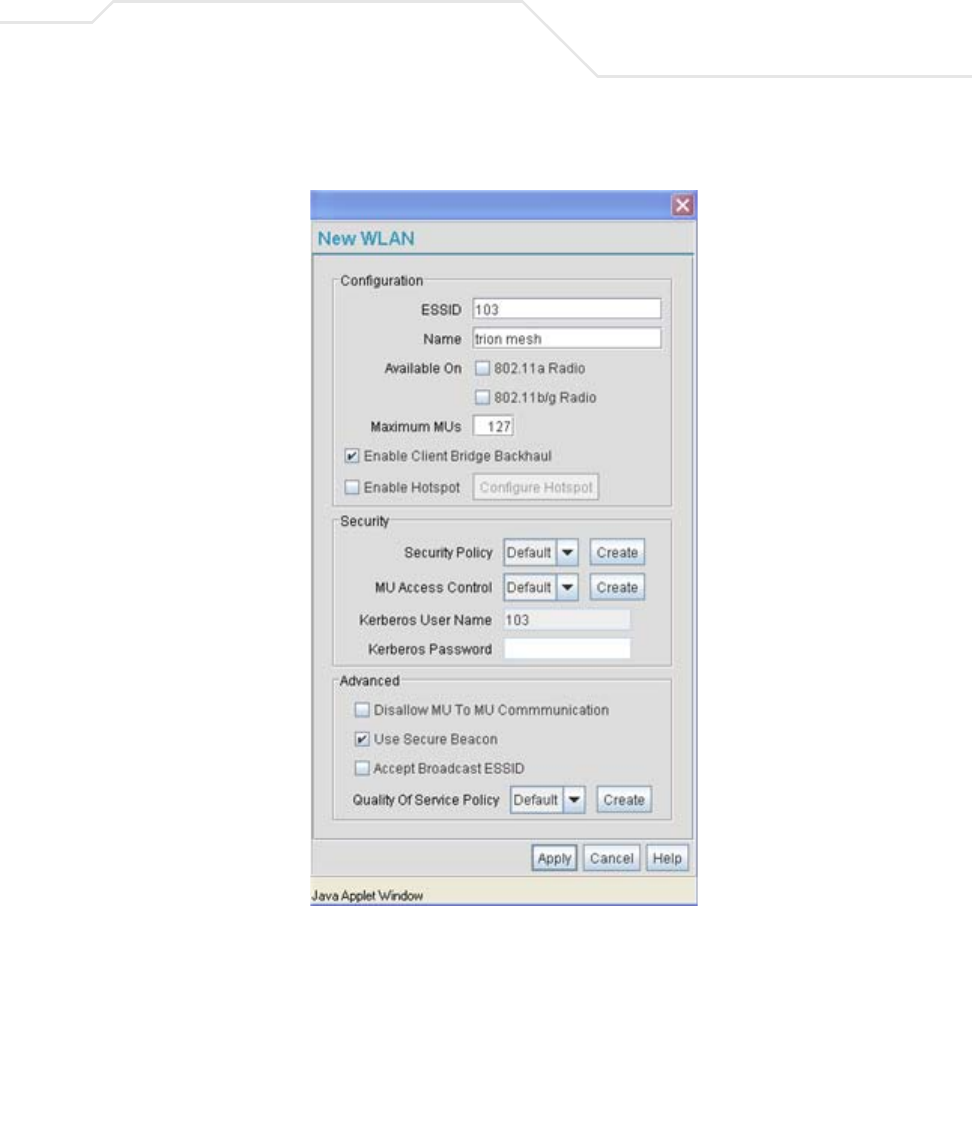

10. The team selects the Edit button to revise (and rename) the existing WLAN specifically
to support mesh networking.
11. The Trion IT team assigns the WLAN a unique ESSID (103) used by each new base bridge,
client bridge and repeater joining the mesh network.
12. The team assigns the name of “trion mesh” to the WLAN so it will not be confused with
other WLANs used in other areas of the Trion facility. This name also serves to associate the
name of the WLAN with its intended mesh network utilization of data. entry within the
shipping yard
