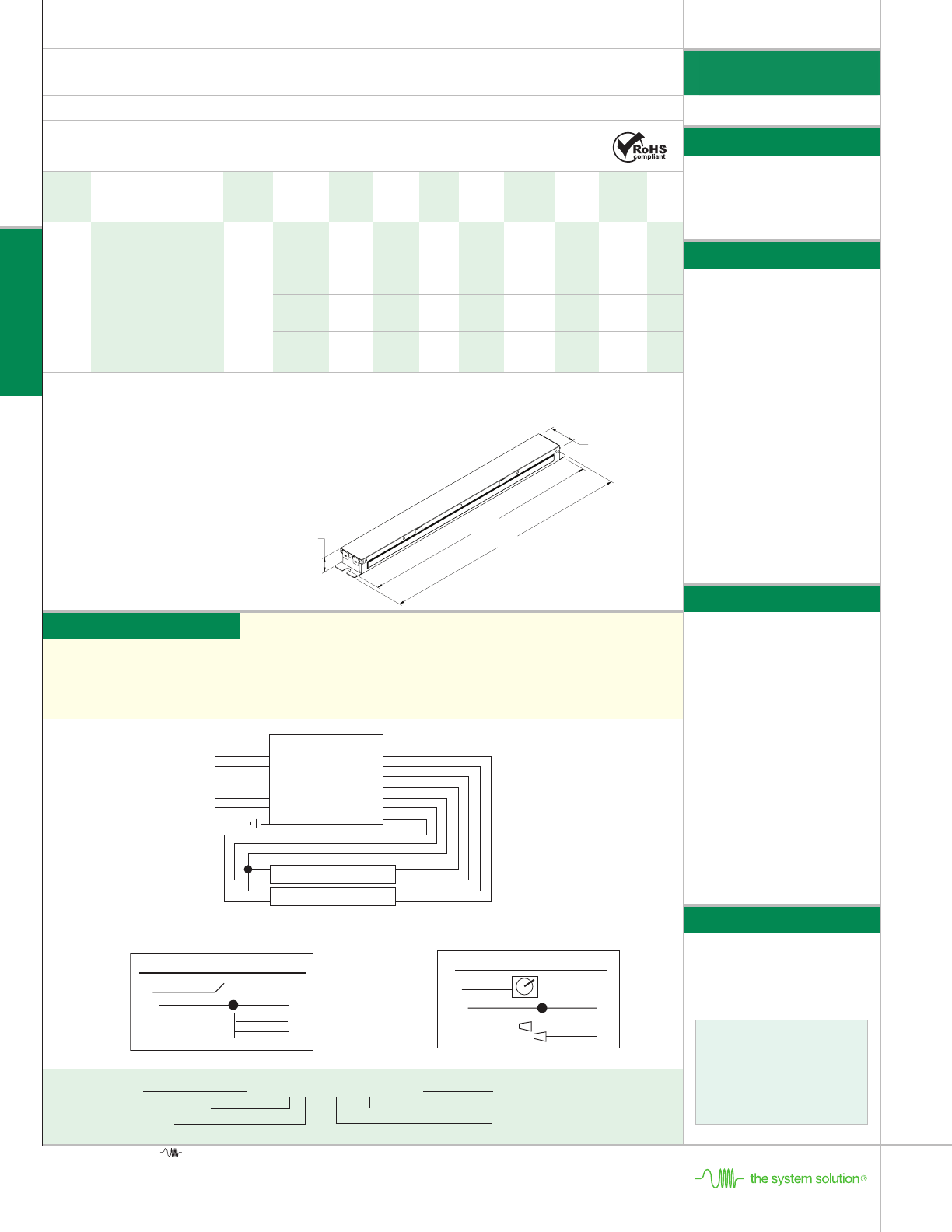

SPECIFICATION DATA
P O W E R S E N S E
T 5 D I M
Performance Guide
High Efficiency Electronic T5 Fluorescent Controllable Lighting Systems
Input Input Rated
1,2
Ballast
2
Input
2
System
Item Voltage Current Lamp Lumens No. of Factor System
2
Power Efficacy
Number Description (VAC) (AMPS) Type (lm) Lamps (BF) Lumens (Watts) (lm/W) BEF
3
50726 QTP 2x28T5/UNV DIM-TCL 120-277 0.53/0.23 FP28 2900 2 1.00 5800 64/62 91/93 1.61
0.01 58 10
0.67/0.29 FP35 3650 2 1.00 7300 81/79 90/92 1.27
0.01 73 10
0.40/0.18 FP21 2100 2 1.00 4200 49 86 2.04
0.01 42 9
0.29/0.13 FP14 1350 2 1.00 2700 34 79 2.94
0.01 27 8
1: Rated lamp lumens and performance data based on PENTRON lamps.
2: At 35°C lamp ambient temperature.
3: Ballast Efficiency Factor (BEF) shown = (Ballast Factor x 100) divided by Input Power (note: calculation based on lowest wattage value)
Item Number 50726 QTP 2 x 28T5 / UNV DIM-TCL
QUICKTRONIC PROFESSIONAL
Number of Lamps (2)
System Type - DIMMING/Case Size
Line Voltage (120-277V)
Primary Lamp Wattage
System Life / Warranty
QUICKTRONIC products are covered by the
QUICK 60+
®
warranty, a comprehensive
lamp and ballast system warranty. For
additional details, refer to the QUICK 60+
warranty bulletin.
Data shown based upon SYLVANIA
PENTRON
®
lamp(s). QUICKTRONIC
®
POWERSENSE ballasts are also compatible
with other lamp manufacturers equivalent
lamp types that meet ANSI specifications.
T5 POWERSENSE
®
High Efficiency
OSRAM SYLVANIA
National Customer
Service and Sales Center
1-800-LIGHTBULB
(1-800-544-4828)
www.sylvania.com
Input & Control Wiring Options:
POWERLINE CONTROL
LOW-VOLTAGE CONTROL
LINE
BLACK
NEUTRAL
WHITE
INSULATE
UNUSED LEADS
VIOLET
(+)
GREY (-)
VIOLET (+)
GREY (-)
LINE
BLACK
NEUTRAL
WHITE
0-10V DC
< 0.5 m A
Class 1 or
Class 2
POWERLINE CONTROL
LOW-VOLTAGE CONTROL
LINE
BLACK
NEUTRAL
WHITE
INSULATE
UNUSED LEADS
VIOLET
(+)
GREY (-)
VIOLET (+)
GREY (-)
LINE
BLACK
NEUTRAL
WHITE
0-10V DC
< 0.5 m A
Class 1 or
Class 2
SYLVANIA, PENTRON, QUICKSENSE, the system solution, QUICK60+, PROStart, POWERSENSE and See the World in a New Light are registered trademarks of OSRAM SYLVANIA Inc.
ELOGIC is a trademark of OSRAM SYLVANIA Inc. QUICKTRONIC is a registered trademark of OSRAM GmbH.
©2011 OSRAM SYLVANIA
Specifications subject to change without notice.
Black
White
Black
White
Violet (+)
Grey (-)
Violet (+)
Grey (-)
Red
Red
Red
Red
Blue
Blue
Blue
Blue
LAMP 1
Yel/Blk
Yellow
Yellow
LAMP 1
LAMP 1
ELECTRONIC
BALLAST
ELECTRONIC
BALLAST
LAMP 2
2 lamp
Height
25.4mm
(1.0")
Mounting
411.3mm
(16.2")
Length
425mm
(16.7")
Width
43mm
(1.68")
QTP2x28T5/UNV DIM TCL
Output Wiring: Lamp wiring for dimming ballasts can differ significantly from non-dimming
ballasts and from other manufacturers dimming ballasts. Take care to connect lamp lead
wires as shown on the applicable ballast diagram.
Lamp Seasoning: For optimal performance, fluorescent lamps may require seasoning for up to 12 hours prior to low temperature
starting & low level dimming. Refer to NEMA LSD 23-2002 Lighting Systems Division: Recommended Practice — Lamp Seasoning for
Fluorescent Dimming Systems
Installation Notes
Specifications
Data based on FP28
Starting Method: Programmed Rapid Start
Circuit Type: Series
Lamp Frequency: >40kHz
Lamp CCF: Less than 1.7
Starting Temp: 50°F/10°C minimum
Input Voltage: 120-277V, ±10%
Input Frequency: 50/60 Hz
THD: <10% @ Full Output
Power Factor: >98% @ Full Output
UL Listed Class P, Type 1 Outdoor
CSA or C/UL Certified
70°C Max Case Temperature
FCC 47CFR Part 18 Non-Consumer
Class A Sound Rating
RoHS Compliant
4
ANSI C62.41 Cat. A Transient Protection
No Remote or Tandem Wiring
4 Complies with European Union Restriction of
Hazardous Substances Directive.
Control Information
QUICKTRONIC POWERSENSE ballasts
are compatible with a wide range of
low voltage (0-10VDC) and power line
fluorescent controllers available from
various manufacturers.
Low Voltage Control Specs: Ballast will
source up to 0.5mA for 0-10VDC control
purposes. May be wired as a Class 1 or
Class 2 circuit-consult Local and National
Electrical Codes.
Power Line Control Specs: Specification-
grade fluorescent controls are available
for 120V or 277V operation of controllable
analog electronic fluorescent ballasts.
Controls must be suitably rated for both the
type (e.g. Fluorescent Phase-control) and
size (e.g. 600W) of the connected load.
Dimensions:
2 lamp enclosure
Overall: 16.7" L x 1.68" W x 1.0" H (425 x 43 x 25 mm)
Mounting:16.2" (411 mm)
Weight: 2.1 lbs each (950 g)
Wiring:
Leads Only
