Generating an annotated schema for Microsoft SQL Server 2000
218 PowerDesigner
To generate an annotated schema by mapping through the XML
Builder Wizard:
1 In the PDM menu bar, select Tools→XML Builder Wizard.

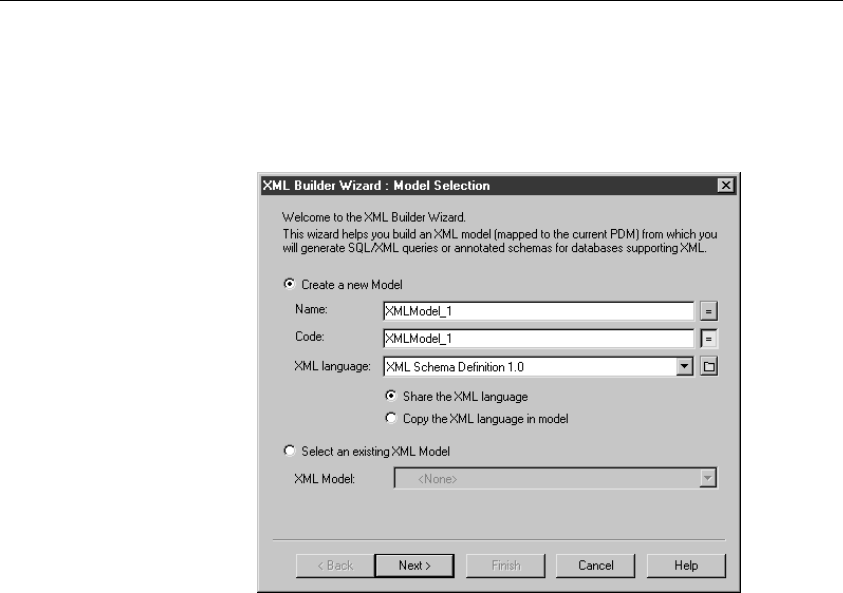

The Model Selection dialog box appears.
2 Select the new model option. Type a name and a code for the new
model, and select XML Schema Definition 1.0 or XML-Data Reduced
1.0 in the XML language dropdown listbox.
or
Select the existing model option. Select a model in the XML Model
dropdown listbox. This model must be targeted with XSD or XDR.
3 Click Next.
