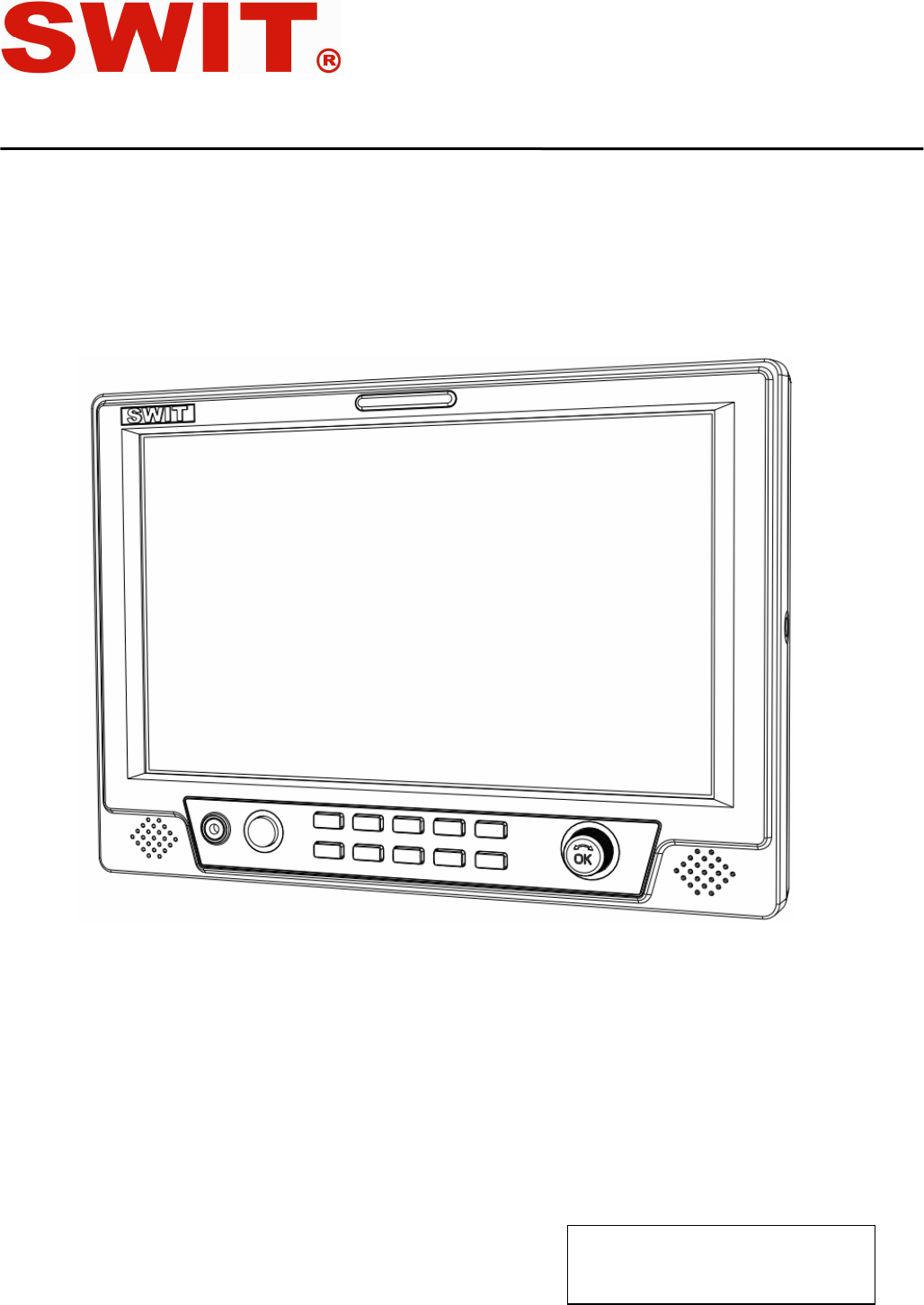

Model: S-1090H 9" Broadcast On-camera 3GSDI&HDMI LCD Monitor User Manual Please read this User Manual throughout before using.
Preface Congratulations on your purchase of this product. Please read this user manual carefully. 1 ． All internal technologies of this product are protected, including device, software and trademark. Reproduction in whole or in part without written permission is prohibited. 2 ． All brands and trademarks of SWIT Electronics Co., Ltd. are protected and other relative trademarks in this user manual are the property of their respective owners.
Maintenance The Monitor 1. Please keep the signal terminals and the cooling vent away from knife-edge, metal or liquid in order to avoid short-circuit and damage. 2. Please don't try to disassemble any parts of the monitor by yourself, which would probably damage the monitor and do harm to human body, and it will cause the invalidation of product warranty. 3. Please don't touch the screen with your fingers, which would probably deface the screen. 4.
1. Features ◆ High resolution LCD Panel 9-inch, 16:9, 1280×800, 16.77 million colors ◆ LCD Protective Glass Applied protective glass onto the LCD surface ◆ 3Gbps SDI support Accept 3G/HD/SD-SDI input ◆ SDI 1080psf supported Support SMPTE-RP211 format: 1080psf (30 / 29.97 / 25 / 24 / 23.98) ◆ Multi Input/Output Support SDI, HDMI, CVBS input and loop through output ◆ SDI embedded audio output Convert SDI embedded audio to analog and output via speaker or 3.5mm earphone jack.
2. Panel Instruction Front view ⑴ PHONE: Earphone jack, for SDI embedded audio, HDMI embedded audio and analog audio monitoring ⑵ POWER: Power on/off Connect with power cable, press the “POWER” and the power indicator is turned on and after 10 seconds, the monitor will be switched on and get into normal working status. Press the “POWER” again, the indicator is turned off and monitor is switched off. Disconnect with power cable or battery if the monitor will not be used for a period of time.
Rear view ⑴ DC 12V IN: Connect with DC12V 4-pin XLR power adapter. (Pin 1: Negative, Pin 4: Positive) ⑵ Battery mount connector: ⑶ ⑷ ⑸ ⑹ ⑺ ⑻ ⑼ ⑽ ⑾ ⑿ Connect with SWIT S-7004 series quick release DV mounts, and then mount corresponding DV batteries. See details in “Optional Battery Mount”.
3. Menu Operation ⑴ Press “MENU” and it will display menu system ⑵ Revolve “ENTER” to select an item. The selected item will be highlighted display. ⑶ Press “ENTER” to enter the selected item. ⑷ Under menu system, press “MENU” to back to previous menu. *The menu will automatically save and quit if it remains idle. 3.
3.4 TITLE submenu Revolve "ENTER" button to select the letters, and press "ENTER" to input. Select SPACE to input space and DEL to delete the left letter. Max 10 letters are supported. After setting, press "MENU", the system will save data to current user and quit menu. The menu will automatically save and quit if it remains idle. 3.5 DISPLAY submenu The DISPLAY submenu is to select the items to be displayed on screen when ‘DISPLAY” button is pressed.
4. TALLY Light Operation There are front and rear TALLY lights on the monitor, which can display RED, GREEN and YELLOW signals. The TALLY light controlling port is the DB-9 socket at the rear panel, and terminal description is as follows: Terminal Description 1 2 Y 3 G 4 R 5 6 7 GND 8 GND 9 GND The RED light is on when connecting the terminal “R” with “GND”, and goes out when disconnecting. The GREEN light is on when connecting the terminal “G” with “GND”, and goes out when disconnecting.
6. Optional Battery Mount 6.1 Battery mount choice S-1090H monitor can use Gold mount, V-mount batteries, and DV batteries by connecting with SWIT S-7004 snap-on mount.
7. Specifications LCD Performance Size Display area Resolution Aspect ratio Brightness Contrast Color Viewing angle Video Format CVBS SMPTE-425M SMPTE-274M SDI SMPTE-RP211 SMPTE-296M SMPTE-125M ITU-R BT.656 HDMI General Working voltage Power consumption Working temperature Working humidity Storage temperature Storage humidity Dimensions Net weight (main body) 9 inches 194×121mm 1280×RGB×800 16:9 (4:3 adjustable) 250cd m2 700:1 16.
