AMD® Athlon®, Duron®, MP, XP, Sempron®
Socket 462
Use exclusively with motherboards featuring mounting holes around the socket.

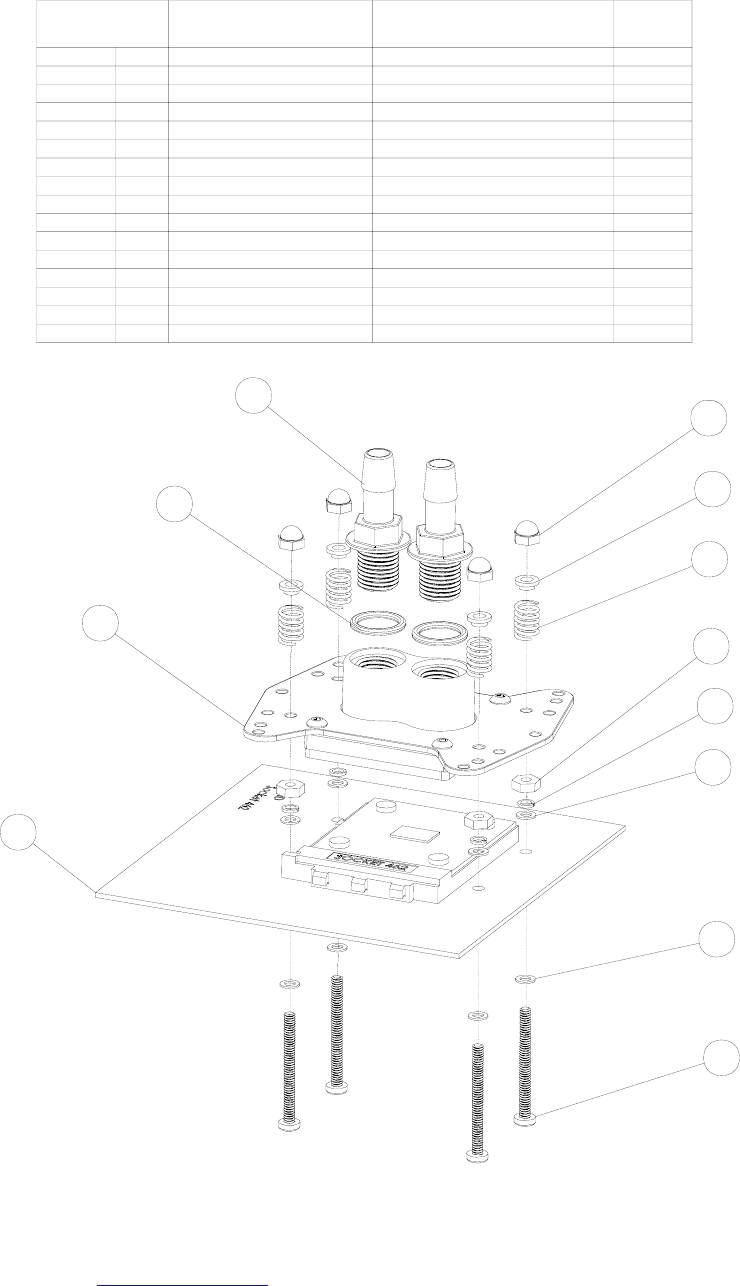

ITEM NO. PART NUMBER DESCRIPTION QTY.
1
socket462
Motherboard and CPU assy. 1
2
apogee-assy Waterblock 1
92949A149 6-32 X 3/8" PHILIPS 4
2a
O-RING-9557K473
1-4'" NPSM barb fitting O-Ring 2
2b 1-4-straightx3-8-barb 1/4" NPSM X 3/8" Barb fitting 2
APOGEE-H Housing 1
APOGEE-BP Base Plate 1
APOGEE-BRCKT
Universal hold-down plate 1
3 APOGEE-462-HARDWARE
4 x
3a 6-32-Acorn-nut Acorn n ut 1
3b
SPRING6
Spring 1
3c 6-32-nut Hex Nut 1
3d LOCK-WASHER#6 Lock washer 1
3e FW140X250X0215FB BLK Ffiber washer 2
3f
91772A157-6-32x1.5
6-32 x 1 1/2 philips screw 1
3g 12SWS0444 Nylon shoulder washer 1
2b
3a
3g
3b
2a
3c
3d
3e
1
3e
3f
2
”An additional part is available in order to work with motherboards with high density of capacitors around the
socket”. Article: #AP-S462-R.
