Installation Instructions

Installation Procedure
Followed carefully, these installation instructions will result in
an easy, trouble-free installation of your Swan Corporation
product. Any deviations, additions, and/or deletions from the
prescribed installation, without prior written approval, will void
the warranty covering this product. Not following the directions
could also result in personal injuries, water damage, and other
damage to floors, pipes, walls, and other portions of your
building or home.
Disclaimer
m The information contained in this Installation Manual
is given free of charge. It is based upon technical data
which we believe to be reliable and is intended for use, by
persons having knowledge of this technical area, at their
own discretion and risk. Swan Corporation assumes no
responsibility for results obtained or damage incurred from
the use of this material either in whole or in part by the
buyer.
m This manual will give you basic instructions for the
installation of the product in a step-by-step sequence
that will work in most types of installations. If you have an
installation application that is not covered in this manual,
please call your local Swan Corporation distributor or contact
the Swan Corporation directly for additional information
about your application.
m Follow all installation instructions. Failure to follow these
instructions could result in personal injuries, water damage,
or other damage to oors, pipes, walls, or other portions of
your building or home
.
Preparation
1. Remove the bathtub wall kit from the protective shipping
carton and inspect the contents for damage. Check and
make sure all the required components are included in the
cartons.
To prevent unnecessary delays, before starting the
installation, refer to the Kit Contents section to verify the
contents of the carton are correct.
2. Allow the contents to adjust to room temperature for at least
six hours before installation. The alcove wall panels should
be installed at temperatures not less than 65°F.
Measure the bathtub to be sure the new wall panel kit will t.

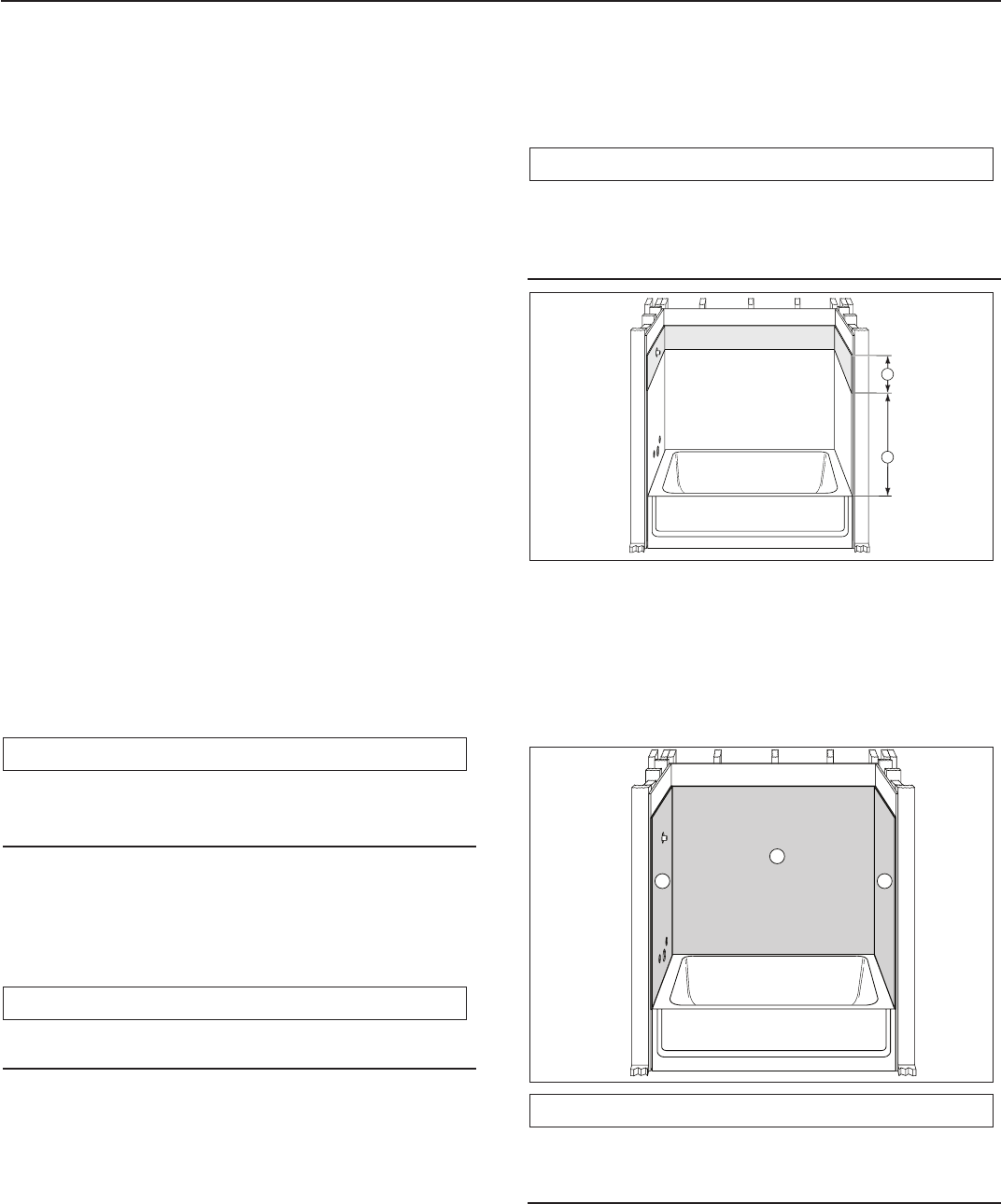

Filler Boards
If an existing wall covering (B) (i.e. tile) does not extend to a
height equal to the height of the panel, it will be necessary to
install a ller board (A) to that height. The ller board must be
the same thickness as the existing wall covering (tile). Usually
1/4 inch masonite, or similar material, is adequate. If desired,
the ller board can extend from the top edge of the tile to the
ceiling.
If installing an optional wall panel extension kit above the
wall panel kit, the ller board must extend from the top of the
existing wall covering (tile) to 24 inches above the top edge of
the installed tub wall kit panels, or to the ceiling if less than 24
inches.
Failure to use a ller board to properly install the panels could
result in water damage or other damage to oors, walls, or
other portions of your building or home.
New Construction Wallboard Installation
Note: If the wall panel kit is installed over an existing wall
surface, proceed to the next section.
1. Measure and cut out openings for the faucet(s), bathtub
spout, and/or shower head. Install 1/2 inch moisture-
resistant cement board or greenboard over back (1), front
(2), and rear (3) wall surfaces of the rough opening.
To prevent possible water damage (wicking affect) to the wall,
install the wall board with a 1/2 inch gap above the bathtub side
lip, the front edge of the bathtub, and the oor.
2. Apply a coat of water or oil-based primer/sealer to all
the surfaces of the cement board or greenboard (follow
the manufacturer’s instructions). Allow the primer to dry
thoroughly before applying any silicone sealant.
IMPORTANT NOTICE
1
2 3
A
B
IMPORTANT NOTICE
IMPORTANT NOTICE
IMPORTANT NOTICE
