RMTP-PR-FC1 User manual
Features Projective capacitor touch pad technologies. Support multiple touch & gesture. Compact & Slim design. RF2.4G reliable wireless with up to 8-10meter performance (open space—15meter). Glittering backlighting LED performance. Inside high sensitivity G-sensor. High efficiency vibration motor. Multiple power saving mode design.

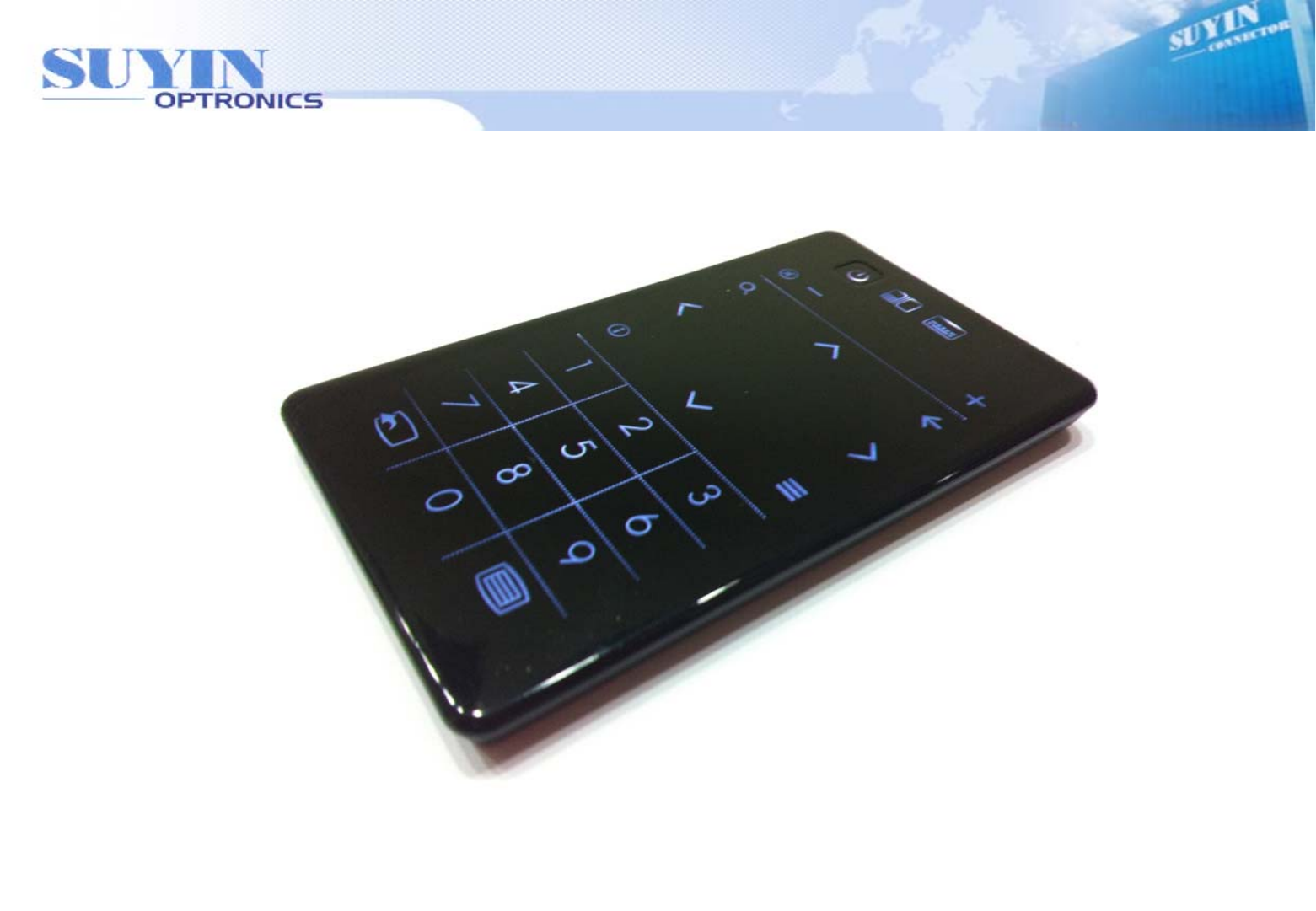

Appearance DT touch pad – RC mode RF Dongle DT touch pad – Cursor mode
Key button definitions Information 4 arrow key Search Mute Return to previous channel on/off system power Cursor/RC mode switch Digital key Launch MS keyboard OSD menu Menu Back Volume +/-
Function description Mode 1: Cursor Mode Mode 2: RC Mode
Mode1:Cursor Mode A B C Power on device: default “Cursor Mode” A. Can power on/off device B. Support to switch cursor/ RC mode C. Enable MS keyboard D D. Touch Area: Touchpad Gesture: 1. Slide cursor move 2. Tap Same as mouse left key 3. double click Same as mouse double click 4. Long press Same as mouse right key 5. Two fingers slide up and down Scrolling 6. Two fingers pinch zoom in / out 7.
Mode1:Cursor Mode MagicPad – (Tilt angle over 30º) G-Sensor perform operation direction change automatically.
Mode2: RC Mode 1 3 2 4 5 7 9 6 8 10 11 12 13 1. Power on/ off 2. RC/ Cursor mode switch 3. Mute: disable/enable 4. Volume +/- : Touch +/- to increase or decrease volume 5. Search: search application 6. Back: Back to previous action 7. 4 directions: Direction button 8. Enter: touch once to perform “Enter” 9. Message: Enable message feature 10. Menu: enable menu application 11. Digital: digital 12. Return: can perform previous channel 13.
SW – Gesture Hints (Remote Control)
SW – Gesture Hints (Touch Pad)
Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
