User Guide

Table Of Contents

How It Works

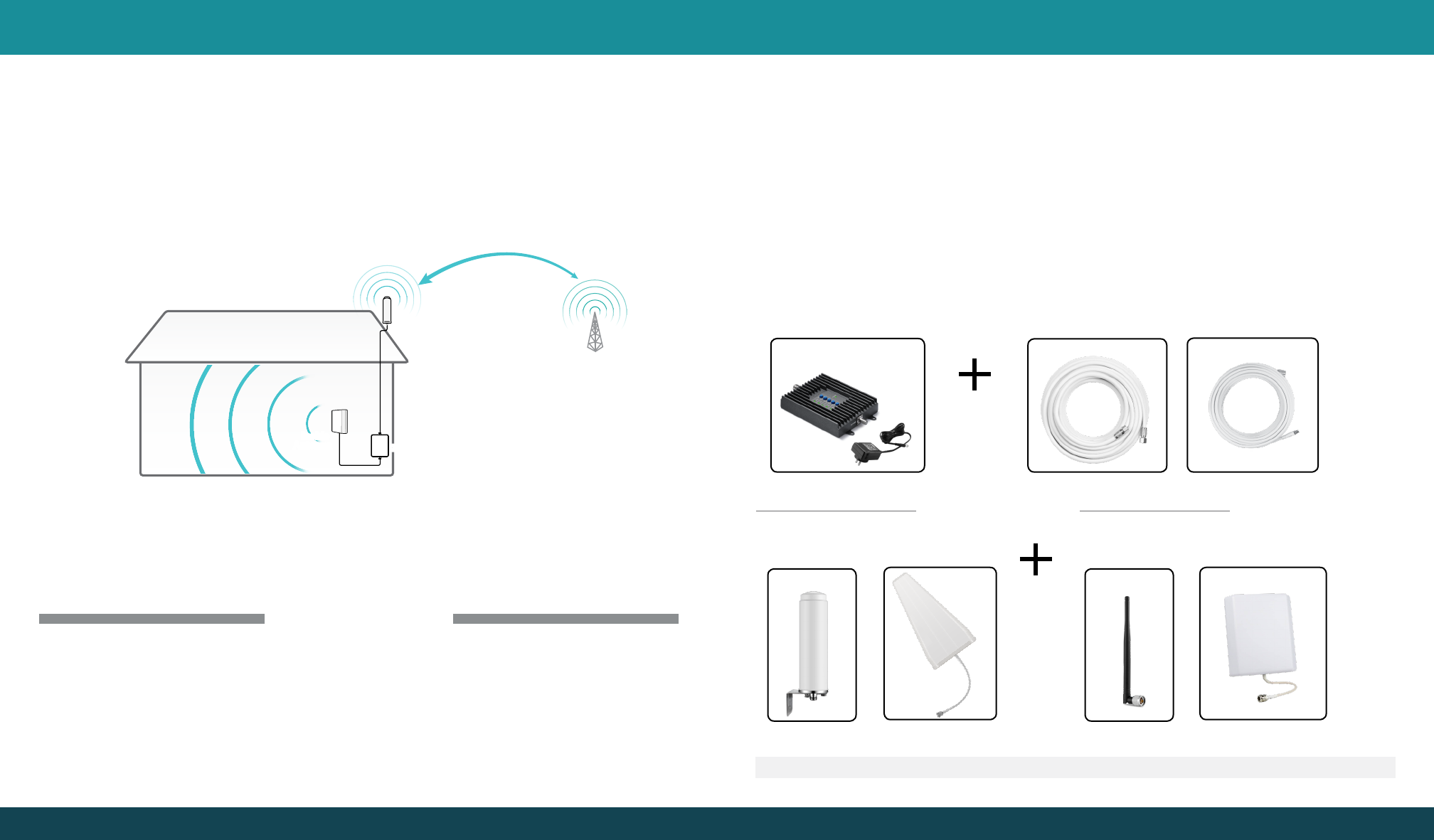

How it works

1. An outside antenna collects signal from the cell tower.

2. The outside antenna sends the signal to the booster through coax cable.

3. The booster amplies the cell signal and rebroadcasts the signal indoors from via the inside antenna to all

mobile devices within range.

4. The system also works in reverse amplifying outgoing signal back to the tower.

Package Contents

1. Fusion4Home Cellular

Booster and power supply

3. Inside Cable

(20 ft.)

4. Outside Antenna Options:

Your Fusion4Home signal booster package includes the following items:

1. SureCall Fusion4Home signal booster and power supply

2. Cable for connecting the outside antenna to the signal booster (RG6, 50 ft)

3. Cable for connecting the booster to the inside antenna (SC-240, 20 ft)

4. One outside antenna (either omni or Yagi antenna)

5. One Inside antenna (either omni-directional whip or directional panel antenna)

2. Outside Cable

(50 ft)

Cable

Booster

Outside

Antenna

Inside

Antenna

How the SureCall Fusion4Home Booster Works

« OR » 4.b Outside Yagi

Antenna

4.a Outside Omni

Antenna

5. Inside Antenna Options:

PACKAGE CONTENTS

Unpack all package contents. For missing or damaged items, contact your reseller.

Turn over the signal booster and record the model and serial number for reference:

Serial #: ________________________________________________________________

Purchase Date: __________________________________________________________

Keep the carton and packing material to store the product in case you need to return.

« OR » 5.b Inside Directional

Panel Antenna

5.a Inside Omni

Whip Antenna

Warning: Changes or modications not expressly approved by SureCall could void the user’s authority to operate the equipment.
