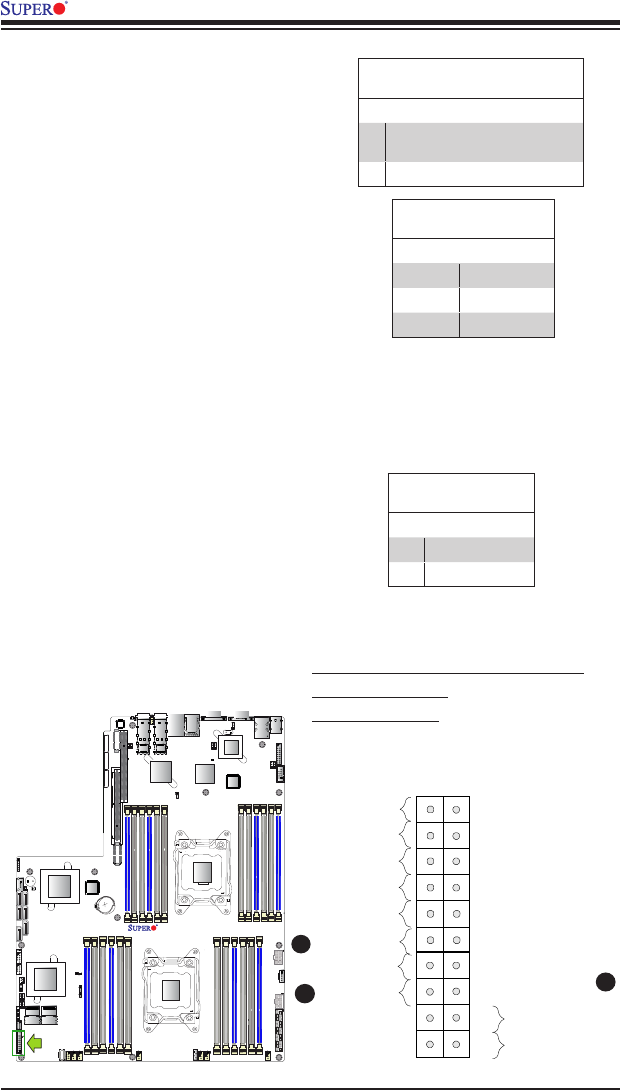

X9DRW-7TPF+/iTPF+ Motherboard User’s Manual
JOH1
JPS2
JPS3
JPS1
JI2C2
J21
JWD1
JPTG1
JP6
JP7
JPL1
JPG1 JPB1
JPW1
JPW2
JPW3
I-SATA5
I-SATA3
I-SATA1
JS3
LED1
SFP2
SFP1
JTPM1
JIPMB1
JSD1
COM2
JSTBY1
SP1
JBT1
USB2/3
T-SGPIO1
T-SGPIO2
FANA
FAN5
P1-DIMMC1 P1-DIMMC2
P1-DIMMC3
SXB1C
CPU2_PORT2
SXB1B
SXB1A
P1-DIMMD1
BATTERY
CPU1_PORT3
P1-DIMMD2
P2-DIMME1
CPU2_PORT3A/3B
SXB2
UID
P1-DIMMD3
Slot1 PCI-E 3.0 x16
LAN4
FAN4
P2-DIMME2 P2-DIMME3 P2-DIMMF1
LAN3
P2-DIMMF2 P2-DIMMF3
LAN2
FAN3
CPU1
CPU2
LAN1
FAN2
P1-DIMMB3 P1-DIMMB2
BUZZER
COM1
VGA1
P1-DIMMB1
P2-DIMMH3
P1-DIMMA3
P2-DIMMH2 P2-DIMMH1
P1-DIMMA2
P2-DIMMG3
USB0/1
IPMI_LAN
FAN1
P1-DIMMA1
P2-DIMMG2 P2-DIMMG1
PWR_I2C
KB/MOUSE
I-SATA4 I-SATA2 I-SATA0
LEM2
LE2
USB6
USB4/5
JL1
JF1
SAS4-7 SAS0-3
LEDS1
LEDS2
FPCTRL
CPU1 Slot2 PCI-E 3.0 x16 + X16
X9DRW-7TPF+
Rev. 1.01
LSI 2208
SAS CTRL
Inel LAN
CTRL
Inel LAN
CTRL
Nuvoton
BMC
Inel PCH
CLOSE 1st
OPEN 1st
CLOSE 1st
OPEN 1st
JI2C1
LE1
JPME2
JPME1
10G MAC CODE
10G SAN MAC
1G MAC CODE
JPI2C1
Power Button
Blue+ (OH/Fan Fail/
PWR FaiL/UID LED)
1
NIC1 Link LED
Reset Button
2
Power Fail LED
HDD LED
FP PWRLED
Reset
PWR
3.3 V
ID_UID_SW/3/3V Stby
Red+ (Blue LED Cathode)
Ground
Ground
1920
3.3V
X
Ground
NMI
X
NIC2 Link LED
NIC2 Activity LED
NIC1 Activity LED
Power Fail LED
The Power Fail LED connection is
located on pins 5 and 6 of JF1. Re-
fer to the table on the right for pin
denitions.
PWR Fail LED
Pin Denitions (JF1)
Pin# Denition
5 3.3V
6 PWR Supply Fail
B
A
A. OH/Fail/PWR Fail LED (Red)/UID (Blue)
B. Blue LED Cathode
C. PWR Supply Fail
Overheat (OH)/Fan Fail/PWR Fail/
UID LED
Connect an LED cable to pins 7 and
8 of Front Control Panel to use the
Overheat/Fan Fail/Power Fail and
UID LED connections. The Red LED
on pin 7 provides warnings of over-
heat, fan failure or power failure. The
Blue LED on pin 8 works as the front
panel UID LED indicator. The Red
LED takes precedence over the Blue
LED by default. Refer to the table on
the right for pin denitions.
OH/Fan Fail/ PWR Fail/Blue_UID
LED Pin Denitions (JF1)
Pin# Denition
7 Red_LED-Cathode/OH/Fan Fail/
Power Fail5.5V.SB
8 Blue_UID LED
OH/Fan Fail/PWR Fail
LED Status (Red LED)
State Denition
Off Normal
On Overheat
Flashing Fan Fail
C
