Note: Notch
should align
with the
receptive point
on the slot
Notch
Release
Tab
Release
Tab
DIMM DDR3
Notch
X8DTH
Rev. 2.0

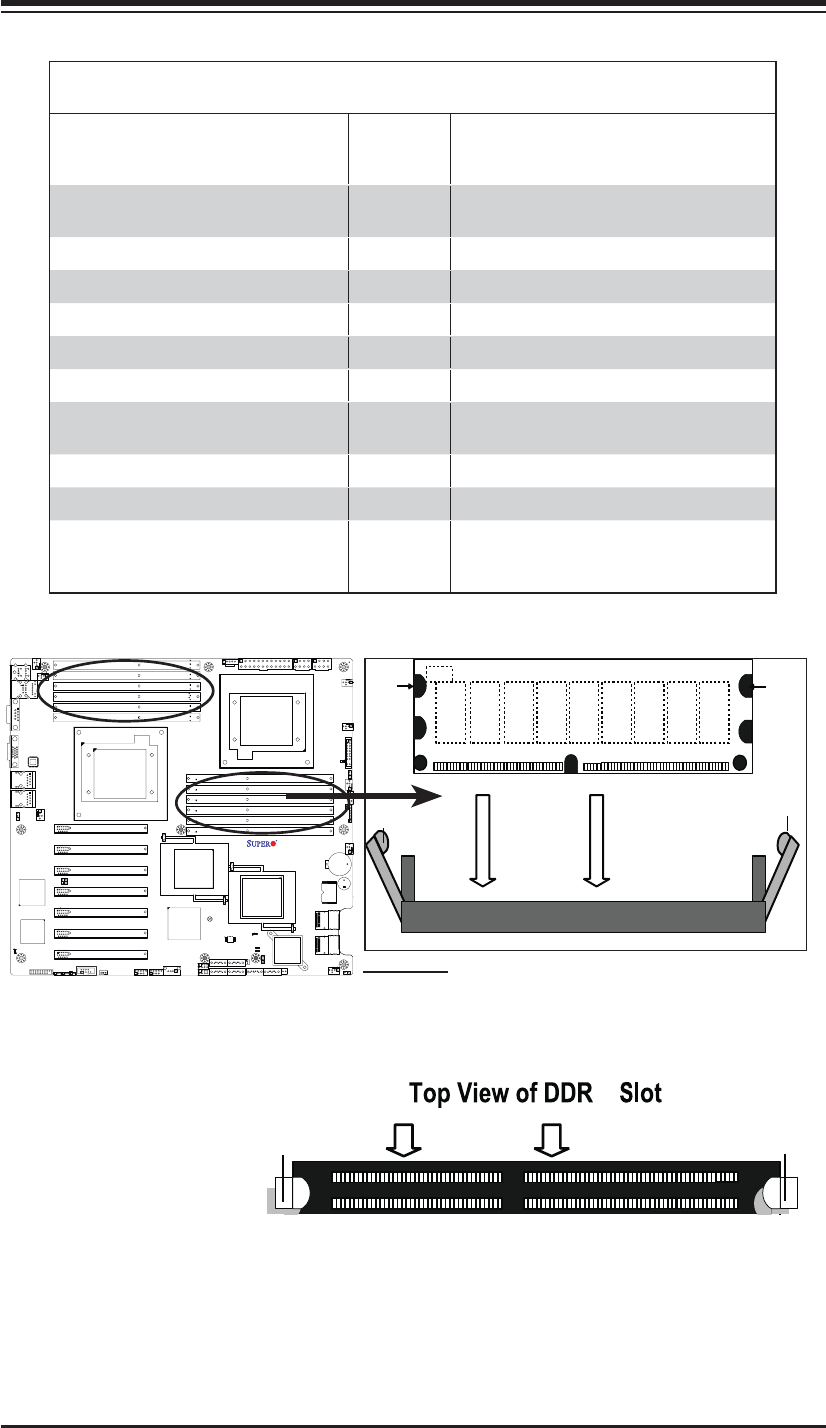

To Install: Insert module vertically and press down
until it snaps into place. Pay attention to the align-
ment notch at the bottom.
Installing and Removing DIMMs
To Remove:
Use your thumbs to gently push the release
tabs near both ends of the module. This should
release it from the slot.
3
Release Tab
Release Tab
Possible System Memory Allocation & Availability
System Device Size Physical Memory
Remaining (-Available) (4 GB Total System
Memory)
Firmware Hub fl ash memory (System
BIOS)
1 MB 3.99 GB
Local APIC 4 KB 3.99 GB
Area Reserved for the chipset 2 MB 3.99 GB
I/O APIC (4 Kbytes) 4 KB 3.99 GB
PCI Enumeration Area 1 256 MB 3.76 GB
PCI Express (256 MB) 256 MB 3.51 GB
PCI Enumeration Area 2 (if needed)
-Aligned on 256-MB boundary-
512 MB 3.01 GB
VGA Memory 16 MB 2.85 GB
TSEG 1 MB 2.84 GB
Memory available for the OS & other
applications
2.84 GB
