3-8
SAS M35TQ Mobile Rack
User's Guide

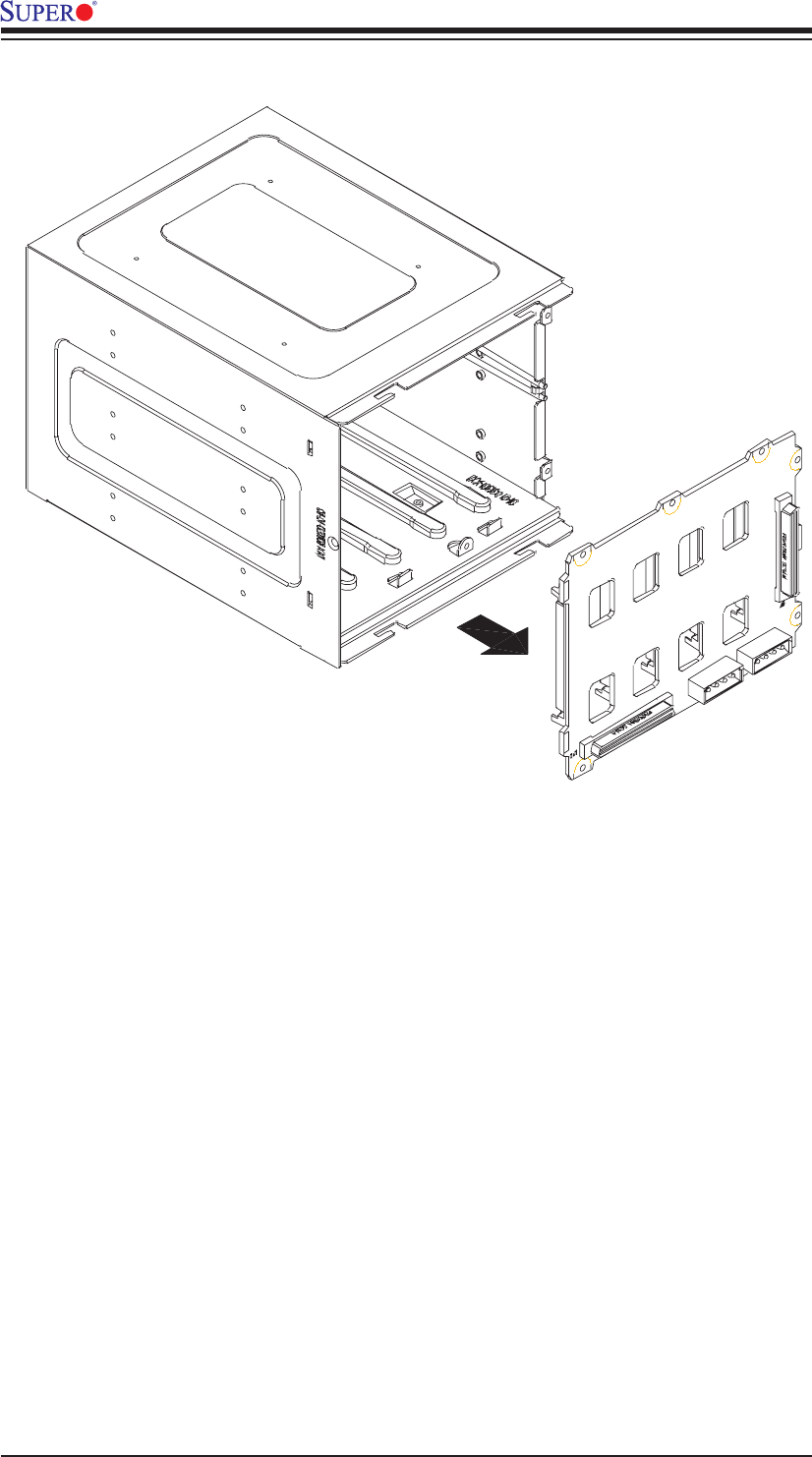

Figure 3-8: Removing Mobile Rack Fan
Additional Installation Information
The backplane may be separated from the mobile rack by removing the seven
screws holding the backplane in place.
