Wiring Diagram

ManualsBrandsSuperDroid Robots ManualsBreakout Boards and AccessoriesSingle LS7366R Quadrature Encoder Buffer

1

2

3

Table Of Contents

Encoder Buffer Board.vsdx

Example code at:

https://github.com/SuperDroidRobots/Encoder-Buffer-Breakout

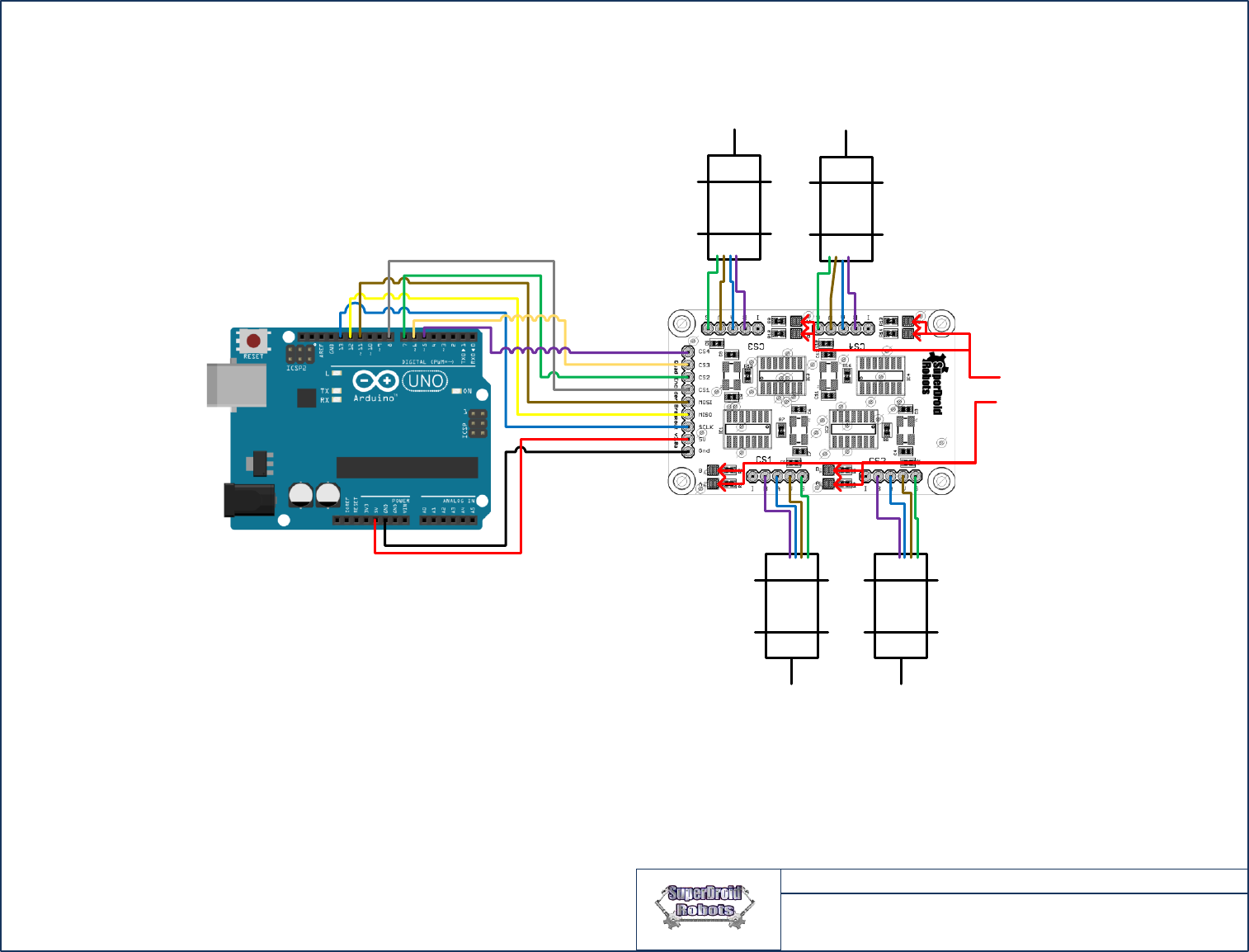

Arduino Uno

IG32, IG42, IG52 Electric Motors

Motor with encoder Pin Out:

Purple : Hall Sensor B

Blue : Hall Sensor A

Brown : Hall Sensor Vcc

Green : Hall Sensor GND

Red : +Motor

Black : -Motor

Note: In case encoders are

counting the oposite direction

you can swap A and B in that

channel.

SuperDroid Robots Inc

Quad Encoder Breakout

Note: Pull up resistors

solder jumpers. If you are

using encoders and they

require pull ups resistors

these need to be bridge.

Unsolder if no you don t

need pull up resistors
