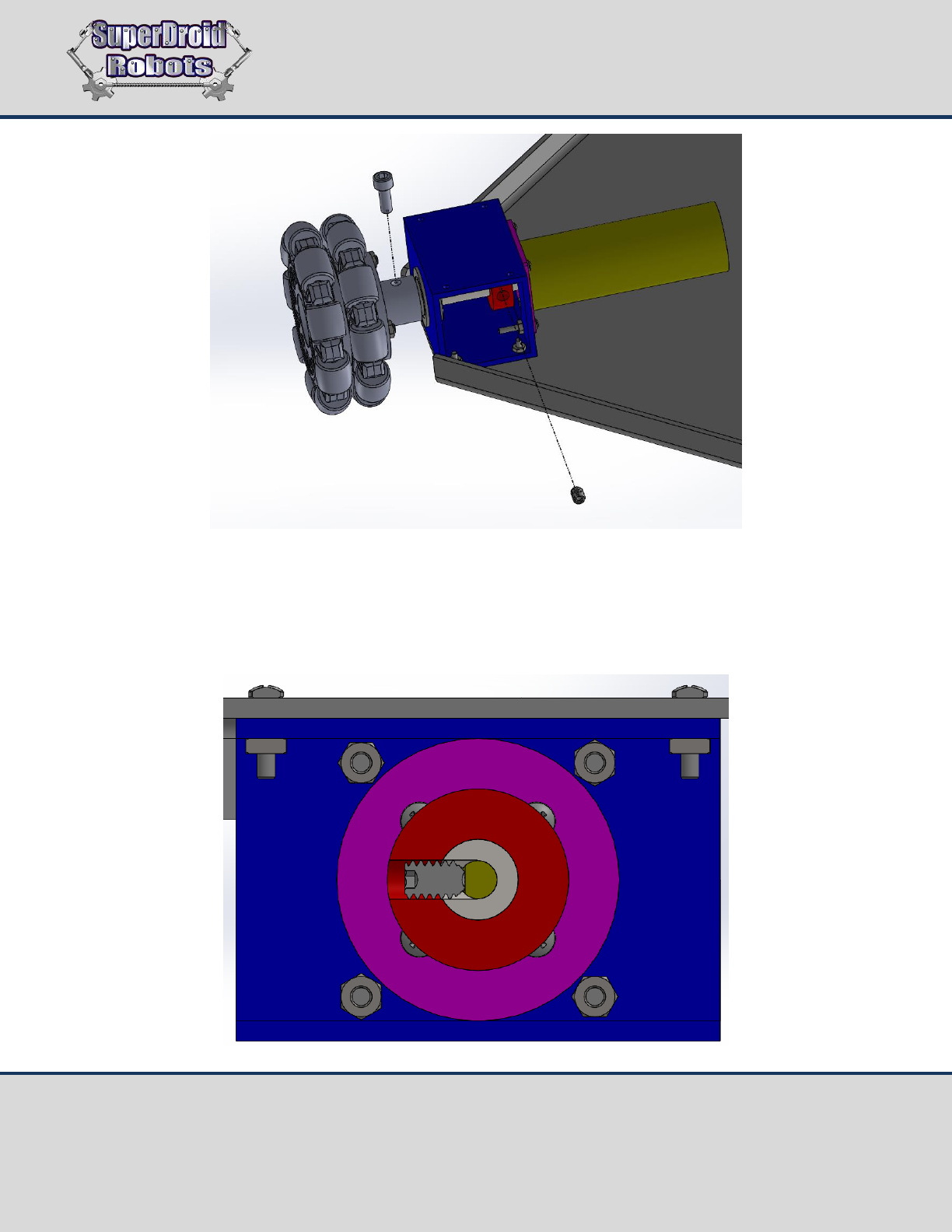

5. Tighten the socket head screw in the aluminum hub onto the steel shaft. Also tighten the set screw in the
lock collar, through the hole in the shaft, and onto the flat part of the motor shaft. See section view below
for clarification.
