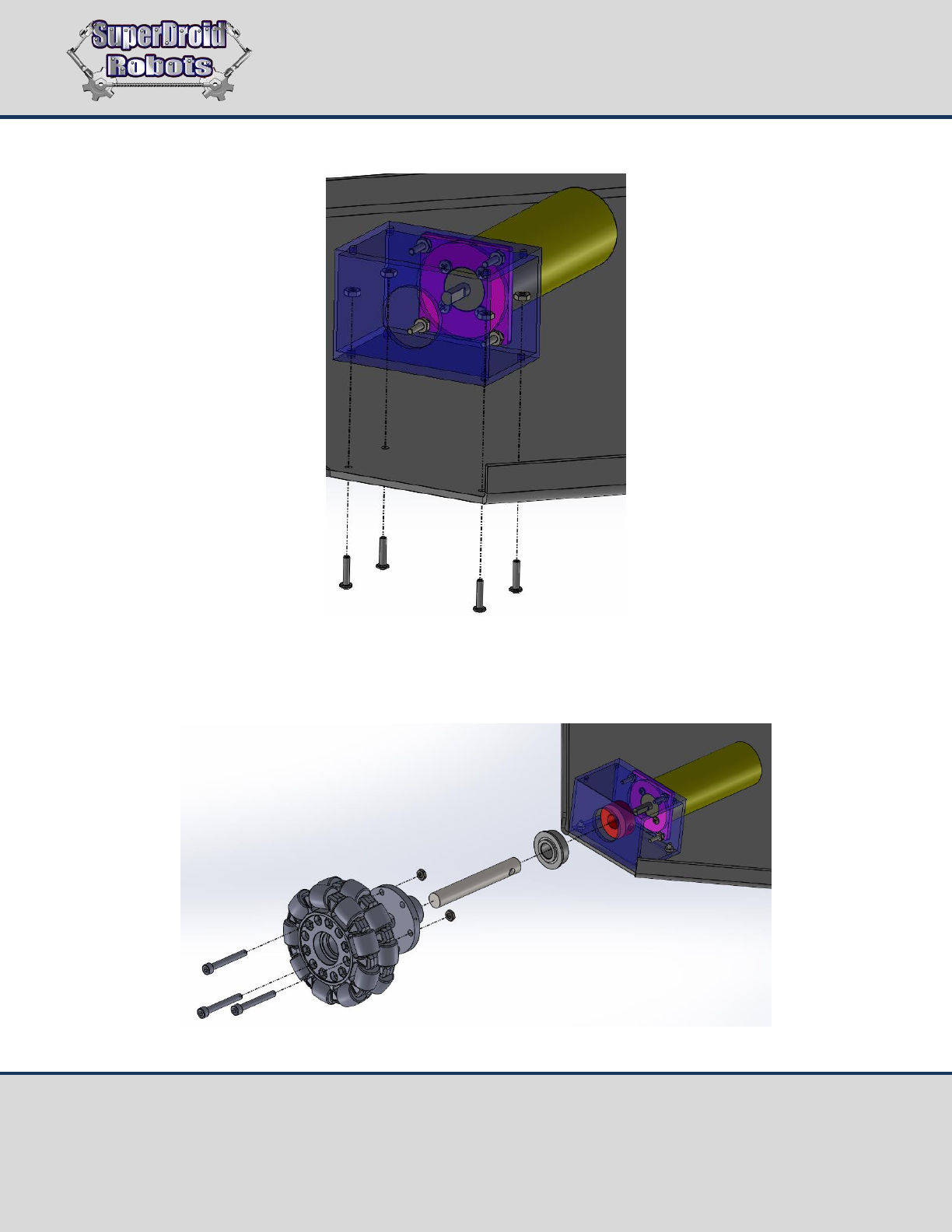

3. Mount the tube to the chassis plate using included #4-40 hardware.
4. Mount the omni wheels to the aluminum hubs using the hardware included with the wheels. Slide the
steel shaft through a shaft collar and onto the motor shaft. Slide the ball bearing into the hole in the
motor tube opposite the motor. Now slide the hub onto the shaft so that it rests against the bearing.
