Manual

Lawn Mower Chassis Upfit Robot
SuperDroid Robots, Inc Contact
224 Technology Park Lane [phone]
Fuquay Varina, NC 27526 [e-mail]
www.SuperDroidRobots.com
Revised: February 25, 2019 Page 7 of 12
hub easier. DO NOT FORGET to put air back in the tires after bolting them on. If not inflated, the tube can
spin inside the rim and tear the valve stem.

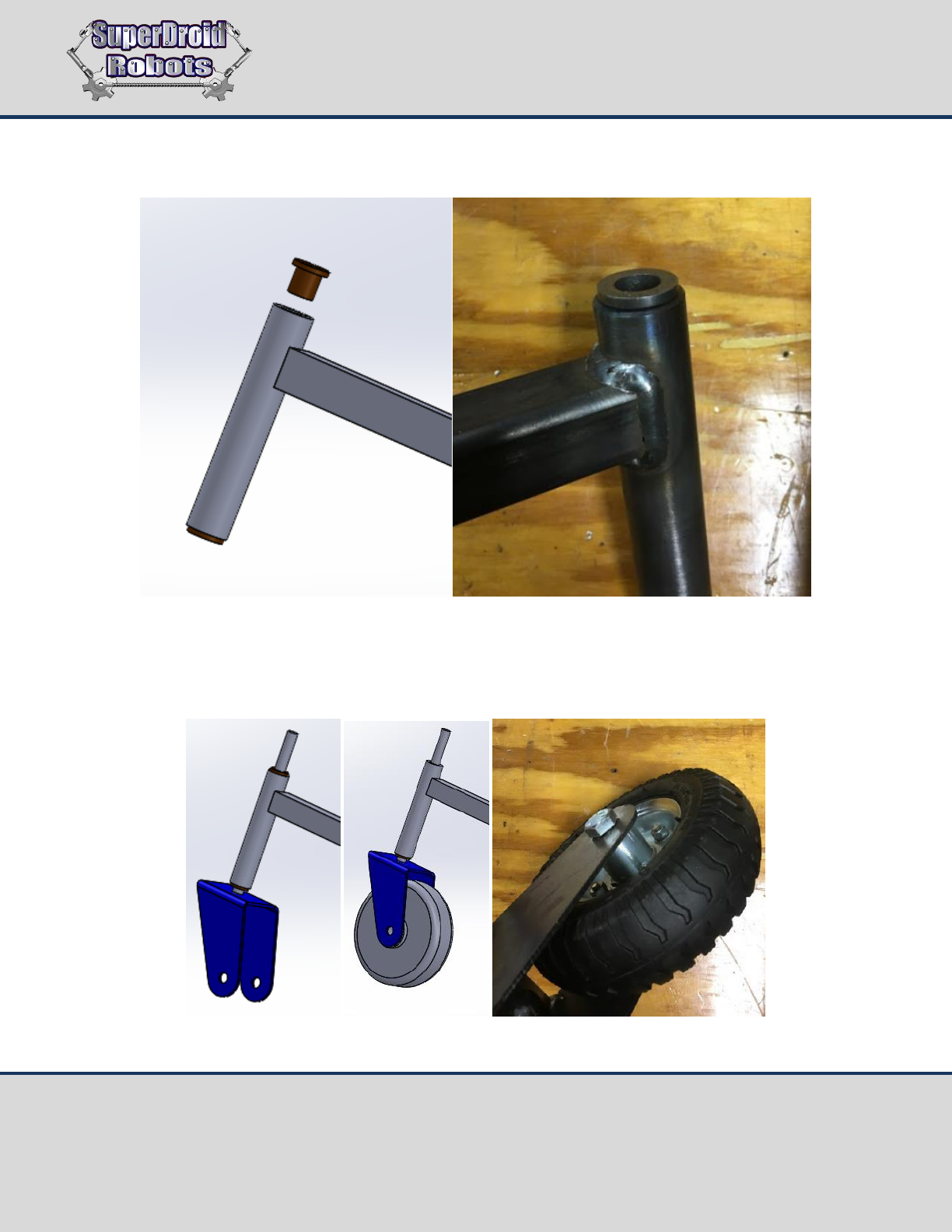

8. Insert the bronze bushings in the caster tube ends. Slide the caster shaft through and secure it with a
locknut. Insert the front caster wheels and bolt in place.
