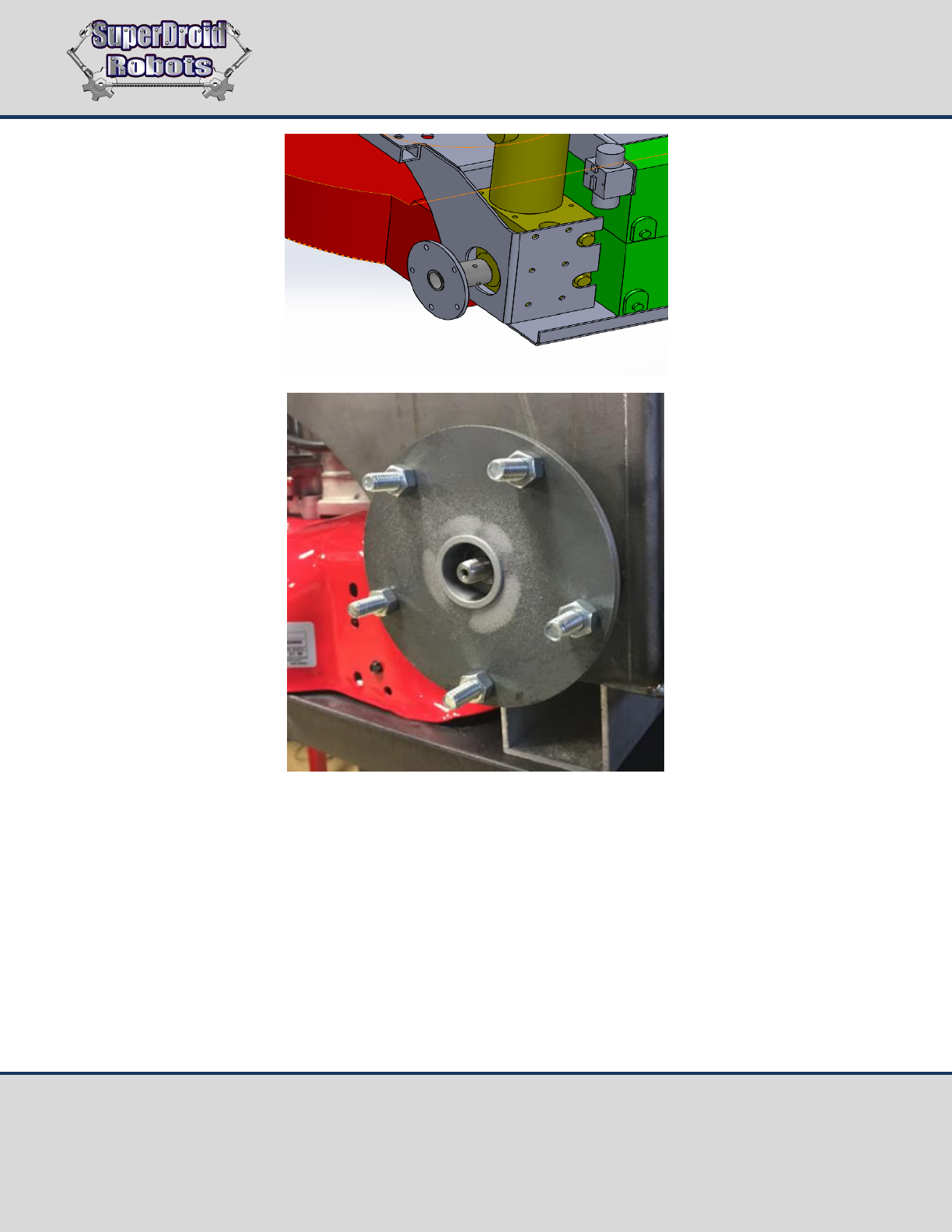

5. To bolt the wheels on start by making a “stud” with the included screws. Insert the screws in the holes in
the hub and secure them in place with a nut.
6. The rear tires should go on with the tread forming a “V” pattern if looking at it from the front, and the
valve stem on the outside. If one valve stem is on the wrong side, start by letting the air out of the tire,
and then remove the nuts and bolts. Next remove the rim from each side. If the rim is stuck, press down
on the tire near the edge of the rim to expose a gap and gently pry up the rim. Once the rim is removed,
carefully pull the inner tube out of the tire and flip it around so that the valve stem is on the other side.
Replace the rim on each side of the tire.
7. Now slide the wheel onto the studs and secure with another nut against the rim of the wheel.
TIP: Letting some air out of the tire will make removing the screws in the rim and bolting the wheel to the
