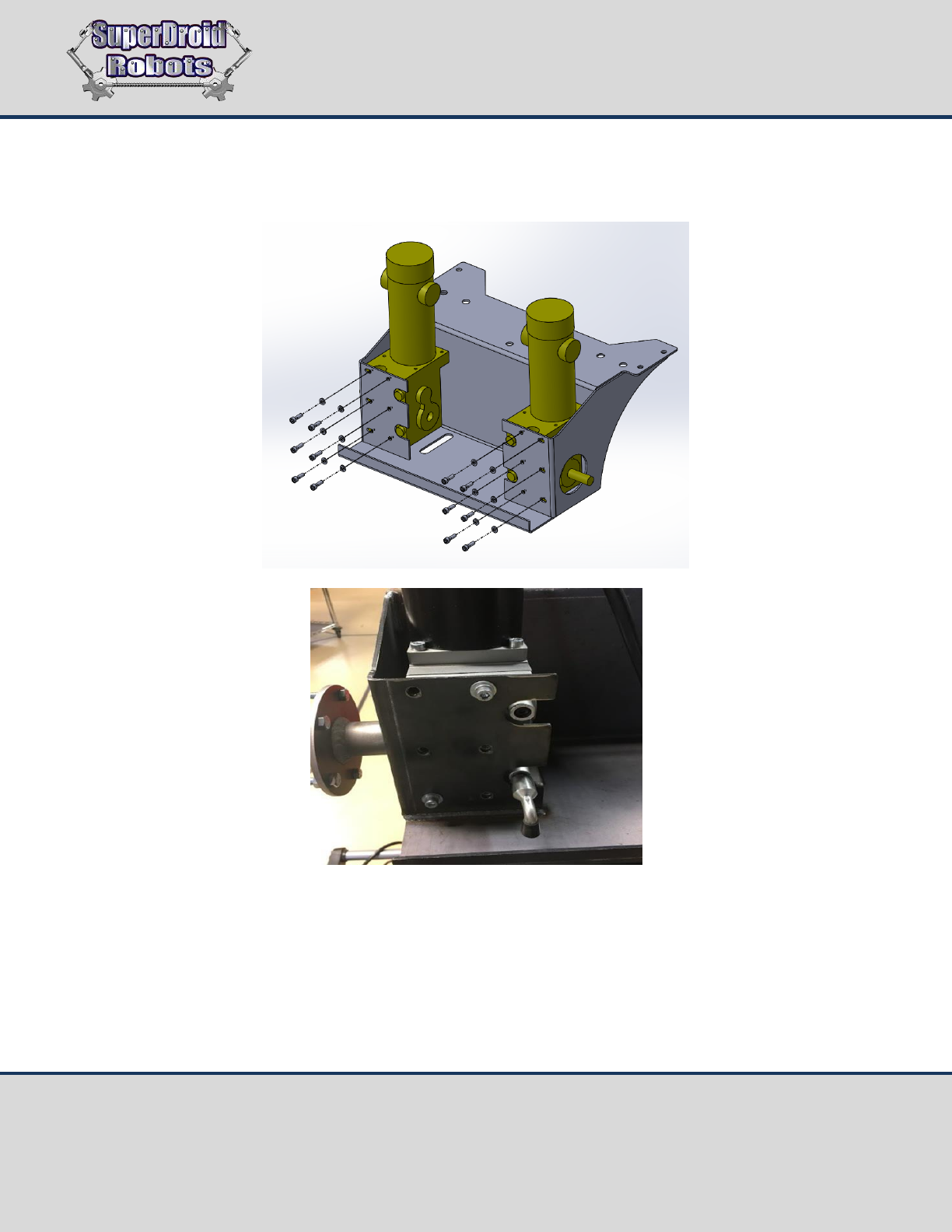

3. Now remove the six socket head screws from the each of the motors. Set the cast aluminum bracket
aside. You will not be using it. Use the same screws and the included washers to bolt the motors to the
chassis as shown in the pictures.
4. Slide the wheel hubs onto the motor shaft. Make sure the key on the motor is lined up with the keyway in
the wheel hubs. Secure with the setscrews.
