Manual

Lawn Mower Chassis Upfit Robot
SuperDroid Robots, Inc Contact
224 Technology Park Lane [phone]
Fuquay Varina, NC 27526 [e-mail]
www.SuperDroidRobots.com
Revised: February 25, 2019 Page 4 of 12

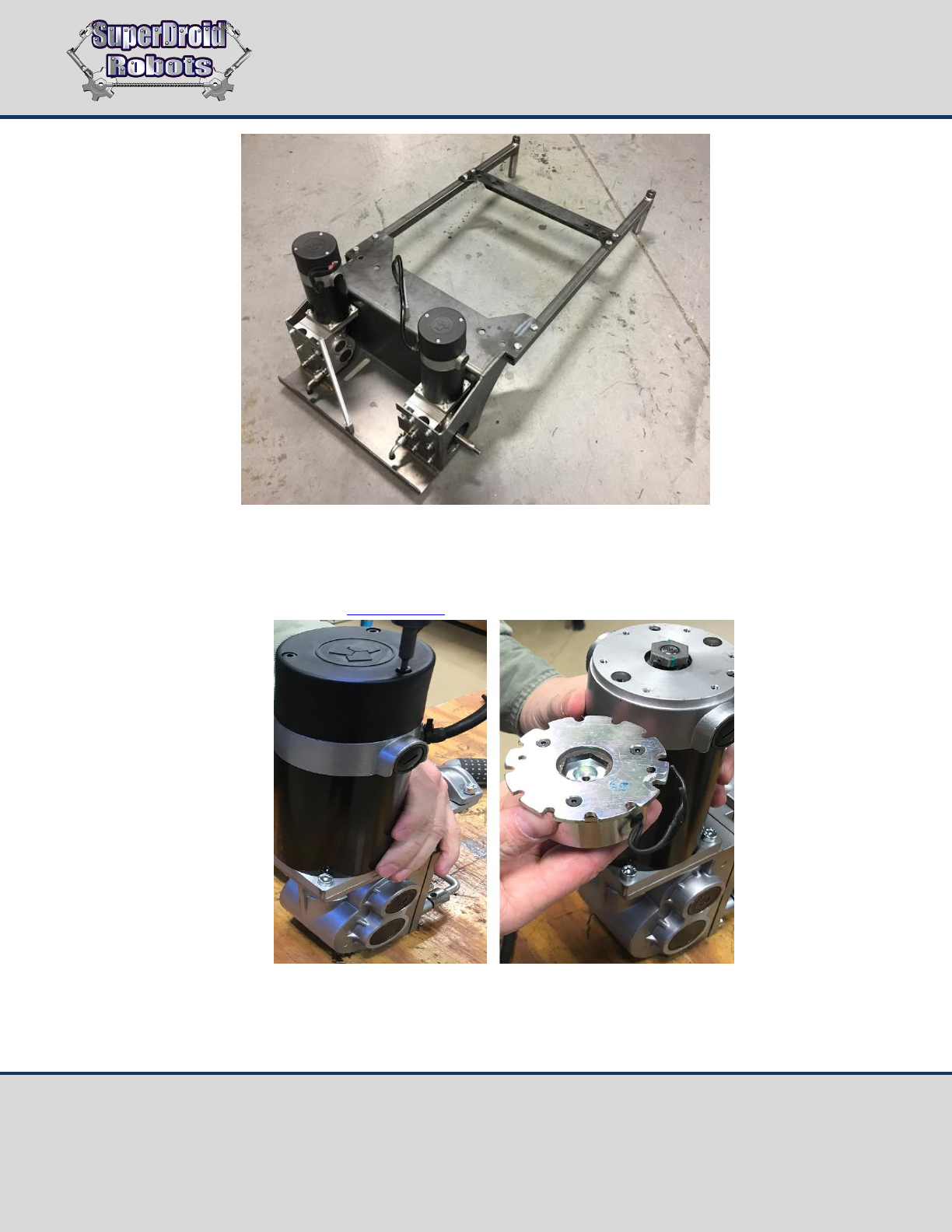

2. There is a brake on the back of the motors that needs to be removed before they are mounted. Remove
the plastic cap from the end of the motor by removing the three screws. Unbolt the brake that is under
the cap, cut the two small wires, and set the brake aside. Once the brake is removed you can put the cap
