Keyboard Mode
In Keyboard Mode, the MagicKey will be used as keyboard with the four positions of joystick
and the buttons mapping to different keys. The key value can be modified in code.
Preparations
1 x MagicKey Board
1 x Mini USB Cable
1 x Computer
Some plastic clay
Several Alligator Clip Cables
Procedures
1. Upload MagicKey-keyboard to MagicKey

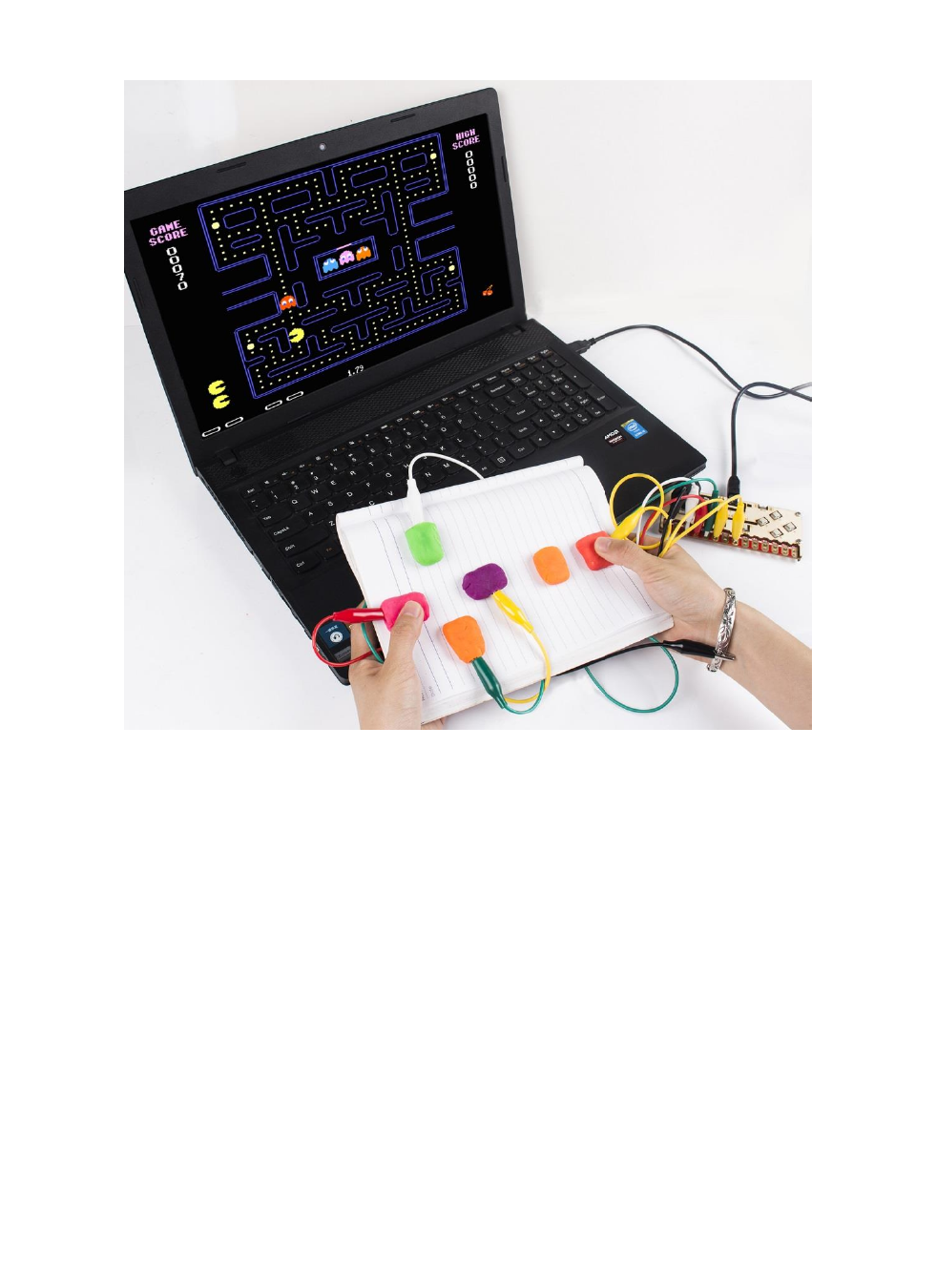

2. Now you can start to play: pull the joystick, you can play many games by using just a few
buttons. MagicKey with key mapping is enough for it.
3. You can also use touch input or pin headers on the board’s back as well.
Modify the Key Mapping of the Board
To change the key mapping of the MagicKey, you can modify the header file keymap.h in
the keyboard folder.
