Owner manual

REF. PART
NO. NO. DESCRIPTION QTY.
1 RS520101 Screw 1
2 RS31502 O-Ring (P12) 1
3 RS31503 O-Ring (P8) 2
4 RS520104 Air Regulator 1
5 RS31505 Spring 1
6 RS31506 Valve Stem Bushing 1
7 RS520107 Valve Stem 1
8 RS246002 O-Ring (3.5 x 1.4) 1
9 RS31509 Air Inlet 1
10 RS520110 Exhaust Sleeve 1
11 RS520111 O-Ring 1
12 RS31512 Spring Pin 1
13 RS520113 Lever 1
14 RS520114 Protecting Rubber 1
15 RS520115 Housing 1
16 RS30516 Bearing (696ZZ) 1
17 RS520117 Rear Plate 1
REF. PART
NO. NO. DESCRIPTION QTY.
18 RS520118 Pin 2
19 RS520119 Rotor Blade (pack of 4) 1
20 RS520120 Rotor 1
21 RS520121 Cylinder 1
22 RS520122 Cone Muffler 1
23 RS2GR23 Bearing Spacer 1
24 RS520124 Front Plate 1
25 RS30524 Bearing (608ZZ) 2
26 RS520126 Washer 1
27 RS520127 Clamp Nut 1
28 RS288029 Spindle 1
29 RS520129 Collet (1/4") 1
30 RS20636 Collet Nut 1
31 RS60136 Stop Spanner 14mm 1
32 RS20639 Stop Spanner 19mm 1
Optional: RS520129A Collet (1/8")

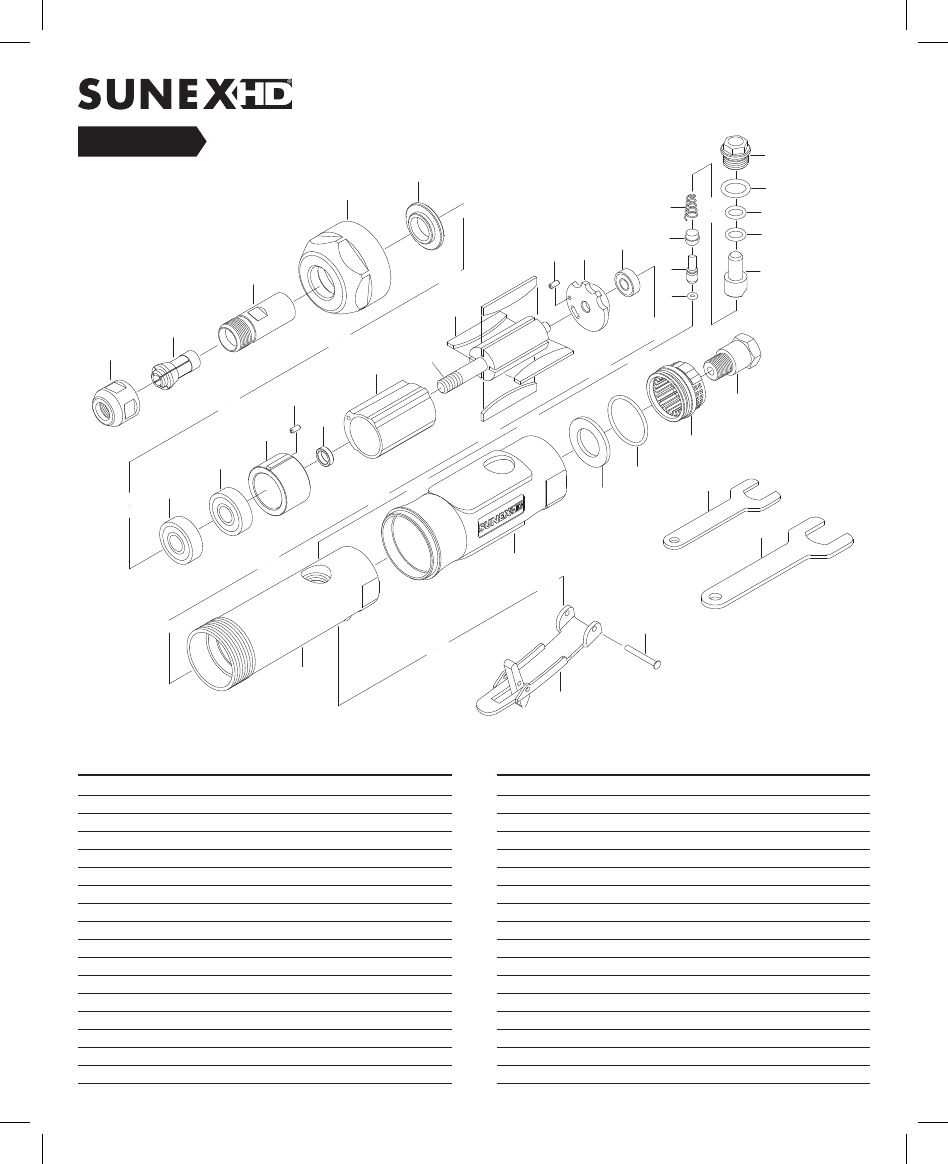

1/4" DRIVE
STRAIGHT
DIE GRINDER
SX5201
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
22
23
24
25
25
18
30
29
28
27
26
31
32
19
20
21
3
SX5201: Parts Breakdown & Operating Manual 4 10/08/10
