Icemaker QuickStart Instructions
ManualsBrandsSummit ManualsBottom Mount Refrigerators24 Inch Counter Depth Bottom Freezer Refrigerator with Stainless Steel Doors, 3 Glass Adjustable Shelves, Wine Rack, Adjustable Door Storage, Humidity-Controlled Crisper Drawer, ZeroZone Deli Drawer, Multi-Box Storage Container, Adaptive Intelligent Techn
2
Summit Appliance, Div. of Felix Storch, Inc. · Bronx, NY 10474 · Tel: 718-893-3900 · Fax: 844-478-8799

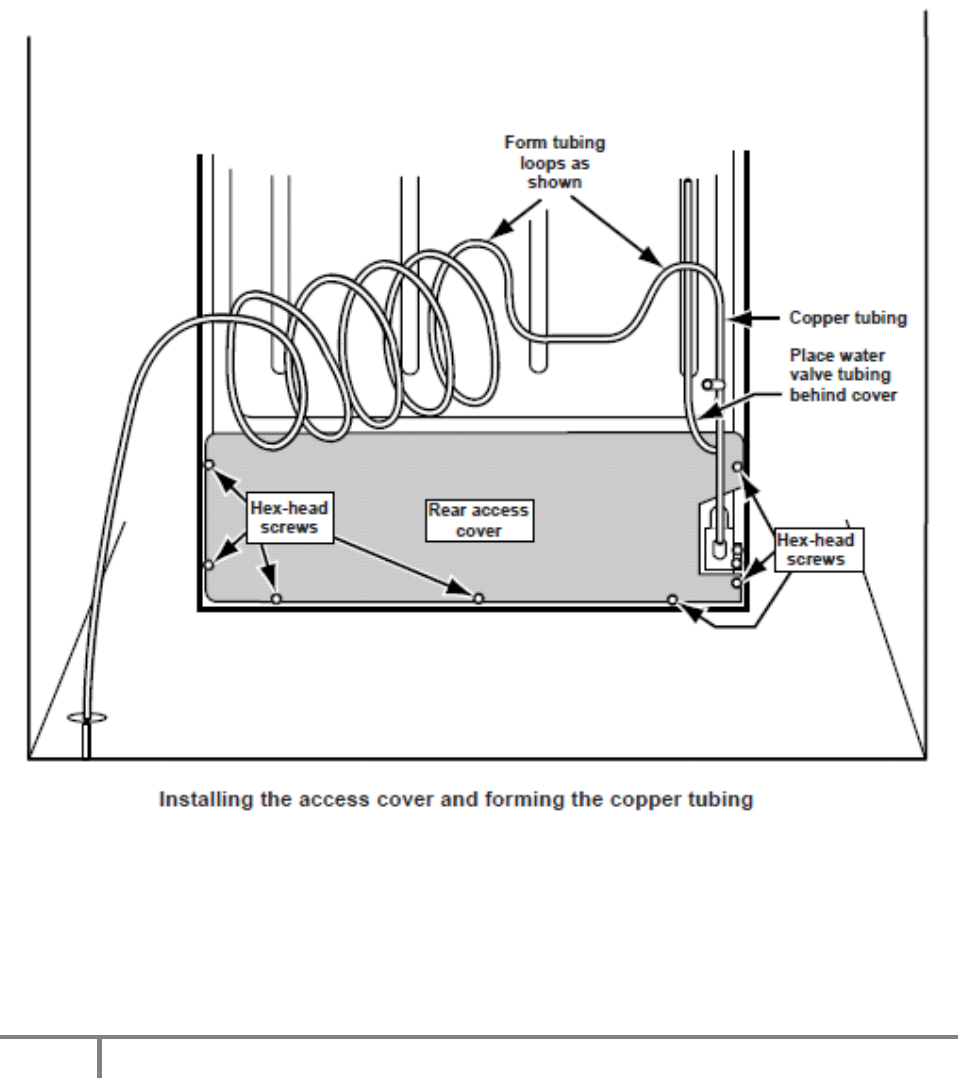

Forming the copper tubing:
Loop the copper tubing coming from the water valve as shown. Position the coiled copper
tubing near the center of the unit so that it forms an “accordion-fold” (as shown in the diagram
below) for when the refrigerator is moved to and from the wall.
