BUILT-IN REFRIGERATION
Opening Dimensions
STANDARD INSTALLATION
83
3
/4"
(2127)
OPENING
HEIGHT
24" (610)
OPENING
DEPTH

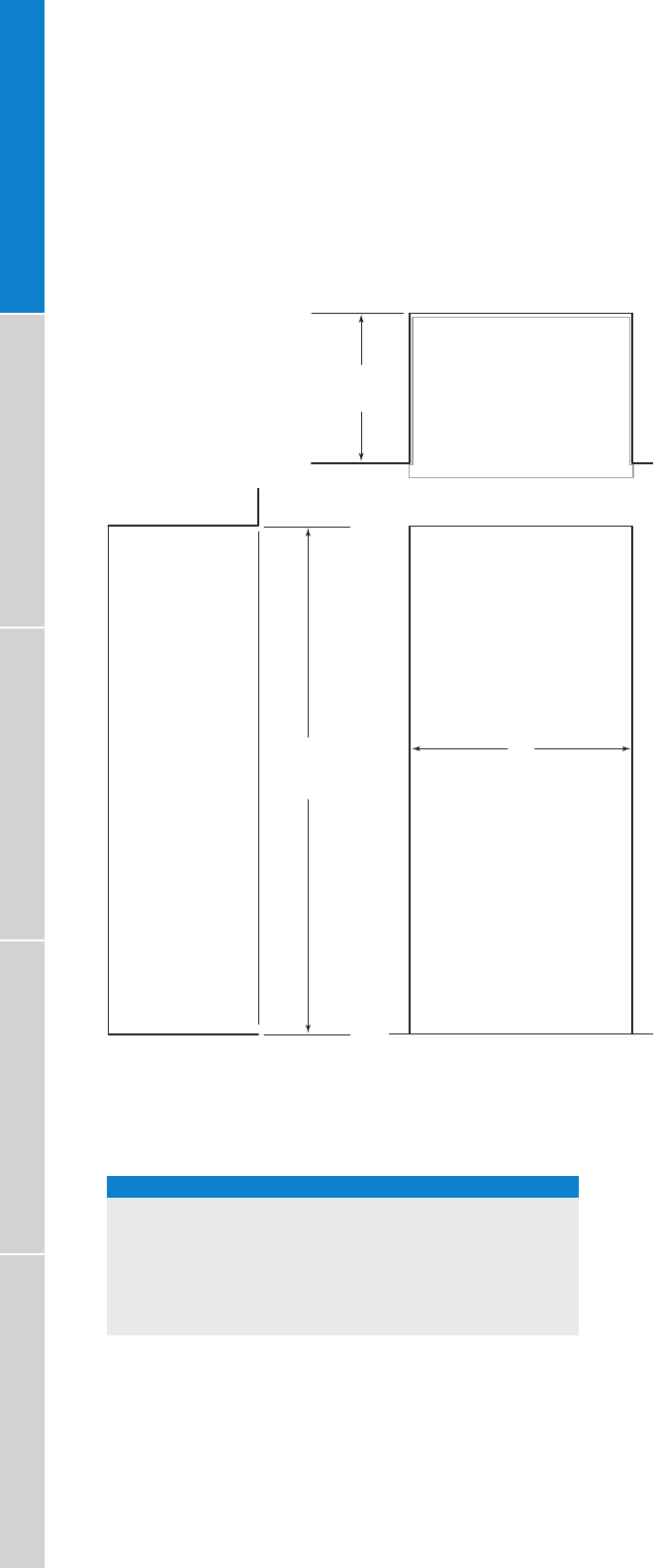

NOTE: Shaded line represents profile of unit.
FRONT VIEW
SIDE
VIEW
TOP VIEW
W
OPENING WIDTH
OPENING WIDTH
MODEL W
BI-36R, BI-36RG, BI-36F 35
1
/2" (902)
BI-30U, BI-30UG 29
1
/2" (749)
BI-36U, BI-36UG, BI-36UFD, BI-36S 35
1
/2" (902)
BI-42UFD, BI-42S, BI-42SID, BI-42SD 41
1
/2" (1054)
BI-48S, BI-48SID, BI-48SD 47
1
/2" (1206)
If an 83" (2108) grille height is specied, the opening height
must be decreased by
7
/8" (22). If an 88" (2235) grille height is
specied, the opening height must be increased by 4"
(102).
If two units are installed side by side, refer to page 14 for
dual standard installations.
