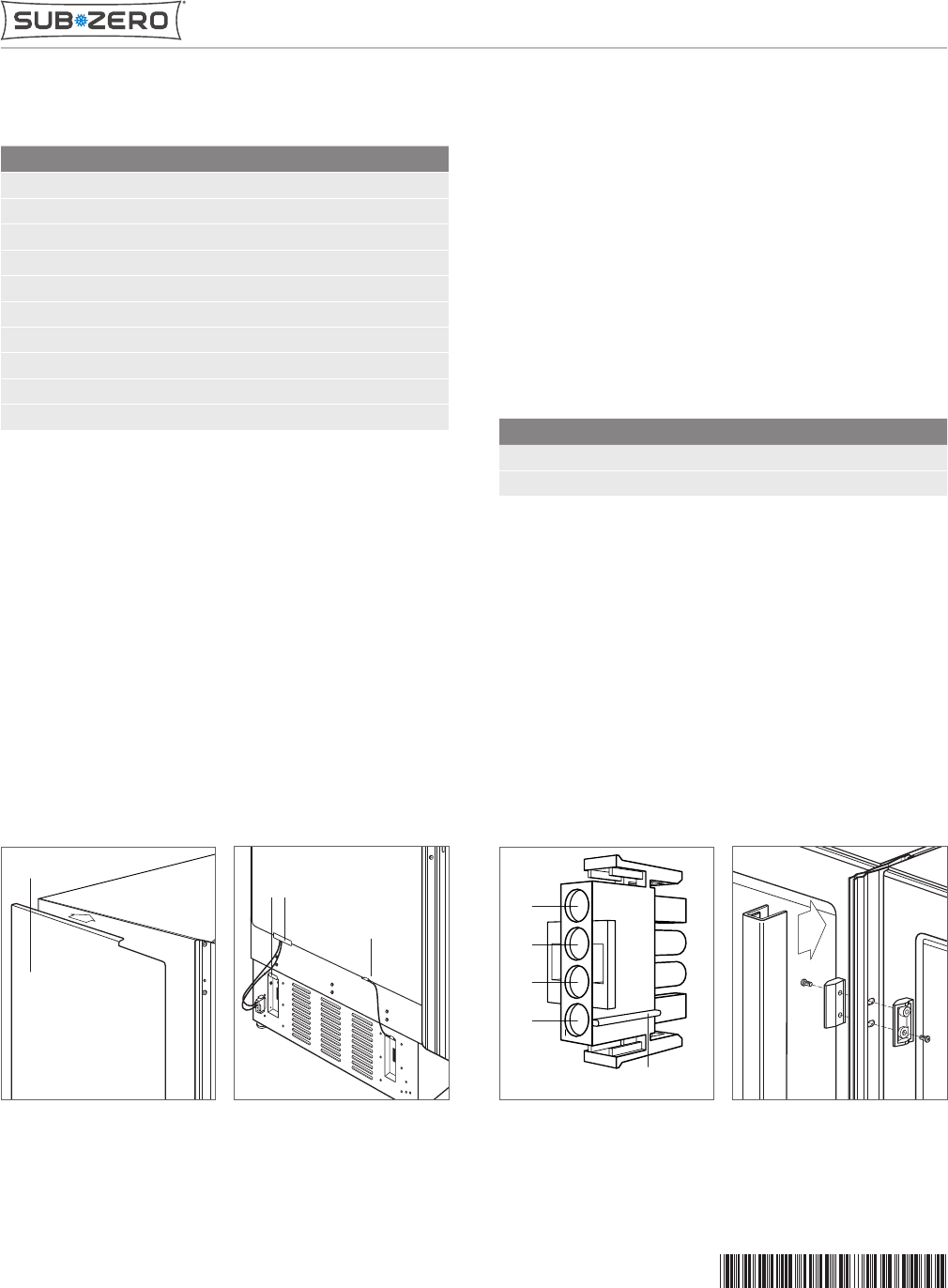

installation instructions

Heater Installation
1) Remove paper backing from tape on the back of the
heater panel.
2) Place heater on the left side of the unit being installed
on the right. Align heater with the top of the unit, then
press rmly to secure. See illustration below.
3) Install edge guard along the upper edge of the
opening and bottom of the heater panel where wires
pass. Edge guard must be trimmed to t.
4) Clip ground wire to the opening and heater panel. See
illustration below.
Page 3 of 3
5) Place leads from heater into the correct pin position
on connector. Pin position is dependent on the model
being installed. Refer to pin placement illustration and
chart below. Place excess wire into opening or secure
to the side of the unit with tape provided.
6) Install tape to the front edge of the heater to prevent
interference when second unit is installed.
7) Install unit into the right side of the opening, then
install the left.
HEATER
Heater placement.
Electrical connection.
EDGE
GUARD
GROUND
WIRE
4
3
2
1
PIN ONE
REFERENCE
Pin placement.
Clip installation.
Model Wire Placement
All Refrigerator 2, 4
All Freezer, Combination 1, 2
Contents
Qty Description
1 Heater
2 Trim, edge guard
1 Plug, 4-pin
1 Tape, black
4 Clip, center
4 Screw, #8 x
1
/2"
1 Trim, center
1 Wire, ground
2 Bracket, center
1 Instructions
Drawer Models – Dual Installation
subzero.com 800.222.7820
7023664
7023664 REV-A 10/2012
Center Trim Installation
Remove existing center trim from each unit and install the
two center brackets, provided. Secure side trim using the
two sets of clips and screws provided. Refer to the
illustration below. If using a power drill, set to lowest
torque setting to ensure screws do not strip out inside clips.
Align center trim with clips, verify the top of the trim is
aligned with the top of the opening, then press into position.
