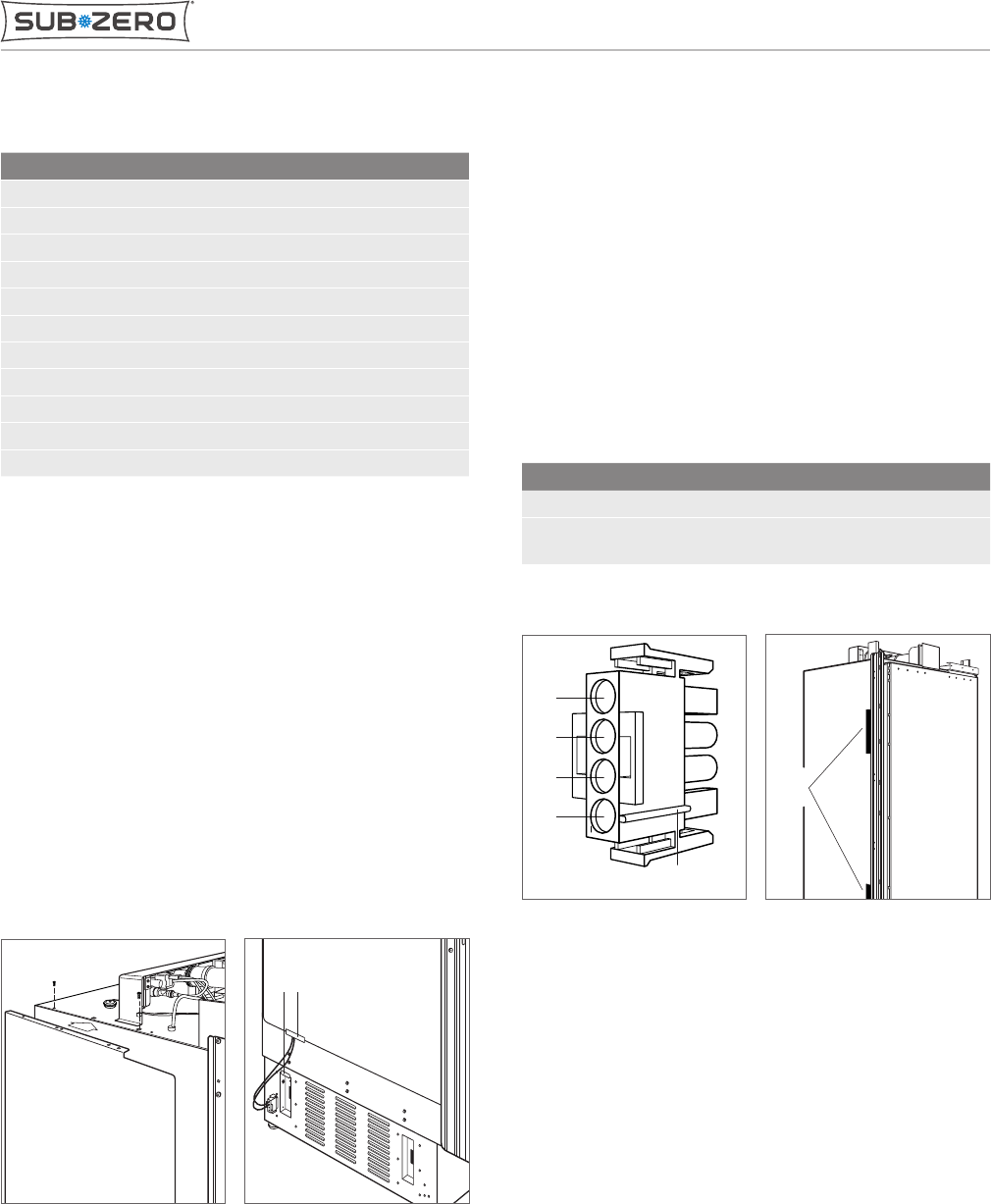

installation instructions

Heater Installation
1) Insert a plastic grommet in the front square hole along
the top edge of the unit, then tap into position.
2) Remove the paper backing from the tape on the back
of the heater.
3) Place heater panel on the left side of the unit being
installed on the right, insert two screws along the
top edge, then press rmly to secure. See illustration
below.
4) Install edge guard along the upper edge of the
opening and bottom of the heater panel where wires
pass. Edge guard must be trimmed to t.
Page 1 of 3
5) Place leads from heater into the correct pin position
on connector. Pin position is dependent on the model
being installed. Refer to pin placement illustration and
chart below. Place excess wire into opening or secure
to the side of the unit with tape provided.
6) Install tape to the front edge of the heater to prevent
interference when second unit is installed. Refer to the
illustration below.
7) Install unit into the right side of the opening, then
install the left.
Heater placement.
Electrical connection.
EDGE
GUARDS
4
3
2
1
PIN ONE
REFERENCE
Pin placement.
Secure heater.
TAPE
Model Wire Placement
All Refrigerator, Wine (Single Door) 2, 4
All Freezer, Combination and
Wine (Door and Drawers)
1, 2
Contents
Qty Description
1 Heater
1 Grommet, plastic
2 Screw, #8–18 x
5
/8"
2 Trim, edge guard
1 Plug, 4-pin
2 Tape, black
1 Bracket, top
8 Clip, center
8 Screw, #8 x
1
/2"
1 Trim, center
1 Instructions
Tall and Column Models – Dual Installation
subzero.com 800.222.7820
