Model Material
Substitution

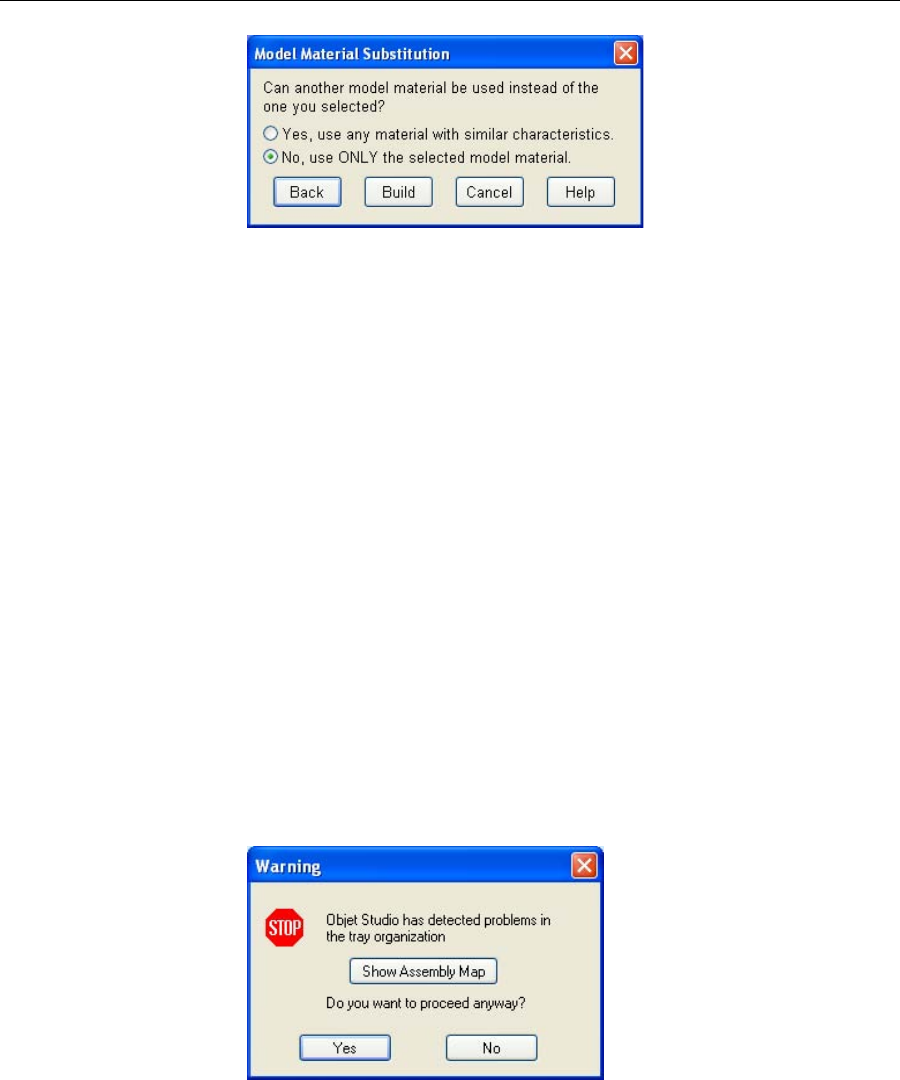

Figure 5-54: Model Material Substitution dialog box
Ifyouallowtheuseofsubstitutemodelmaterials,theprinterwilluse
differentmaterialswhose characteristics(strength,flexibility,etc.)are
similartothoseofthematerialyouassignedtotheobjectwhen
designingthebuildtray—underthefollowingconditions:
• Thematerialyouassignedisnotinstalledintheprinteratthetime
ofprinting.
Inthiscase,thetrayisprintedwitheitheroneortwosubstitute
materials(dependingonthematerialsinstalledintheprinteratthe
timeofprinting).Ifpossible,HighSpeedmodeisused.
• Inadditiontothematerialyouselected,thereisanother(similar)
materialinstalledintheprinteratthetimeofprinting.
Inthiscase,HighSpeedmodeisused,byprintingwithamixtureof
thetwomaterials(asiftheywerethesamematerial).
4. Click
Build.
Ifthebuild‐trayfilehasnotbeensaved,theSaveAsdialogboxopens
foryoutosaveitnow.
ObjetStudiochecksifthereisaproblemwiththepositioningofobjects
onthetray.Ifso,theaffectedobjectsaredisplayedwithspecialcolors
(seefigure5‐49onpage 5‐32),andthefollowingwa
rningmessage
appears.
Figure 5-55: Tray validation warning
• TocanceltheBuildcommandsoyoucancorrecttheproblem,click
No.
