DXIFS-160/RAID User's Guide - Rev. B00 StorCase Technology, Inc.
Configuration 17

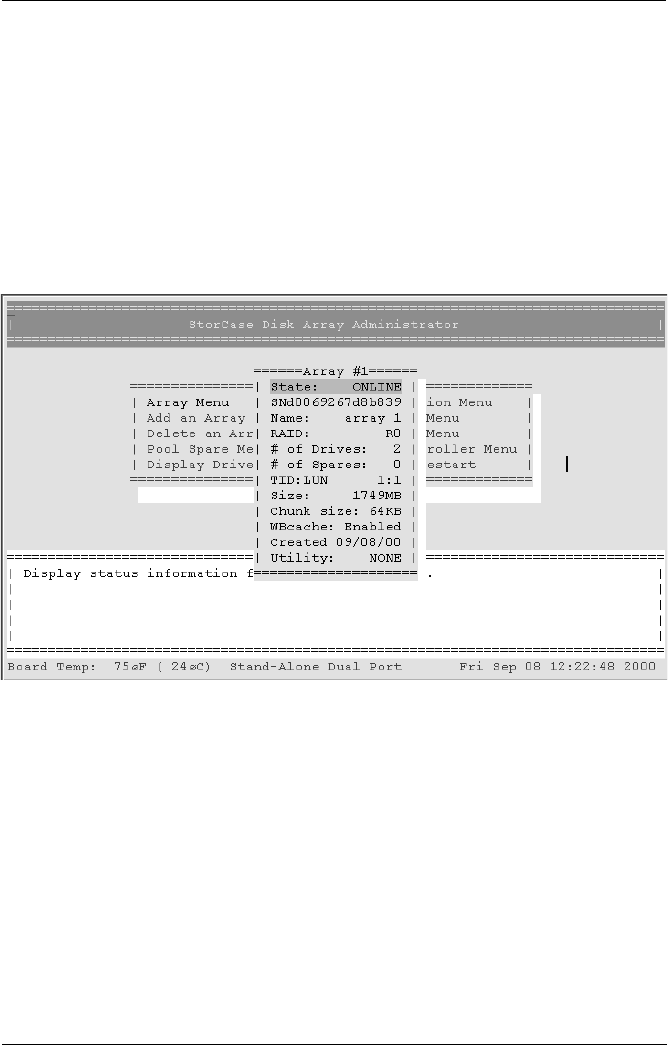

Figure 10: Array Status Screen
Size - Size of the entire array (expressed in MB or GB for arrays > 10GB)
Chunk size - The array's stripe depth per device.
WBcache - Displays the status of the writeback cache (enabled or disabled).
Created - Date array was created.
Utility - Utility Running - None, Verify, Reconstruct, Expand, or Initialize
Drive Status
Use the é and ê keys to scroll through the drives. These are the drives that are currently
members of the array. The screen displays the channel number (back-end disk bus number),
the target ID for that drive, and the up/down status of the drive. The controller does not display
a channel or ID for missing drives.
