12 Configuration
StorCase Technology, Inc. DXIFS-160/RAID User's Guide - Rev. B00
NOTE: Factory default is set to S.Port0.
S.Port0 = External Monitoring
S.Port1 = RAID Monitoring (Use this setting for accessing the RAID Controller
Module via the UIM Serial Port)

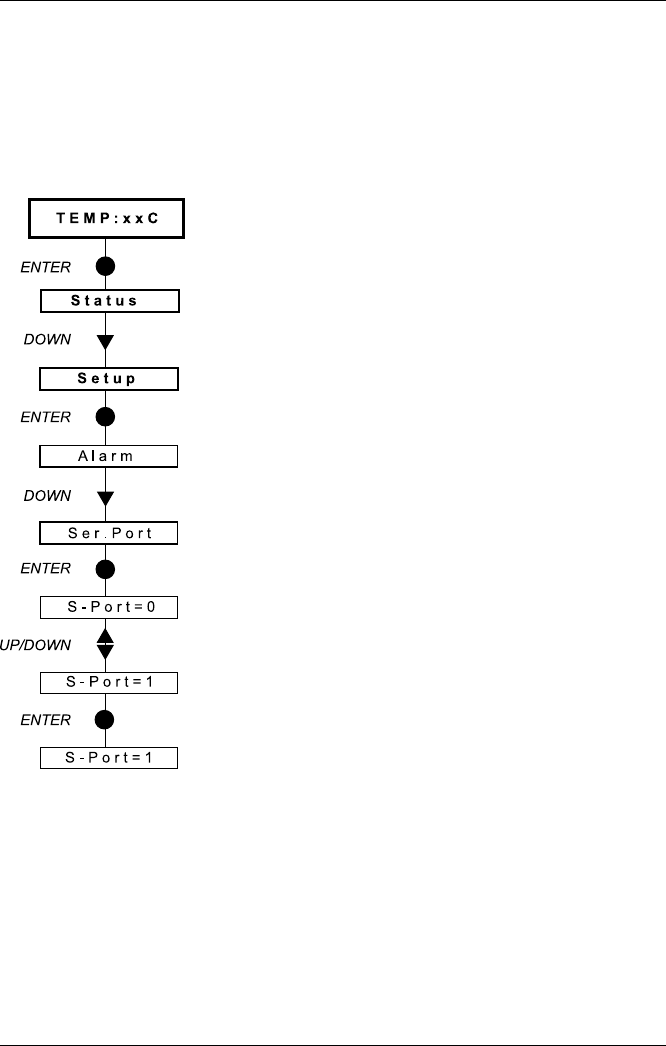

1. Press ENTER at the Default Display so that
display = Status.
2. Press DOWN until display = Setup.
3. Press ENTER until display = Alarm.
4. Press DOWN until display = Ser.Port
5. Press ENTER until display = S-Port0 (Factory
Default). This is the current serial port set-up.
6. Press UP or DOWN to change the serial port
option to S-Port1.
7. Press ENTER to accept the change. The RAID
ControllerModule can now be accessed via the
UI Module serial port.
To access the Administrator Utility via the UI Module RS-232 serial port, the user must first
configure the Serial Port Set-Up in the UI Module (see below).
Refer to the InfoStation User's Guide (specifically, sections "InfoStation User Interface" and
"Serial Port Set-Up") for further information.
