TL1431 Schematic diagrams
Doc ID 5286 Rev 5 3/18
1 Schematic diagrams

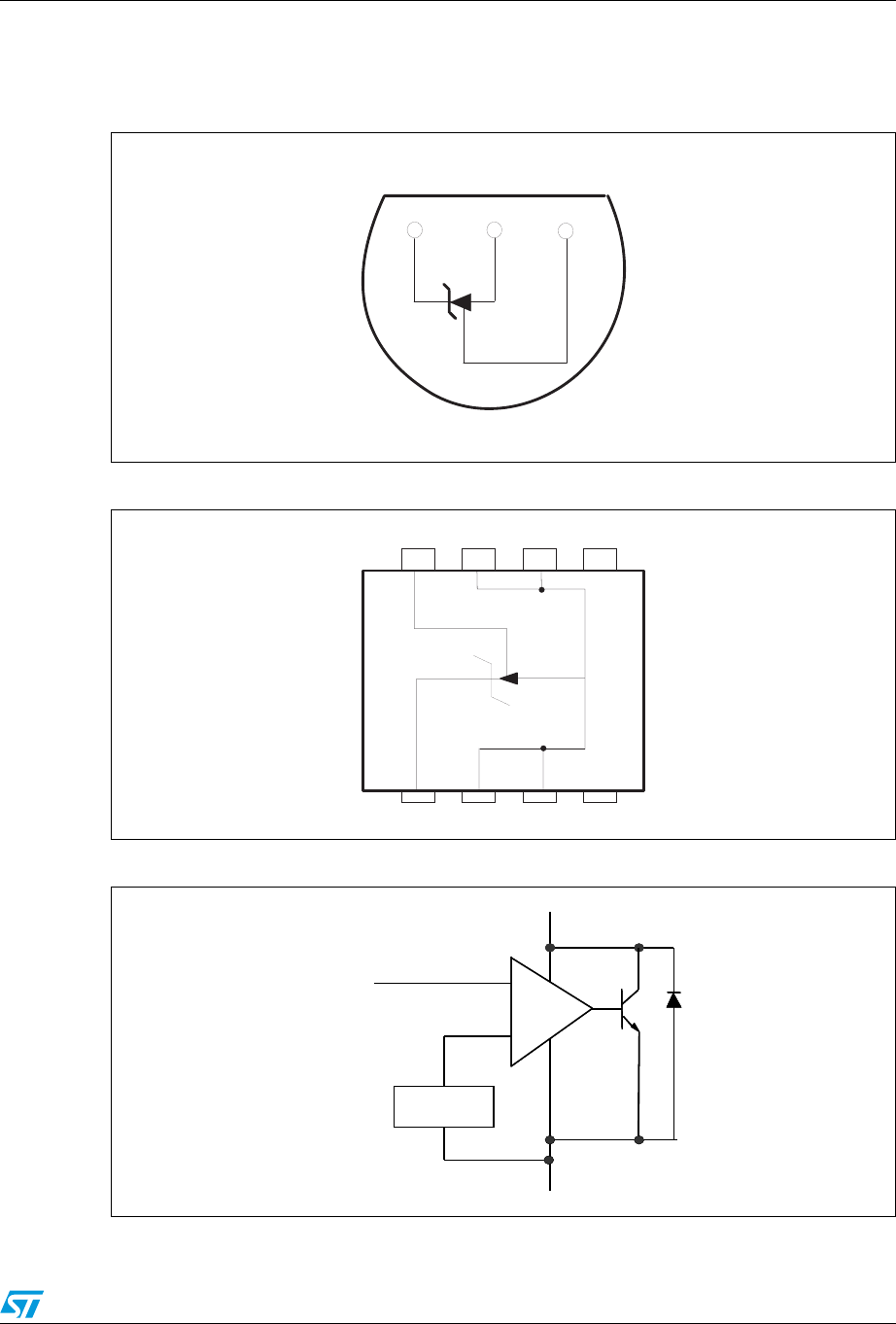

Figure 1. TO92 pin connections (top view)
Figure 2. SO-8 pin connections (top view)
Figure 3. TL1431 block diagram
Cathode
Anode
Reference
123
8765
1234
1 - Cathode
2 - Anode
3 - Anode
4 - N.C.
5 - N.C.
6 - Anode
7 - Anode
8 - Reference
Vref
Cathode
Anode
+
-
Vref
Vref
Cathode
Anode
+
-
Vref
