April 2014 DocID5387 Rev 11 1/10
STPS8H100
High voltage power Schottky rectifier
Datasheet - production data
Features
• Negligible switching losses
• High junction temperature capability
• Low leakage current
• Good trade off between leakage current and
forward voltage drop
• Insulated package:
– TO-220FPAC
Insulating voltage = 2000 V AC
Typical package capacitance = 12 pF
• Avalanche capability specified
Description
Schottky barrier rectifier designed for high
frequency compact switched mode power
supplies such as adaptators and on board DC/DC
converters.

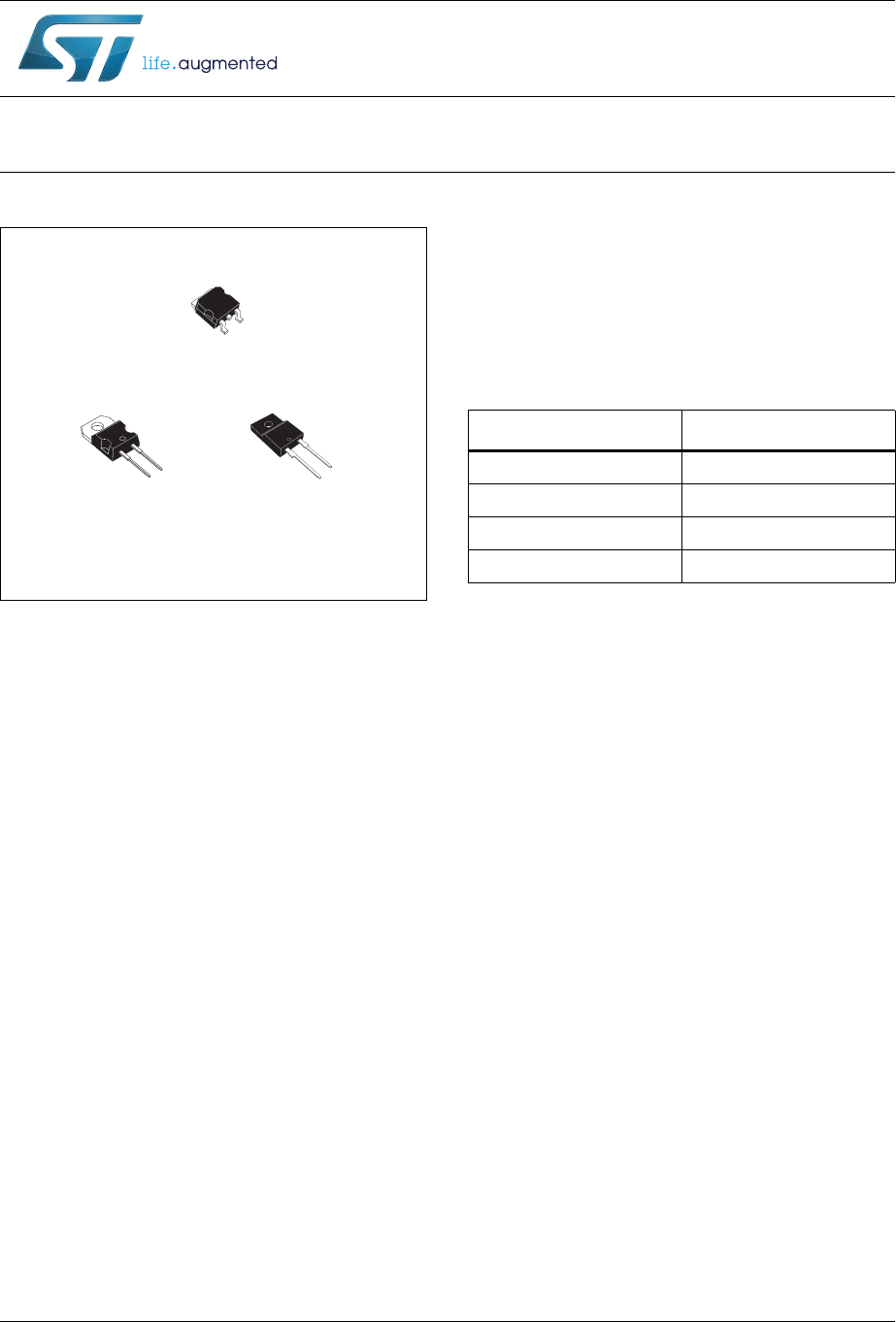

K
A
NC
K
A
K
A
D
2
PAK
STPS8H100G
TO-220FPAC
STPS8H100FP
TO-220AC
STPS8H100D
Table 1. Device summary
Symbol Value
I
F(AV)
8 A
V
RRM
100 V
T
j
(max) 175° C
V
F
(max) 0.58 V
www.st.com
