N Turn the bar over – every time you
sharpen the chain and every time
you replace the chain – this helps
avoid one-sided wear, especially at
the nose and underside of the bar.
N Regularly clean the oil inlet hole (1),
the oilway (2) and the bar
groove (3).
N Measure the groove depth – with
the scale on the filing gauge (special
accessory) – in the area used most
for cutting.
If groove depth is less than specified:
N Replace the guide bar.
The drive link tangs will otherwise
scrape along the bottom of the groove –
the cutters and tie straps will not ride on
the bar rails.
Remove shroud
The shroud catch may vary depending
on the version.
Version A
N Use a suitable tool to open the catch
by turning it 90° to the left
N Lift off the shroud
Version B
N Turn lever 90" to the left
N Lift off the shroud
Refitting the shroud
Install parts in reverse order.

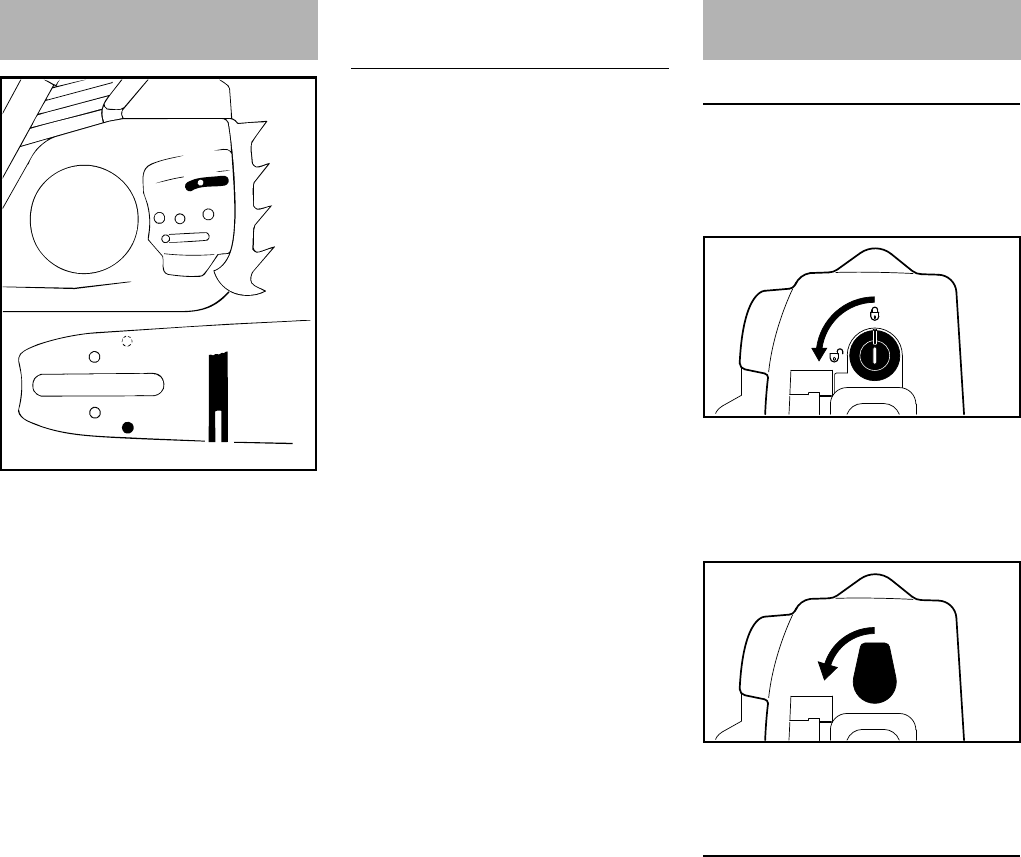

Taking Care of the Guide
Bar
2
3
1
143BA026 KN
Chain type Pitch Minimum
groove
depth
Picco 3/8" P 0.20"
(5.0 mm)
Rapid 1/4" 0.16"
(4.0 mm)
Rapid 3/8"; 0.325" 0.24"
(6.0 mm)
Rapid 0.404" 0.28"
(7.0 mm)
Shroud
143BA057 KN
143BA056 KN
