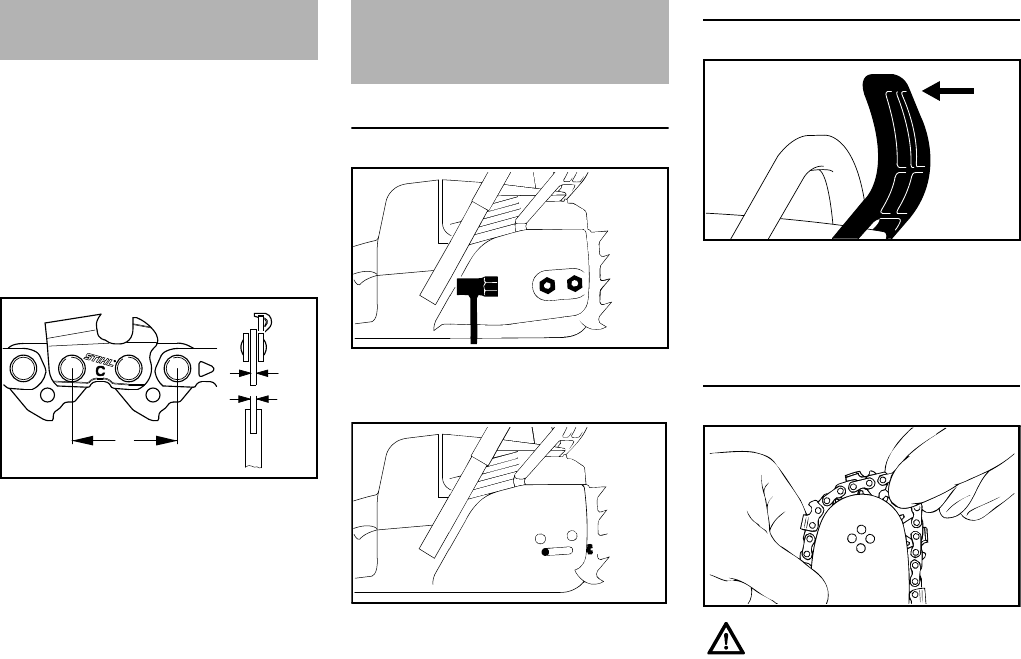

A cutting attachment consists of the saw
chain, guide bar and chain sprocket.
The cutting attachment that comes
standard is designed to exactly match
the chain saw.
– The pitch (t) of the saw chain (1),
chain sprocket and the nose
sprocket of the Rollomatic guide bar
must match.
– The drive link gauge (2) of the saw
chain (1) must match the groove
width of the guide bar (3).
If non-matching components are used,
the cutting attachment may be damaged
beyond repair after a short period of
operation.
Removing the chain sprocket cover
N Unscrew the nut and remove the
chain sprocket cover.
N Turn the screw (1)
counterclockwise until the
tensioning nut (2) butts against the
left end of the housing slot.
Disengage the chain brake.
N Pull the hand guard towards the
front handle until there is an audible
click – the chain brake is
disengaged.
Fitting the chain
N Fit the chain – start at the bar nose.
Cutting Attachment
001BA191 KN
1
2
3
a
t = a : 2
Mounting the Bar and
Chain (front chain
tensioner)
143BA034 KN
1
2
207BA009 KN
Wear work gloves to protect your
hands from the sharp cutters.
