N Insert a suitable tool through the
opening in the union nut to press
down the tab.
N Rotate the union nut in the direction
of the arrow as far as the stop.
N Remove the blower tube.

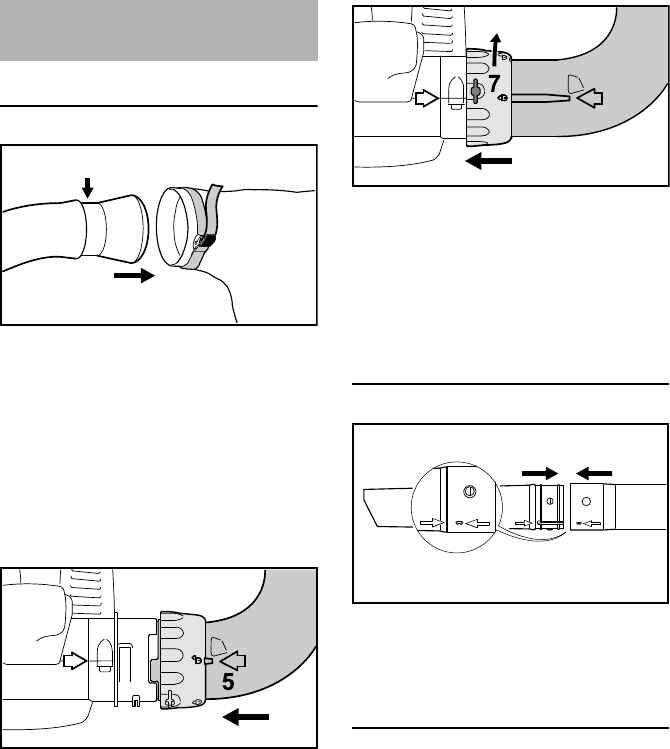

Mounting the Elbow
N Push the elbow (1) into the catcher
bag (2) as far as the mark (smaller
arrow).
N Tighten strap (3) on catcher bag
and press down the tab (4).
NOTICE
Make sure the zipper on the catcher bag
is closed.
N Line up the arrows (5).
N Position the union nut so that the
symbol ‚ is in line with the arrows.
N Push the elbow into the recess in
the fan housing stub (6) as far as
stop.
N Push the union nut (7) over the fan
housing stub as far as stop.
N Rotate the union nut (7) in direction
of arrow until symbol ƒ is in line
with the arrows – union nut snaps
audibly into position.
Assembling the Suction Tube
N Line up the arrows on the suction
tube and extension tube. Push
together and lock in position.
Mounting the Suction Tube
N Shut down the engine.
Assembling the Vacuum
Shredder
