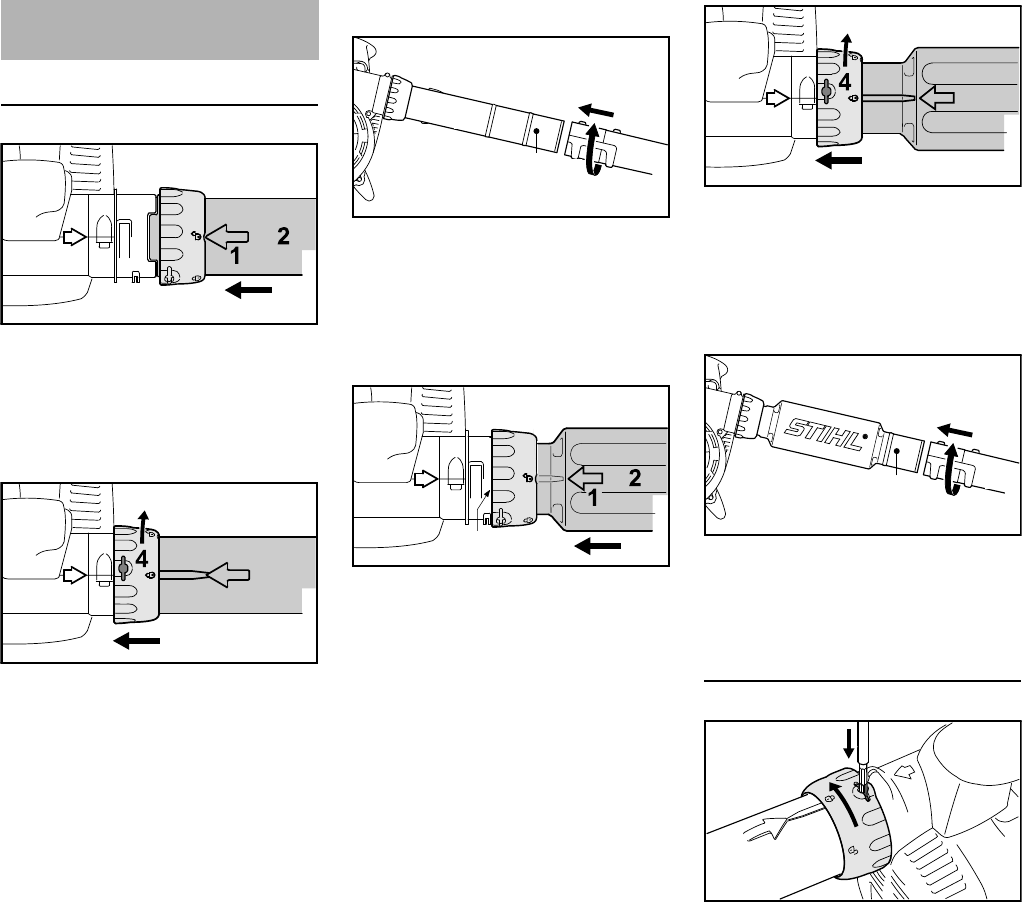

Mounting the Blower Tube
N Line up the arrows (1).
N Position the union nut so that the
symbol ‚ is in line with the arrows.
N Push the blower tube (2) into the fan
housing stub (3) as far as stop.
N Push the union nut (4) over the fan
housing stub as far as stop.
N Rotate the union nut (4) in direction
of arrow until symbol ƒ is in line
with the arrows – union nut snaps
audibly into position.
BG 56, BG 86, SH 56, SH 86
N Push nozzle (5) onto blower
tube (2) as far as lug (6),
position (a) (long) or position (b)
(short), and rotate nozzle in
direction of arrow to lock in position.
BG 66
N Line up the arrows (1).
N Position the union nut so that the
symbol ‚ is in line with the arrows.
N Push the blower tube (2) into the fan
housing stub (3) as far as stop.
N Push the union nut (4) over the fan
housing stub as far as stop.
N Rotate the union nut (4) in direction
of arrow until symbol ƒ is in line
with the arrows – union nut snaps
audibly into position.
N Push nozzle (5) in position (a) onto
the blower tube (2) as far as lug (6)
and rotate in direction of arrow to
lock in position.
Removing the Blower Tube
N Shut down the engine.
Assembling the Blower
