WARNING
Place the machine on a firm and level
surface for the following work.

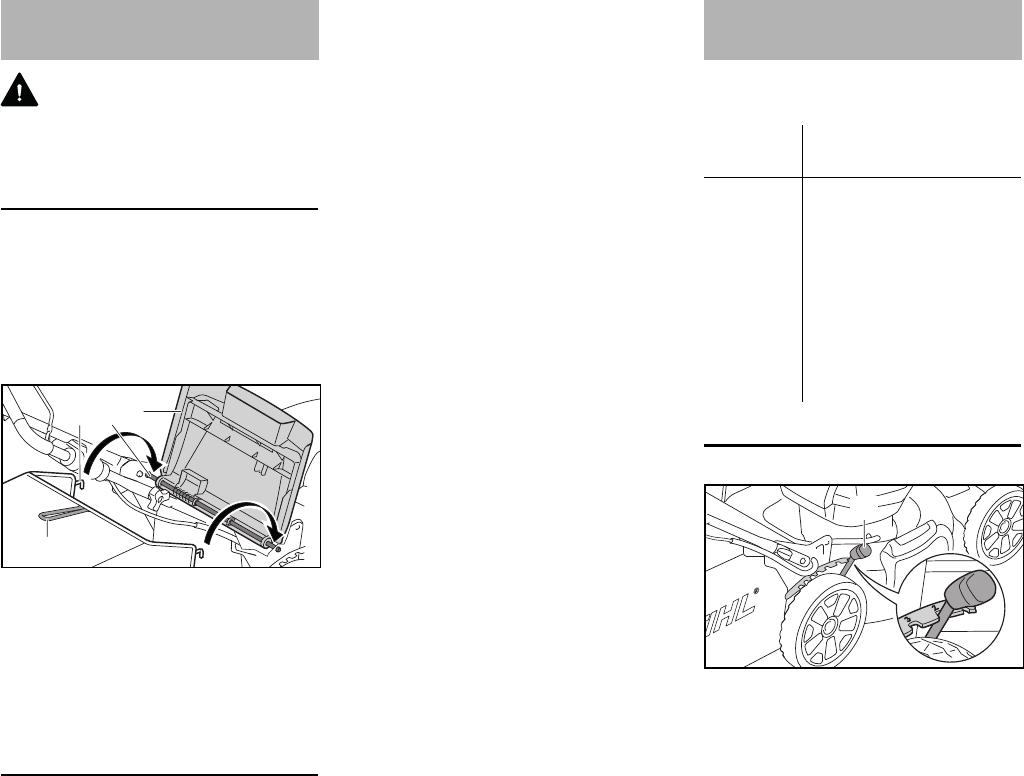

Fitting the Grass Box
N Switch off the machine.
N Remove the mulch insert, see
“Removing the Mulch Insert”.
N Remove the side discharge, see
“Removing the Side Discharge”.
N Open the discharge flap (1) and
hold it in position.
N Hold grass box by the handle (2)
and engage the hooks (3) on the rod
(4).
N Close the discharge flap (1).
Emptying the Grass Box
N Switch off the machine.
N Open the discharge flap (1) and
hold it in position.
N Hold grass box by the handle (2)
and unhook it upwards.
N Close the discharge flap (1).
N Empty the grass box.
Different cutting heights can be
selected.
Adjusting Cutting Height
Increase cutting height:
N Pull lever (1) to rear of mower.
Reduce cutting height:
N Pull lever (1) to front of mower.
The selected cutting height is shown.
Grass Box
0000-GXX-2645-A0
2
3
41
Adjusting Cutting Height
Setting Cutting
height
1 35 mm (1.4 in)
2 43 mm (1.7 in)
352mm(2in)
4 60 mm (2.4 in)
5 71 mm (2.8 in)
679mm(3in)
7 90 mm (3.5 in)
0000-GXX-2646-A0
1
