Fault Cause Remedy
The circuit breaker (fuse) or the resi‐
dual current device tripped. The circuit
is electrically overloaded or defective.
► Find and fix the cause of the circuit
breaker or RCD tripping. Insert the
circuit breaker (fuse) or residual cur‐
rent device.
► Switch other power consumers in
the same circuit off.
The fuse protection of the socket is too
low.
► Insert the plug of the extension
cable into a correctly fused socket,
19.1.
The overload protection has triggered. ► Clean the lawn scarifier.
► Reduce the working depth.
► Reset the overload protection.
The roller is blocked. ► Reduce the working depth.
► Clean the lawn scarifier.
19 Specifications
19.1 STIHL RLE 240.0 Lawn Scari‐
fier
–
Power supply: See rating plate
–
Frequency: See rating plate
–
Power input: 1500 W
–
Weight: 16 kg
–
Maximum grass catcher box capacity: 50 l
–
Working width: 34 cm
–
Speed: 4100 rpm
–
Working depth: Infinitely variable, adjustment
range 15 mm
–
Electrical protection class: II
–
Electrical type of protection: IPX4 (protection
against high levels of dust but not dust proof;
splash proof from all angles)

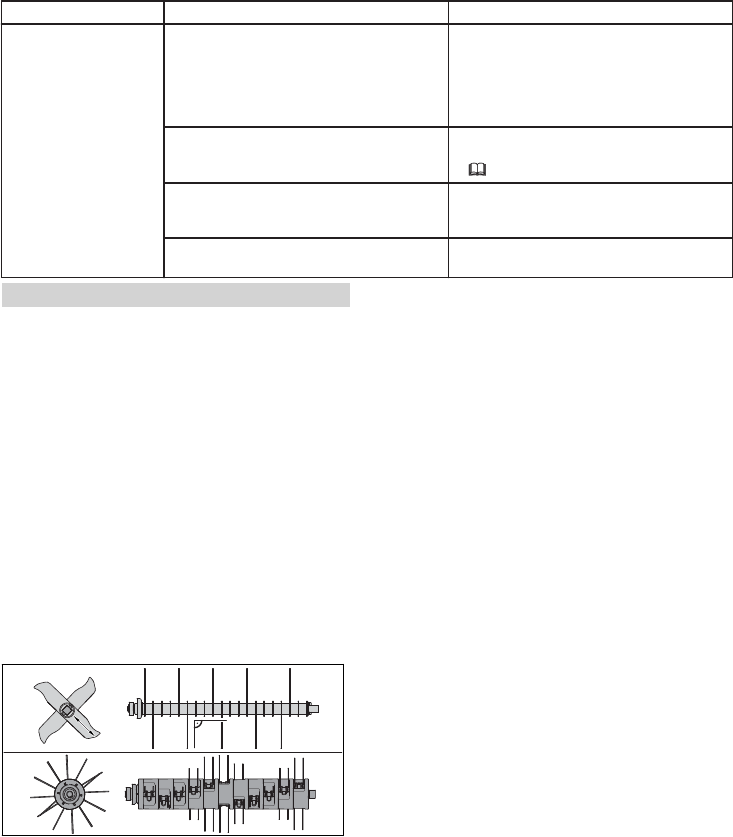

19.2 Rollers
1
2
0000-GXX-B685-A0
Scarifying roller
–
20 fixed blades
Combing roller
–
11x2 moving spring-tines
19.3 Extension Cords
If an extension cord is used, it must have a
ground wire and the wire gage of its conductors
must meet the following minimum requirements –
depending on the line voltage and length of the
extension cord:
If rated voltage on the rating label is 220V to
240V:
–
Cord length up to 20 m: AWG 15 / 1.5 mm²
–
Cord length 20 m up to 50 m: AWG 13 /
2.5 mm²
If rated voltage on the rating label is 100 V to
127 V:
–
Cord length up to 10 m: AWG 14 / 2.0 mm²
–
Cord length 10 m up to 30 m: AWG 12 /
3.5 mm²
19.4 Sound Values and Vibration
Values
The K value for the sound pressure level is
3 dB(A). The K value for the sound power level is
4.7 dB(A). The K value for the vibration value is
2.08 m/s².
–
Sound pressure level L
pA
measured in accord‐
ance with EN 50636-2-92: 79 dB(A)
–
Guaranteed sound power level L
WAd
meas‐
ured in accordance with 2000/14/EC: 95 dB(A)
–
Vibration value a
hw
measured in accordance
with EN 20643, EN 50636-2-92, handlebar:
5.2 m/s²
The indicated vibration values were measured in
accordance with a standardised test method and
can be used for the purpose of comparing electri‐
cal appliances. The actual vibration values that
occur may deviate from the indicated values,
depending on the type of application. The indica‐
ted vibration values can be used for an initial
assessment of the vibration load. The actual
vibration load must be assessed. Times during
which the electrical appliance is switched off,
along with times during which it is switched on
