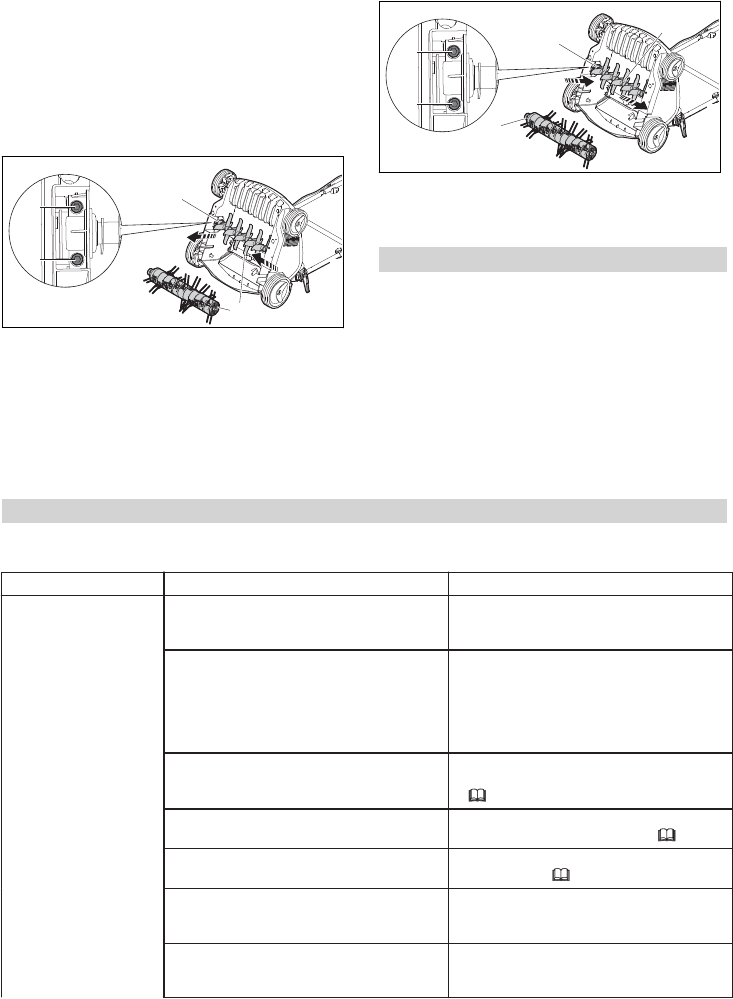

16.2 Removing and Attaching the
Roller
16.2.1 Detaching the Roller
► Switch the lawn scarifier off and detach the
extension cable connector from the mains plug
of the lawn scarifier.
► Upend the lawn scarifier.
2
3
1
1
0000-GXX-B383-A0
► Unscrew screws (1).
► Remove installed roller (3) together with
holder (2).
16.2.2 Attaching the Roller
► Switch the lawn scarifier off and detach the
extension cable connector from the mains plug
of the lawn scarifier.
► Upend the lawn scarifier.
3
2
4
1
1
0000-GXX-B681-A0
► Insert scarifying roller (2) or combing roller (4)
together with holder (3) into the mount.
► Install screws (1) and tighten firmly.
17 Repairing
17.1 Repairing the Lawn Scarifier
The user should not repair the lawn scarifier or
rollers themselves.
► If the lawn scarifier or rollers are damaged: do
not use the lawn scarifier or rollers and consult
a STIHL specialist dealer.
► If warning signs are illegible or damaged: have
the warning signs replaced by a STIHL spe‐
cialist dealer.
18 Troubleshooting
18.1 Remedying Lawn Scarifier Faults
Fault Cause Remedy
The lawn scarifier
does not start when
switched on.
The plug or extension cable connector
are not plugged in.
► Insert the plug and extension cable
connector.
The circuit breaker (fuse) or the resi‐
dual current device tripped. The circuit
is electrically overloaded or defective.
► Find and fix the cause of the circuit
breaker or RCD tripping. Insert the
circuit breaker (fuse) or residual cur‐
rent device.
► Switch other power consumers in
the same circuit off.
The fuse protection of the socket is too
low.
► Insert the plug of the extension
cable into a correctly fused socket,
19.1.
The cross section of the extension
cable is incorrect.
► Use an extension cable with an ade‐
quate cable cross section, 19.3.
The extension cable is too long. ► Use an extension cable with the cor‐
rect length, 19.3.
The engine is overheated. ► Clean the lawn scarifier.
► Allow the lawn scarifier to cool
down.
The lawn scarifier
stops during opera‐
tion.
The plug or extension cable connector
are no longer plugged in.
► Insert the plug or extension cable
connector.
