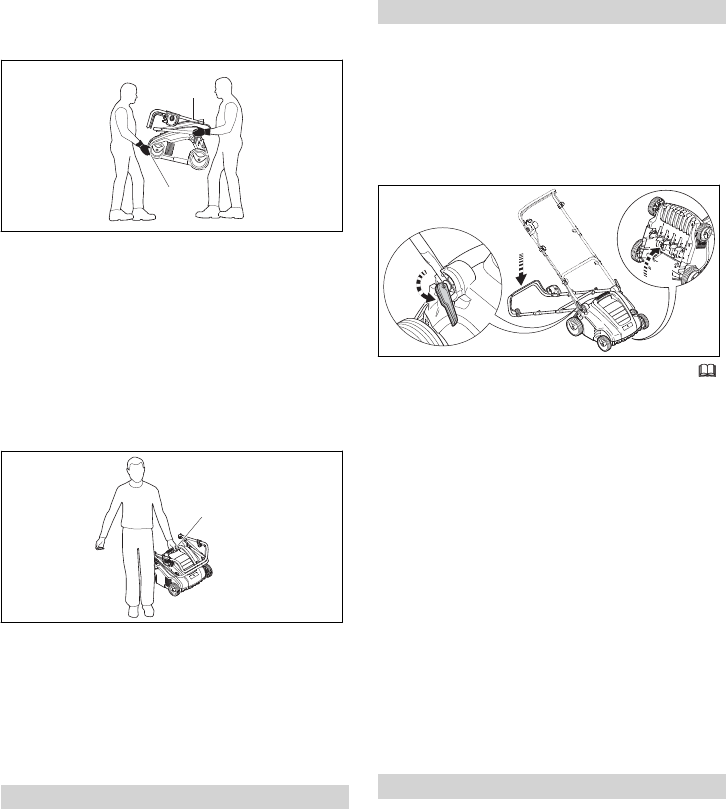

Carrying the lawn scarifier with someone else
with the handlebar folded
2
1
0000-GXX-B683-A0
► Fold in the handlebar.
► One person holds the lawn scarifier at the
front by lower carrying handle (1) using both
hands and another person by the mounts of
lower handlebar (2) using both hands.
► The lawn scarifier must be lifted and carried by
two people.
► Wear work gloves made from resistant mate‐
rial.
Carrying the lawn scarifier alone
1
0000-GXX-B684-A0
► Fold in the handlebar.
► Hold the lawn scarifier by upper carrying han‐
dle (1).
► Lift and carry the lawn scarifier.
Transporting the lawn scarifier in a vehicle
► Secure the lawn scarifier so that it does not tip
over and cannot move.
14 Storing
14.1 Storing the Lawn Scarifier
► Switch the lawn scarifier off and detach the
extension cable connector from the mains plug
of the lawn scarifier.
► Place the lawn scarifier on a level surface.
► Set the transport position.
► Store the lawn scarifier in accordance with the
following conditions:
–
The lawn scarifier is out of reach of children.
–
The lawn scarifier is clean and dry.
15 Cleaning
15.1 Upending the Lawn Scarifier
► Switch the lawn scarifier off and detach the
extension cable connector from the mains plug
of the lawn scarifier.
► Place the lawn scarifier on a level surface.
► Set the transport position.
► Detach the grass catcher box.
2
1
3
0000-GXX-B382-A0
►
Place the handlebar in the lowest position,
7.1.
► Press the handlebar downwards with the left
hand and hold.
► Hold the lawn scarifier at the lower transport
handle with the right hand and upend.
15.2 Cleaning the Lawn Scarifier
► Switch the lawn scarifier off and detach the
extension cable connector from the mains plug
of the lawn scarifier.
► Place the lawn scarifier on a level surface.
► Clean the lawn scarifier with a damp cloth.
► Clean the discharge chute with a soft brush or
a damp cloth.
► Clean the electric contacts on the lawn scari‐
fier with a paintbrush or a soft brush.
► Clean the ventilation slots with a paintbrush.
► Upend the lawn scarifier.
► Clean the area around the roller and the roller
with a soft brush or a damp cloth.
16 Maintenance
16.1 Maintenance Intervals
Maintenance intervals are dependent on the
ambient conditions and the working condi‐
tions.STIHL recommends the following mainte‐
nance intervals:
After every fifth roller change.
► Have the roller fastening screw replaced by a
STIHL specialist dealer.
Annual
► Have the lawn scarifier serviced by a STIHL
specialist dealer.
