Instruction Manual

6.3 Assembling, Attaching and
Detaching the Grass Catcher
Box

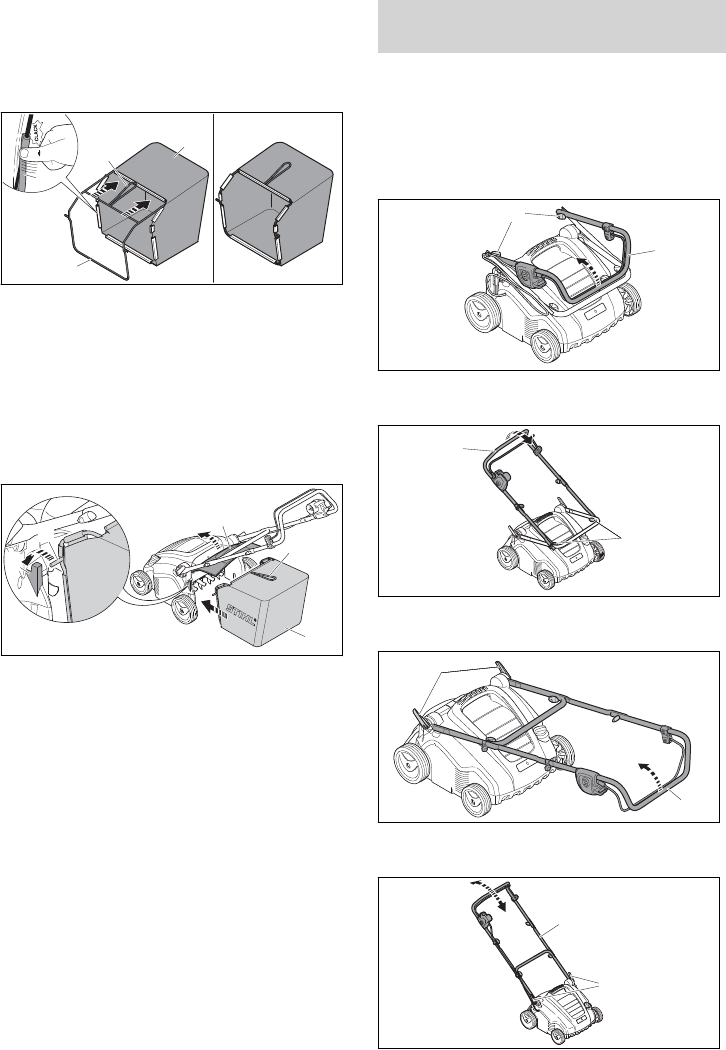

6.3.1 Assembling the Grass Catcher Box
1
2
3
4
0000-GXX-B367-A0
► Pull fabric (1) over frame (2) so that the base
plate is on the bottom and handle (3) is on the
outside of the fabric.
► Press plastic profiles (4) onto the frame.
The plastic profiles engage with a click.
6.3.2 Attaching the Grass Catcher Box
► Switch the lawn scarifier off and detach the
extension cable connector from the mains plug
of the lawn scarifier.
3
2
1
5
4
0000-GXX-B368-A0
► Open discharge flap (1) and hold it open.
► Take hold of grass catcher box (3) by han‐
dle (2) and suspend shaft (5) in mount (4).
► Set down discharge flap (1) on grass catcher
box (3).
6.3.3 Detaching the Grass Catcher Box
► Switch the lawn scarifier off and detach the
extension cable connector from the mains plug
of the lawn scarifier.
► Place the lawn scarifier on a level surface.
► Open the discharge flap and hold it open.
► Remove the grass catcher box upwards by the
handle.
► Close the discharge flap.
7 Adjusting the Lawn Scari‐
fier for the User
7.1 Folding Up and Adjusting the
Handlebar
► Switch the lawn scarifier off and detach the
extension cable connector from the mains plug
of the lawn scarifier.
► Place the lawn scarifier on a level surface.
1
2
0000-GXX-B369-A0
► Fold up upper handlebar (1).
► Tighten wing nuts (2).
4
0000-GXX-B370-A0
3
► Fold up centre handlebar section (3).
► Tighten wing nuts (4).
6
5
0000-GXX-B371-A0
► Open quick-clamping devices (6).
► Fold up handlebar (5) fully.
6
5
0000-GXX-B372-A0
7 Adjusting the Lawn Scarifier for the User English
0478-670-9910-B 27
