N Push the throttle cable (14) into the
retainers (15).

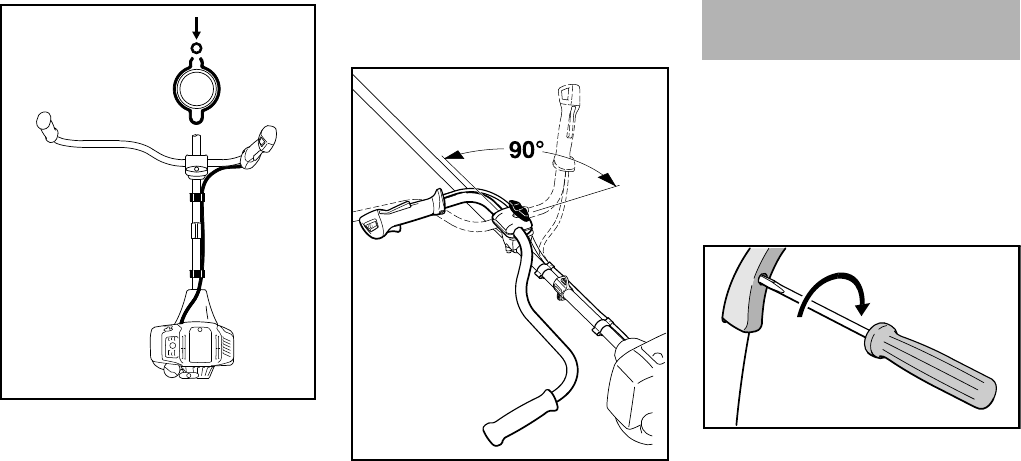

Adjusting the Throttle Cable
N Check adjustment of throttle cable
see chapter on "Adjusting the
Throttle Cable".
Swiveling the handlebar
Transport position
N Loosen the wing screw (3) and
unscrew it until the handlebar (7)
can be rotated.
N Rotate the handlebar 90°
counterclockwise and then swing
the handles down.
N Tighten down the wing screw (3)
firmly.
Working position
N Reverse the sequence described
above to swing the handles up and
turn the handlebar clockwise.
It may be necessary to correct the
adjustment of the throttle cable after
assembling the machine or after a
prolonged period of operation.
Adjust the throttle cable only when the
unit is completely and properly
assembled.
N Set the throttle trigger to the full
throttle position.
N Carefully rotate the screw in the
throttle trigger in the direction of the
arrow until you feel initial resistance.
Then rotate it another half turn in the
same direction.
14
15
0000-GXX-0512-A0
15
14
15
7
3
0000-GXX-0513-A0
Adjusting the Throttle Cable
