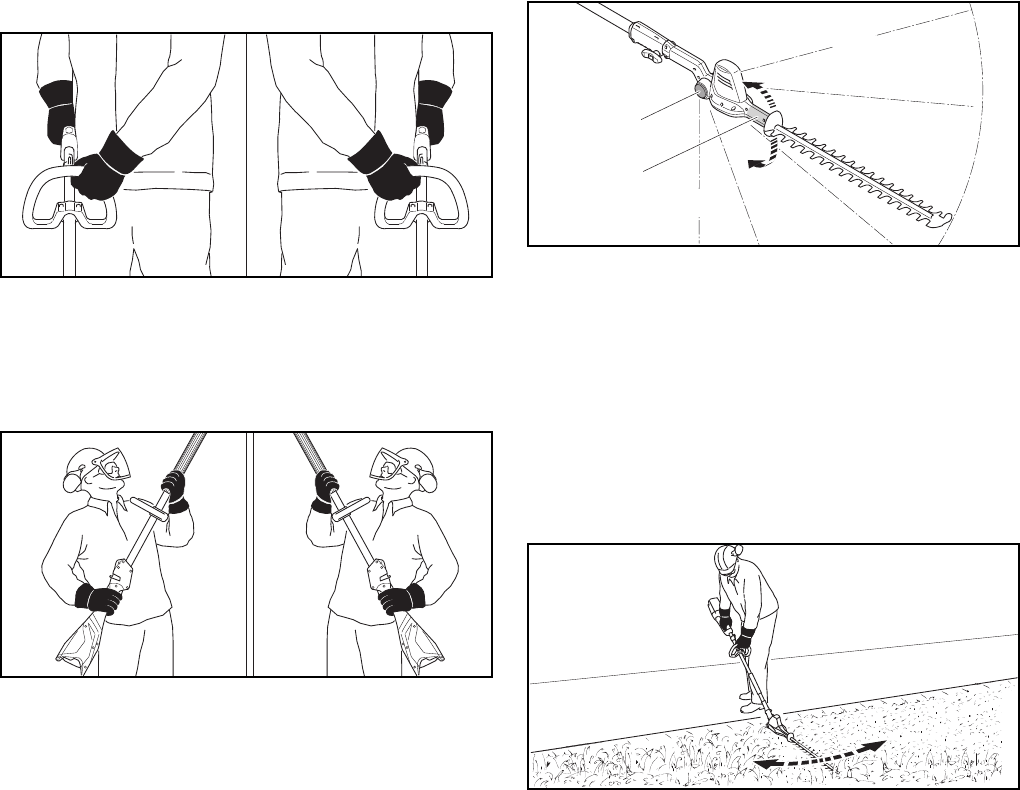

English 11 Operating the Hedge Trimmer
Loop Handle
► Hold the hedge trimmer firmly with one hand on the control
handle - wrap your thumb around the handle.
► Hold the trimmer with the other hand on the loop handle -
wrap your thumb around the loop handle.
Handle Hose
► Hold the hedge trimmer firmly with one hand on the control
handle - wrap your thumb around the handle.
► Hold the hedge trimmer firmly with your other hand on the
handle hose - wrap your thumb around the handle hose.
11.2 Adjusting Angle of Cutter Bar
The angle of the cutter bar can be adjusted to 2 different
positions upwards and 4 different positions downwards to
suit the application and the height and reach of the user.
► Switch off the hedge trimmer and remove the battery.
► Hold the swivel handle (2) firmly.
► Depress the lock button (1) at both sides and hold it there.
► Move the cutter bar to the required angle.
► Release the lock button (1) at both sides.
► Move the swivel handle (2) up and down until the cutter
bar engages.
That completes the adjustment.
11.3 Cutting
Cutting at ground level
► Set the cutter bar to a suitable angle.
► Swing the hedge trimmer back and forth in an arc.
► Walk slowly and steadily forwards.
► If cutting performance deteriorates: Sharpen the cutting
blades.
0000-GXX-4570-A0
0000-GXX-7606-A0
1
90°
45°
2
0000-GXX-7605-A0
0000-GXX-4573-A0
