0478 201 8313 B - EN
22
● Loosen both closure screws (1) until
they turn freely. They remain on the
feed chute.
● Pivot feed chute (2) to the rear and
remove.

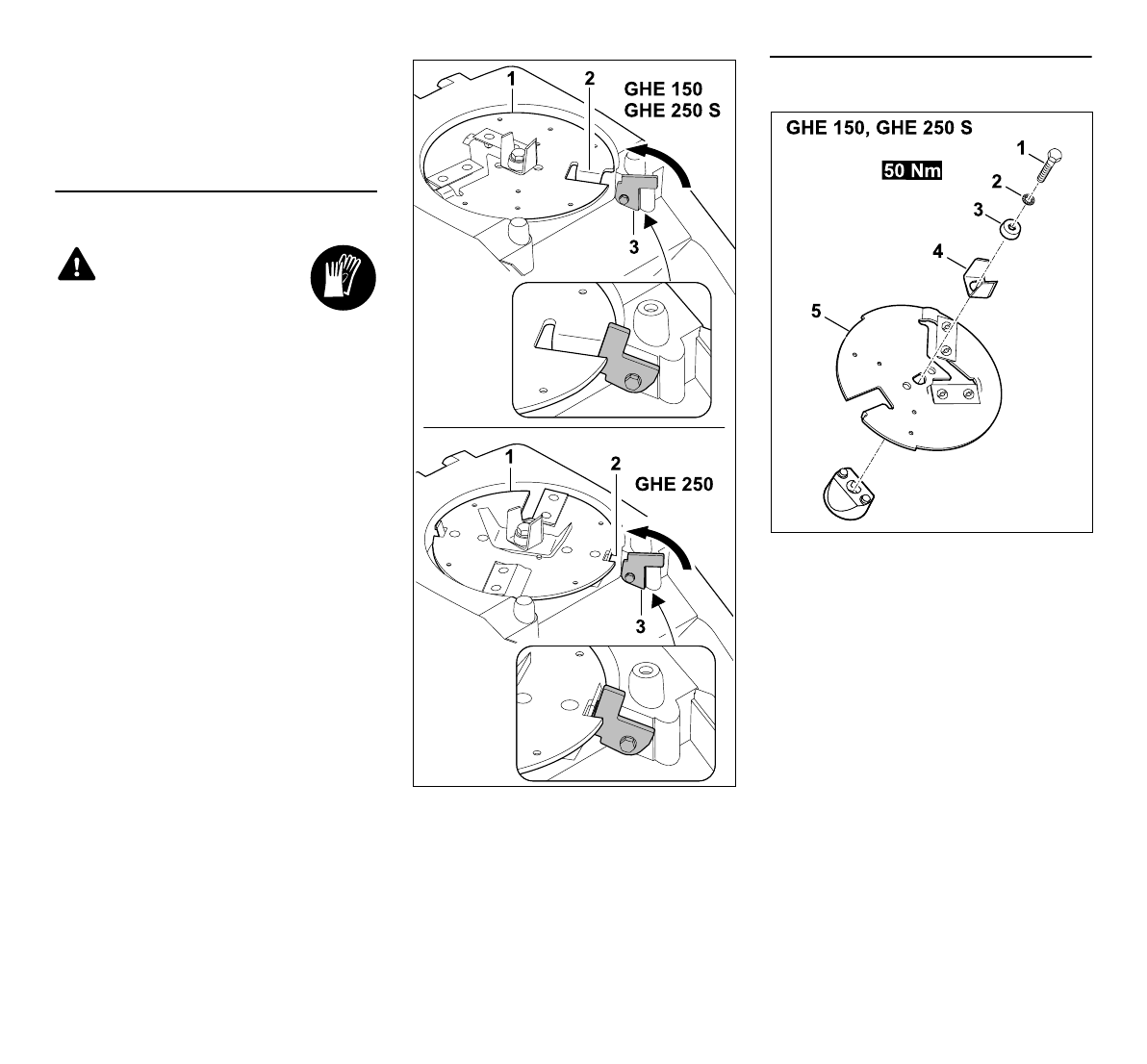

11.4 Locking the blade disc
● Remove the feed chute. (Ö 11.3)
● Turn blade disc (1) until recess (2) is
located in front of locking device (3).
● Fold up locking device (3).
11.5 Removing the blade set
Risk of injury!
Always wear gloves!
Do not touch the blades
until they have come to a
standstill.
