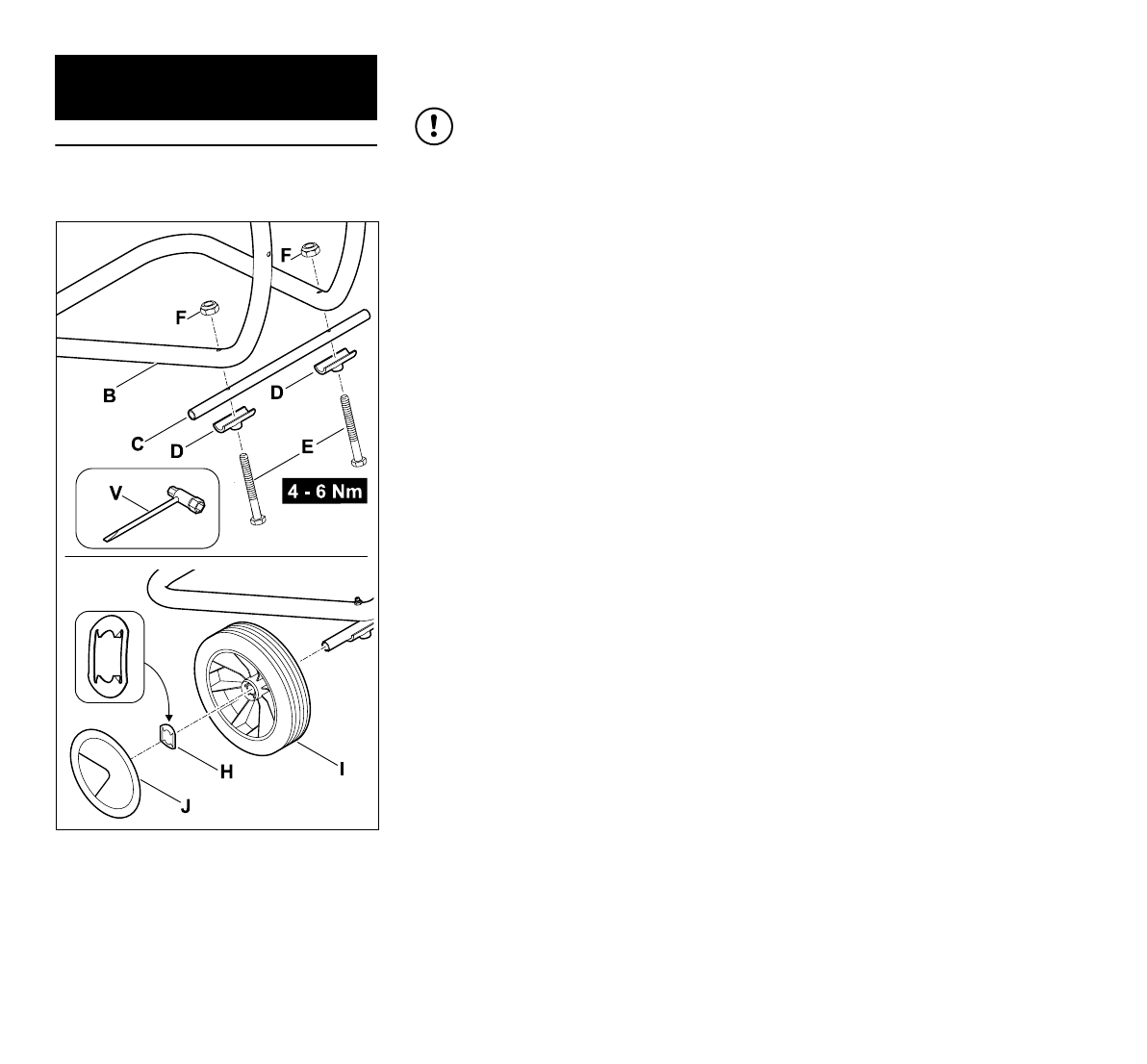

7.1 Attaching the wheel axle and
wheels
● Attach wheel axle (C) with wheel
locks (D), bolts (E) and hexagon
nuts (F) to wheel carrier (B) and tighten
using combination spanner (V)
(4 - 6Nm).
● Push wheels (I) onto the mounted
wheel axle.
● Push quick fastener (H) onto the wheel
axle with the convex side facing
outwards.
● Press wheel caps (J) onto the wheels.
7. Preparing the machine for
operation
Quick fasteners must be pushed
onto the wheel axle only to the
extent that the wheels can still turn
freely.
Quick fasteners are not reuseable
following removal.
