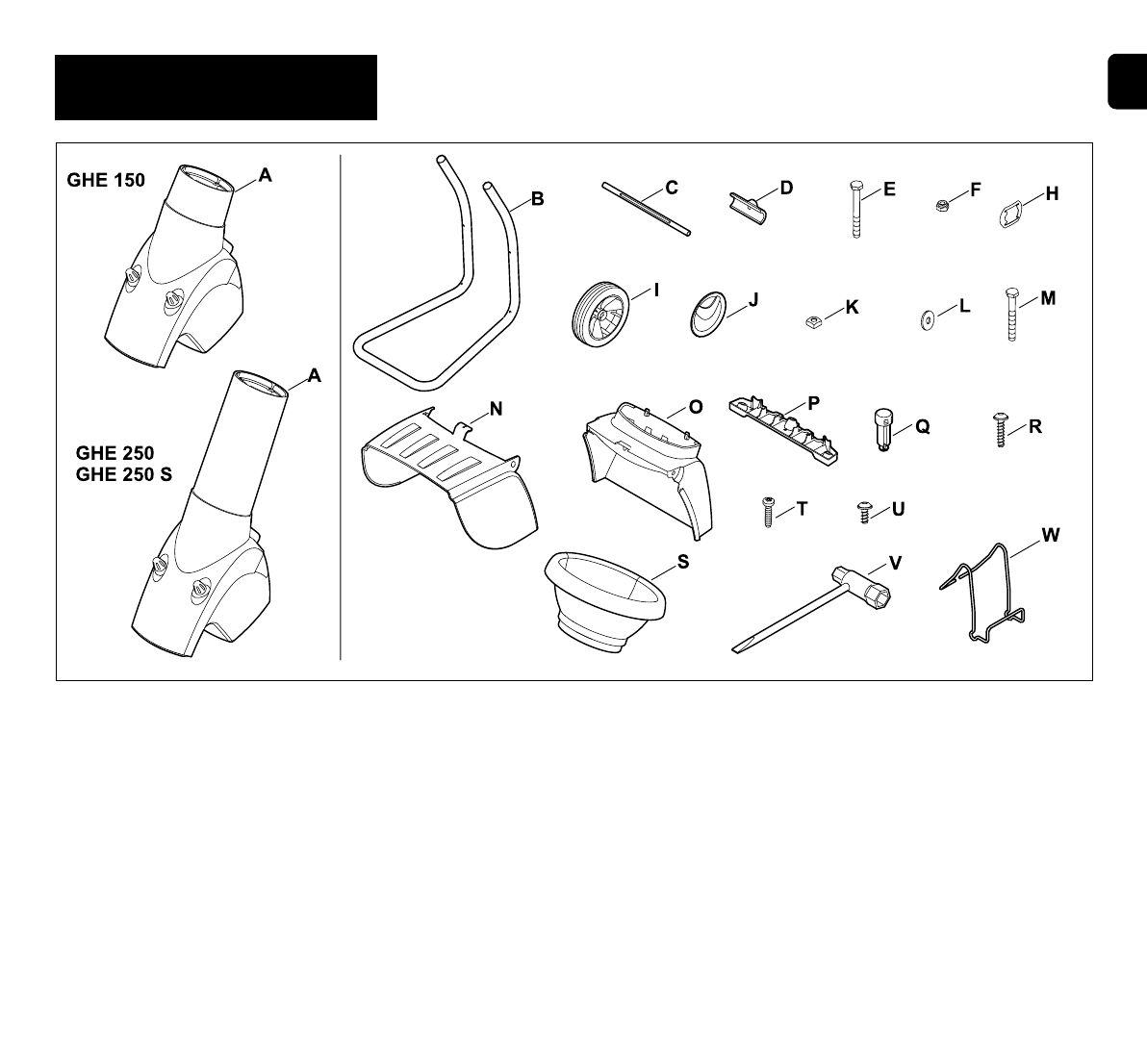

6. Standard equipment
Item Designation Qty.
A Basic unit with lower chute 1
B Wheel carrier 1
C Wheel axle 1
D Wheel lock 2
E Bolt, M6 x 55 2
F Hexagon nut 2
H Quick fastener 2
I Wheel 2
J Wheel cap 2
K Square nut 2
L Washer Ø 17 mm 4
M Bolt, M6 x 50 2
N Discharge flap 1
O Ejection chute extension 1
P Strip 1
Q Pin 2
R Torx screw P5 x 20 3
S Upper chute 1
T Safety screw 4
U Torx screw P5 x 10 2
Item Designation Qty.
V Combination spanner 1
W Cable clip 1
x Instruction manual 1
